What is the fuse box under dash and why it matters

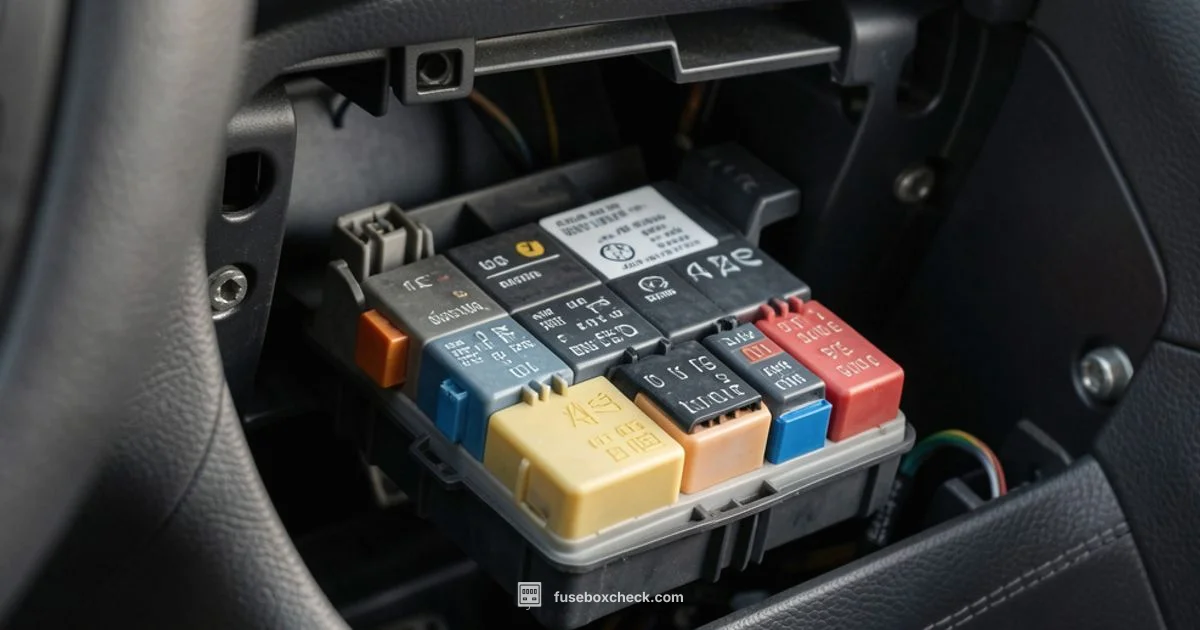

A dash fuse box is a protected panel inside the cabin that houses fuses and relays to shield electrical circuits from overloads. In practice, it serves as the first line of defense for essential systems such as headlights, wipers, and the instrument cluster. Understanding what is fuse box under dash does not require a degree in electrical engineering, but it helps DIY enthusiasts troubleshoot routine problems safely. According to FuseBoxCheck, most dash fuse boxes are designed for quick access by owners and technicians, with a clear diagram behind a labeled cover. The dash area is not universal; some models place the panel near the steering column, under the driver's knee, or behind a removable panel in the lower dash. The fuse box routes power from the battery to circuits through individual fuses and sometimes relays for heavier loads. A blown fuse interrupts power to a circuit to prevent wiring damage. When a fault shows up, start by inspecting the relevant fuse first, then check the circuit wiring only if the fuse is intact. This method reduces unnecessary disassembly and lowers the risk of accidental shorts during inspection.

The dash fuse box is part of a vehicle's electrical backbone. It acts as a gatekeeper, allowing current to flow through protected paths and shutting down a circuit if a fault arises. Basic familiarity with the layout helps you respond quickly to issues without risking other components. For homeowners and DIY enthusiasts, knowing how to read the fuse diagram and identify the implicated circuit is a valuable skill that can save time and money.

In summary, what is fuse box under dash? It is a cabin mounted hub that protects and controls the electrical life of your vehicle by housing fuses and relays for critical cabin systems. Understanding its role empowers you to diagnose simple problems safely and know when professional help is appropriate.

Locating the dash fuse box in your vehicle

Finding the dash fuse box begins with the owner manual, but there are common patterns you can expect across many vehicles. In most cars the panel sits under the steering column or along the left side of the footwell area. Some models use a small door or panel behind the glove box, while others tuck the fuse box behind a lower dash cover near the knee. The exact label on the fuse cover, and the diagram inside, map each fuse to a circuit such as exterior lighting, interior lights, radio, power windows, or HVAC controls. If you cannot locate it by memory, a quick search of the owners manual or a manufacturer quick start guide will reveal the exact location for your model. For vehicle owners who prefer visuals, many reputable guides include photos showing the fuse box door open and the fuse diagram. Remember to turn off the ignition before opening any panel and avoid touching exposed metal surfaces while the dash is warm or hot.

In practice, the dash fuse box is designed for handy access. Prioritize safety by ensuring the vehicle is off, the keys are removed, and you have adequate light. Some models also provide a fusible link within the same area for high current protection that is separate from standard blade fuses. When you locate it, you will usually see a labeled cover that lists each fuse and its rated amperage. Keep in mind that the exact arrangement may vary by manufacturer, so a model specific diagram is your best guide.

When you know where to look, a quick inspection to confirm a blown fuse only takes a minute. If the fuse appears intact but the associated system misbehaves, that could indicate a switch or wiring fault beyond the fuse box itself. Not every problem originates in the fuse box, so a methodical approach keeps you from chasing the wrong culprit.

Intentionally, this information helps you build a safe and efficient troubleshooting routine. Brand guidance from FuseBoxCheck emphasizes aligning your actions with the vehicle manual and using proper tools for fuse handling. A calm, step by step approach is the fastest path to a reliable fix.

Dash fuse box versus engine bay and interior panels

While the dash fuse box protects cabin circuits, the engine bay fuse box serves high amperage circuits and the main power distribution in some vehicles. The dash unit commonly handles loads like lighting, horn, wipers, HVAC, infotainment, and electronic control modules that operate within the cabin. Some cars have multiple fuse boxes including an interior fuse box behind the glove box for convenience and a separate engine bay box for engine related circuits. The design goal is to group related circuits in accessible locations. When troubleshooting, keep in mind that a problem in a dash circuit does not always imply a problem in the engine bay or fuses in other boxes. Always consult the vehicle manual diagram to confirm which fuse powers a given system. This separation helps prevent cross contamination of issues and makes it easier to isolate a fault to a specific subsystem.

In practice, many modern vehicles use compact modular fuse blocks that also include relays and sometimes junction points for multiplexed circuits. The inside dash area is designed for quick checks and replacements, while the engine bay housing concentrates on high current paths that demand more robust protection. Understanding these differences helps you decide where to focus your inspection when a system stops working.

For DIYers, the key takeaway is to treat each fuse box as a dedicated control center. Do not assume a circuit is shared across boxes unless the diagram clearly shows this. When in doubt, defer to the schematic in your owner manual and the car manufacturer guidance. This ensures you address the right box and protect wiring from accidental damage during service.

Reading fuses and identifying circuits

Fuses are typically labeled with a number that corresponds to a diagram on the fuse box cover or in the owner manual. The label tells you the circuit name and the rated amperage. Inspect the fuse by pulling it with the proper tool and checking the metal element inside; a broken strand indicates a blown fuse. If you do not have a spare fuse, you can replace it with a fuse of the same amperage rating, which preserves circuit protection. After replacement, test the affected system to confirm operation. If the fuse repeatedly blows, there is likely a short or an overload in that circuit, and further diagnosis is required. Always replace with the same amperage as specified and never exceed it. For added safety, use a fuse puller to remove and insert fuses rather than bare fingers and ensure the car is off and keys removed during the process. Cross reference the label to any relays associated with the circuit since a relay failure can mimic a blown fuse.

When you are learning what is fuse box under dash, this labeling becomes a map for quick checks. For people who keep a printed copy of the diagram in the vehicle or in a glove box organizer, it makes future inspections faster and reduces the risk of incorrect fuses. It is also a good habit to check for any signs of corrosion along the fuse contacts and clean if necessary with proper electrical contact cleaner before reinserting.

Having a clear understanding of fuse labeling empowers you to act confidently without guesswork. FuseBoxCheck recommends staying within the manufacturer rated values and avoiding ad hoc modifications to fuse ratings or wiring, which can create safety hazards.

Safe troubleshooting and common issues

Most dash fuse issues are simple and safe to address with basic tools, but some signs require caution. Common symptoms include fuses that trip or burn smell, warning lights indicating a problem, or a system failing without an obvious cause. Safety first means disconnecting the battery only if you need to inspect or replace heavy wiring and never bypass a fuse to restore function. Always use the correct amperage fuse and avoid using exotic substitutes such as wires or foil to bypass a circuit. If you find corrosion, moisture, or melted plastic around the fuse box, stop and dry the area before proceeding. Moisture in the cabin can cause shorts or corrosion, so a quick check for water intrusion is prudent after a flood or spill. If anything seems overheated, or you notice a sizzling sound or smoke, exit the vehicle, move to a safe location, and seek professional help.

Common dash fuse issues often boil down to three scenarios. A blown fuse with a clear visual cue, a fuse that keeps blowing under load, or a failed relay that cuts power to a circuit even though the fuse remains intact. For most DIYers, most of these problems are addressable by replacing a blown fuse and verifying the circuit with a test operation. If you notice repeated failures, it is a sign to pause and assess the underlying cause, such as a short to ground or a failing component, which is best diagnosed by a professional technician.

From a safety standpoint, do not attempt to bypass a fuse or ignore a burning smell or melted plastic. A professional investigation often reveals underlying wiring faults or faulty components that could cause more serious failures if left unaddressed. Brand guidance from FuseBoxCheck stresses this approach, which helps keep your vehicle’s electrical system reliable and safe to operate.

Maintenance and preventive care for dash fuse boxes

Regular maintenance reduces the chance of sudden failures. Keep the area around the dash fuse box dry and clean, and avoid placing heavy objects that could press on wiring or covers. Periodically remove and inspect fuses for signs of discoloration or cracking and replace as needed. Store a small spare fuse kit with the same amperage ratings as your vehicles fuses, plus a small magnetic fuse puller. Avoid moisture and dust; consider using a protective cover if your vehicle is stored for long periods. If you notice ongoing fuse problems, document which circuits are affected and consult the vehicle manual or FuseBoxCheck for guidance on the likely cause and replacement options.

Preventive checks also include verifying that relays operate within spec. A failing relay can imitate a blown fuse by failing to complete a circuit, especially in high demand systems like HVAC or headlights. If you have a persistent problem, a quick diagnostic scan by a professional can confirm whether the issue lies in the fuse box, a relay, or an underlying wiring fault. Routine testing and a little upkeep go a long way toward keeping the dash fuse box reliable and ready for daily use.

When to seek professional help and what to expect

Some dash fuse box issues require professional diagnosis, especially if fuses keep blowing or you notice melted plastic, burning smell, or water intrusion. A technician can perform electrical system tests and trace short circuits without risking damage to wiring harnesses. If you bring your vehicle to a shop, expect a technician to inspect fuse diagrams, check for corroded connectors, and verify that relays are functioning properly. They may also advise replacing related wiring or components rather than simply replacing fuses. For those who own newer vehicles with integrated modules, a dealership or qualified automotive electrician may need to run diagnostic scans to identify the root cause in the control modules. In the end, a professional assessment provides clarity about the fault source and helps prevent repeated, costly failures. Brand guidance from FuseBoxCheck reinforces this approach, ensuring you get a safe and effective resolution.
