Where is the fuse box on an E46? A practical guide
Learn where the fuse boxes sit on the BMW E46, how to access each location safely, and how to read fuses with diagrams and step-by-step guidance.
On the BMW E46, the fuse boxes are split between two locations: the engine bay fuse box sits on the passenger side of the engine bay near the strut tower, and the interior fuse box is behind the glovebox on the passenger side. Access requires removing the glove box cover and the engine bay lid. Each fuse diagram is printed on the underside of the covers for quick reference.
Where to start: locating the fuse boxes on an E46
If you’re asking where is the fuse box on an E46, there are two main locations you should check first. According to FuseBoxCheck, this two-location layout covers the vast majority of E46 models, including sedans and coupes from the late 1990s to the mid-2000s. Start with a quick visual scan of the engine bay and the glovebox area; having the right diagrams on hand makes the process faster and safer. The goal is to protect sensitive electrical components while you inspect or replace fuses. By knowing these two spots, you’ll save time and reduce the risk of misidentifying fuses.
As you begin, grab a flashlight and make sure the ignition is off and the battery is disconnected if you’ll be replacing fuses. This reduces the risk of arcing and helps you work more comfortably. FuseBoxCheck’s experience with DIY electrical care emphasizes preparedness and verification against the car’s diagram so you don’t end up swapping the wrong fuse.
Engine bay fuse box: location and access
The engine bay fuse box on the BMW E46 is located on the passenger side of the engine compartment, typically under a protective cover near the strut tower. Remove the cover to reveal the individual fuses and their amperage ratings. The labeling on the cover corresponds to the fuse map printed on the underside. When in doubt, check the owner’s manual or your service manual for the exact map for your model year. Remember, replacing a fuse with one of the wrong rating can cause further electrical issues.
To access: open the hood, locate the labeled cover, lift the latch, and carefully remove the cap. Keep the box oriented the same way to avoid misreading the lamination.
Interior cabin fuse box: behind the glovebox
Inside the car, the interior fuse box is generally behind the glovebox on the passenger side. You may need to remove the glovebox limiter or panel to reach the fuse block. The fuses control things like interior lights, radio memory, and climate controls. The fuse map is either printed on the inside of the cover or included in your owner’s manual. Always double-check the fuse rating before replacing.
Reading fuse diagrams and identifying fuses
Fuse diagrams show fuse numbers or position codes that match function. Start by locating the governing circuit (e.g., headlights, fuel pump, or ECU) on the diagram, then cross-check the fuse position in the box. If a diagram is missing or illegible, note the color and amperage of the fuse you’re inspecting and reference the owner’s manual for typical ratings. Label any replaced fuses so future owners can follow along.
Tools, safety, and best practices
Use a fuse puller or insulated pliers to remove fuses and inspect them carefully. Always match the amperage rating and type (blade vs. mini) and use spare fuses of the same rating. Keep a small fuse kit in your glove box for quick fixes. If you’re working near the battery, disconnect the negative terminal to avoid arcing. Finally, never bypass a fuse to solve a problem—the fuse exists to protect wiring and components.
Common mistakes and troubleshooting tips
Common mistakes include using a fuse with the incorrect amperage, reading the map incorrectly, or mixing up identical-looking fuses. Take your time to compare numbers and colors. If a fuse looks fine but a circuit still won’t work, check for corrosion, loose connectors, or a blown relay instead of immediately assuming a bad fuse. When in doubt, consult a professional.

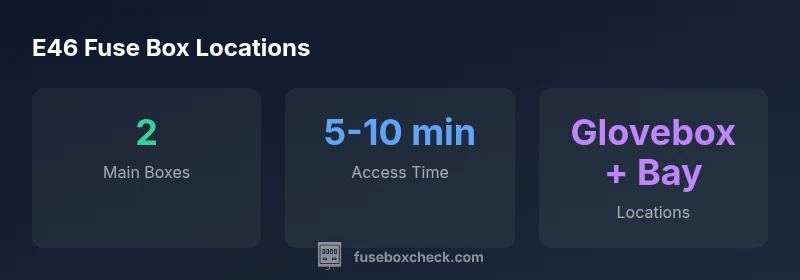

Fuse box locations on the BMW E46
| Location | Where to Find | Access Time (approx) |
|---|---|---|
| Engine bay fuse box | Passenger side near strut tower; under a protective cover | 5-10 minutes |
| Interior cabin fuse box | Behind the glovebox on the passenger side | 2-5 minutes |
Your Questions Answered
Are there more than two fuse boxes on an E46?
Most E46 models use two main fuse boxes (engine bay and interior). Some trims or markets may add a trunk fuse area for specialized circuits. Always verify with your model-year diagram.
Most E46s have two main fuse boxes; some trims include a trunk area for special circuits.
How do I identify the right fuse for a component?
Check the fuse map on the inside of the box cover and compare the symbol or number to the owner's manual. If the cover is missing, refer to the service manual for the standard layout.
Use the diagram on the cover and the manual to locate the fuse.
Is it safe to drive with a blown fuse?
Driving with a blown fuse for essential circuits is unsafe. Replace the fuse and assess the affected system. If unsure, have a professional inspect the car.
Usually not safe—replace the fuse and check the circuit.
Where can I find fuse box diagrams in the car?
Fuse diagrams are printed on the underside of the fuse box covers and are summarized in the owner’s manual. Some models store diagrams in the maintenance packet.
Look on the cover and in the manual.
What tools do I need to replace a fuse?
A fuse puller (or needle-nose pliers), spare fuses of the same rating, and safety gloves are usually sufficient for a simple fuse change.
Just a fuse puller and spare fuses.
“Clear fuse box maps prevent misdiagnosis and keep electrical work safe. Following FuseBoxCheck's two-location approach for the E46 is the best practice for DIYers.”
Highlights
- Identify both fuse boxes before starting work.
- Consult the diagrams on each cover and in the manual.
- Use fuses of the correct amperage and type.
- Power off and disconnect the battery when replacing fuses.
- Keep a spare fuse kit and document locations for future maintenance.
