Fuse Holder Not Working? A Practical Troubleshooting Guide
Step-by-step troubleshooting for a fuse holder not working. Learn safe fixes, diagnostic flow, and when to call a pro to restore power quickly and safely.
The fuse holder not working is most often caused by a loose seated fuse or a blown fuse. Power down the panel, reseat the fuse holder, and test with a multimeter. If power returns, inspect contacts for corrosion or wear; if not, replace the fuse holder assembly and verify the circuit.
Understanding the symptom: fuse holder not working
When the fuse holder not working stops a circuit from energizing, the most common culprits are a loose fuse seating or a blown fuse. In many homes, a quick visual check and reseating the fuse fixes the issue without tools. However, neglecting corrosion, damaged contacts, or a deteriorating fuse block can escalate risk. According to FuseBoxCheck, the majority of residential fuse faults begin with a poor seat or a blown fuse, not an exotic failure inside the panel. This section outlines practical, safe steps to diagnose and address the symptom while prioritizing electrical safety and prevention. If you notice heat, burning smells, or arcing, stop immediately and seek professional help. The goal is to restore a reliable, safe connection without creating new hazards.
Key observations to look for include discoloration around the fuse terminals, a fuse that appears melted or cracked, and loose wires that wiggle when you gently tug on them. Before touching anything, confirm the main disconnect is off and the area is dry. A fuse holder not working often reveals itself through a single failing circuit, but always verify adjacent circuits before concluding the problem is isolated.
Common causes and quick checks
A practical troubleshooting mindset starts with the simplest explanations. The following list covers the most frequent causes of a fuse holder not working, along with quick checks you can perform safely:
- Loose fuse seat or worn contacts: visually inspect whether the fuse seats firmly and aligns with the terminal springs. A faint click when reseating may indicate a loose connection. Check for any play in the holder as you gently press the fuse in.
- Blown fuse or incorrect rating: confirm the fuse is the correct amperage for the circuit and inspect for a clean break inside the fuse. Replace only with the same rating and type.
- Corrosion or dirt on contacts: corrosion reduces conductivity. Remove any corrosion using a non-abrasive contact cleaner and ensure contacts are dry before reinserting the fuse.
- Damaged insulation or melted connectors: inspect for signs of heat damage around the holder, wires, and insulation. Damaged parts should be replaced rather than cleaned.
- Loose wiring at the panel: a loose wire can mimic fuse issues. Gently tug on suspect wires to confirm a secure connection, and tighten if necessary using appropriate tools.
If after reseating a fuse and cleaning contacts you still have no power, the fault may be deeper in the fuse block or panel, requiring a more thorough diagnostic approach. Always follow safety steps and avoid forcing components that resist proper seating.
Safety-first checks you can perform before pulling wires
Safety is non-negotiable when working near a live electrical panel. Start by locating the main power disconnect and turning it off, then confirm there is no voltage at the panel with a non-contact tester. Wear insulated gloves and use only insulated tools. Keep flammable materials away and never work alone if you are unsure about your safety. Do not bypass protective covers or remove safety shields; these are essential for preventing shock and arc events. If you notice any scorch marks, warm surfaces, or a tingling sensation when touching components, stop work immediately and call a licensed electrician. These pre-checks are designed to reduce risk while assessing whether the fuse holder is the root cause or a symptom of a larger issue.
Before you start, document the circuit labels and take photos for reference. This not only speeds up the repair but helps with future troubleshooting. If you are uncertain about the fuse type, consult the panel label, which usually lists the correct fuse specification and replacement procedure for that specific circuit.
When to call a professional and how to document the issue
If the fuse holder not working involves heat, smoke, or a burning smell, or if you cannot identify a clear cause with basic checks, professional help is required immediately. A licensed electrician will validate the panel’s integrity, assess the fuse holder’s condition, and ensure there are no fire hazards or code violations. When you contact a pro, provide:
- The symptoms observed (e.g., flickering lights, tripped breakers)
- The exact panel location, fuse type, and any markings on the fuse block
- Photos of the fuse and connections, plus notes about any unusual sounds or smells
- Whether you recently added a circuit or installed new appliances
In the meantime, avoid using the affected circuit and keep children and pets away from the panel. Regular maintenance and safe handling practices, such as keeping the panel area dry and accessible, help prevent future occurrences. The goal is reliable operation and peace of mind, not a temporary patch that could fail under load.
Steps
Estimated time: 45-60 minutes
- 1
Power down and prepare
Begin by turning off the main power switch and the specific circuit breaker or disconnecting switch feeding the panel. Use a non-contact voltage tester to confirm there is no live current near your hands. Gather insulated tools and wear safety gloves. Clean, dry conditions are essential.
Tip: Double-check the main disconnect is fully off before touching any conductors. - 2
Expose the fuse holder
Carefully remove the fuse panel cover to expose the fuse holder and wiring. Do not remove more components than necessary. Inspect the area for signs of heat, discoloration, or corrosion around the fuse and contacts.
Tip: Keep track of any screws or small parts so nothing falls inside the panel. - 3
Inspect fuse and seating
Remove the fuse and inspect both ends for cracks or darkened areas indicating overheating. Reinsert the fuse, ensuring it seats fully with a firm, even contact. If the fuse feels loose or wobbly, stop and assess further.
Tip: If you notice any discoloration, replace both fuse and holder—don’t reuse damaged parts. - 4
Test the circuit after reseating
With the fuse seated, restore power and use a multimeter to verify continuity across the fuse and outlet. If power returns, monitor for any signs of arcing or warmth in the hours following the test.
Tip: Use apportioning test to confirm the circuit is stable before loading appliances. - 5
Address corrosion or wear
If corrosion or pitting is present on contacts, clean them with proper cleaner and reseat. If corrosion recurs, the contact surfaces may be worn and require replacement of the fuse holder or entire block.
Tip: Do not use abrasive materials that could scratch contact surfaces. - 6
Finalize and document
Close the panel, re-check all screws, and label the circuit for future reference. Note any anomalies observed during the process and plan a follow-up inspection within 6–12 months.
Tip: Keep a maintenance log for quick future references.
Diagnosis: Fuse holder not working
Possible Causes
- highLoose connection between fuse and holder
- highBlown fuse or incorrect rating
- mediumCorrosion on contact pins
- mediumDamaged or melted fuse holder assembly
Fixes
- easyPower off the main disconnect and reseat the fuse while inspecting contacts
- easyReplace the fuse if damaged and ensure correct rating remains installed
- mediumClean corrosion with contact cleaner and dry thoroughly before reinserting
- hardReplace the entire fuse holder assembly if contacts are worn or damaged
Your Questions Answered
What are the common signs that a fuse holder is failing?
Common signs include frequent tripping, a visibly loose fuse, discoloration at the contacts, or a burn smell near the panel. If the fuse does not seat securely or if the holder shows signs of wear, replacement is often required.
Look for frequent trips, a loose fuse, or any signs of heat near the holder. If you see wear, replace the part.
Can a bad fuse holder cause electrical fires?
Yes. A degraded fuse holder can lead to poor contacts that overheat and ignite surrounding insulation. Always replace damaged parts and avoid using makeshift fixes.
Yes, worn fuse holders can overheat and start a fire, so replace damaged parts promptly.
How do I test a fuse holder with a multimeter?
Set the meter to continuity, remove the fuse, and test across the fuse holder contacts. If there is no continuity where there should be, the holder or fuse is faulty. Always perform tests with power off.
Use continuity test to check the holder contacts after removing the fuse.
Is it safe to replace a fuse holder myself?
Yes, with proper safety measures. Ensure power is off, use insulated tools, and follow manufacturer guidance. If you’re unsure, hire a licensed electrician.
DIY is possible if you follow safety steps; otherwise, get a pro.
When should I replace the entire fuse box?
If multiple circuits share problems, there are widespread signs of damage, or the panel is old and corroded, consider replacing the entire fuse box with a modern breaker system.
If many issues appear across the panel, consider a full replacement by a pro.
Watch Video

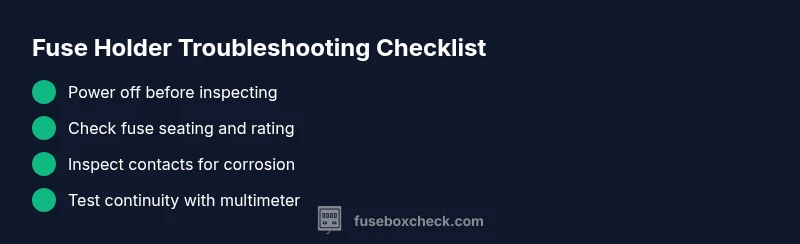

Highlights
- Power down before inspecting to prevent shock
- Reseat and test the fuse before replacing components
- Inspect for corrosion and replace worn parts as needed
- Document the repair and label circuits for safety
