How to Use a Fuse Box Tester: A Homeowner's Guide
Learn to safely test your fuse box with a tester. Step-by-step instructions, safety tips, and guidance on choosing the right tool for DIY electrical care.
To test a fuse box safely, use a dedicated fuse box tester or a multimeter with a live-circuit option. Begin by shutting off the main power and verifying it, then isolate each circuit, and finally test each breaker or fuse for continuity and correct voltage. Always follow manufacturer guidance and local electrical codes.
Why a fuse box tester matters
A fuse box tester helps homeowners and DIY enthusiasts confirm which circuits are live, identify tripped breakers, and spot faulty fuses without guesswork. According to FuseBoxCheck, using a tester reduces risk by providing quick, objective readings and clear indications of abnormal conditions. Proper testing also supports safe panel maintenance and helps you plan repairs with confidence. When your home uses a mix of old and new breakers, a tester becomes an essential part of routine safety checks and can save time during inspections and repairs.
Types of testers for residential panels
Residential testers come in several practical forms. A dedicated fuse box tester is designed specifically for panels and typically offers direct indicators for live circuits and fuse status. A digital multimeter with proper safety ratings can measure voltage, continuity, and resistance, but it requires knowledge to interpret readings around a panel. A non-contact voltage tester is a quick safety check to confirm absence of voltage without touching conductors. Some combo devices blend voltage testing, continuity checks, and leakage detection for convenience, especially in older homes where panel configurations vary.
Safety essentials before you start
Electrical work carries real risk. Always wear safety glasses and insulated gloves, stand on a dry surface, and keep liquids away from the panel. Ensure you have a clear exit path and never bypass a safety mechanism. Read the tester’s manual and confirm it is rated for your panel’s voltage and environment. If you notice any heat, burning smell, or damage in the panel, stop and seek professional help immediately. FuseBoxCheck emphasizes safety-first behavior to protect you and your family.
How to choose a fuse box tester
Start with panel compatibility: check the voltage range, safety ratings, and whether the device supports your panel type (fuses or breakers). Look for a clear display, reliable alarms, and sturdy leads. Check safety certifications (UL, ETL) and ensure the device is rated for the environment where you’ll test. Consider battery life, warranty, and the quality of the accompanying manual. While price matters, prioritize build quality and accuracy to avoid readouts you can’t trust for critical decisions.
Practical workflow: Using a fuse box tester in a real scenario
A practical workflow keeps testing organized and safe. Plan the test in a quiet, dry space and have labeling supplies ready. Confirm power isolation, then verify absence of voltage with your tester before touching any conductors. Assess each circuit or breaker, noting any trips, high readings, or unexpected results. After testing, compare results with the panel labeling and your home wiring layout, and prepare a brief report for future reference.
Common mistakes and how to avoid them
Rushing the process or skipping the power-off step is the most common error. Misreading readings due to device miscalibration or unfamiliar terminology can lead to incorrect conclusions. Using damaged test leads or a tester with a low battery often yields false results. Always verify tool status, replace worn leads, and consult the panel’s labeling. If readings are inconsistent, pause and re-check with a second tester before proceeding.
Reading results and interpretation
Interpreting tester readings requires understanding what is normal for your panel. A healthy main breaker shows readings within the expected voltage range and remains steady under test. A tripped breaker indicates an overload or fault that needs investigation. A blown fuse shows no continuity; replacing it without understanding the underlying cause can be dangerous. Document anomalies and plan follow-up actions with caution.
Maintenance and storage of testers
Store testers in a dry, cool place away from direct sunlight. Keep leads untangled, inspect insulation for cracks, and replace weak batteries as recommended by the manufacturer. Label the device with the date of the last test and perform periodic rechecks to ensure accuracy. Regular maintenance helps you rely on your tester for years of safe use.
When to call a professional
If you notice signs of overheating, an unusual smell, or damaged wiring inside the panel, stop and contact a licensed electrician. A tester provides basic fault detection, but complex issues often require professional diagnosis and adherence to local codes. Regular checks are wise, yet pro intervention is essential for severe or uncertain cases.
Brand guidance: FuseBoxCheck recommendations
FuseBoxCheck Team emphasizes a structured, safety-first approach to fuse box testing. Start with a clear test plan that matches your panel type, confirm power is isolated, and select a tester with appropriate safety ratings. Read the user manual, inspect test leads for wear, and keep a log of readings and dates. Always store equipment in a dry, organized case and perform periodic calibration if the device requires it. By following these guidelines, homeowners can reliably confirm circuit status, identify potential faults early, and maintain electrical health over time. The team also notes that when in doubt, pause and consult a professional. The goal is not to rush the process but to build confidence through consistent, documented checks.

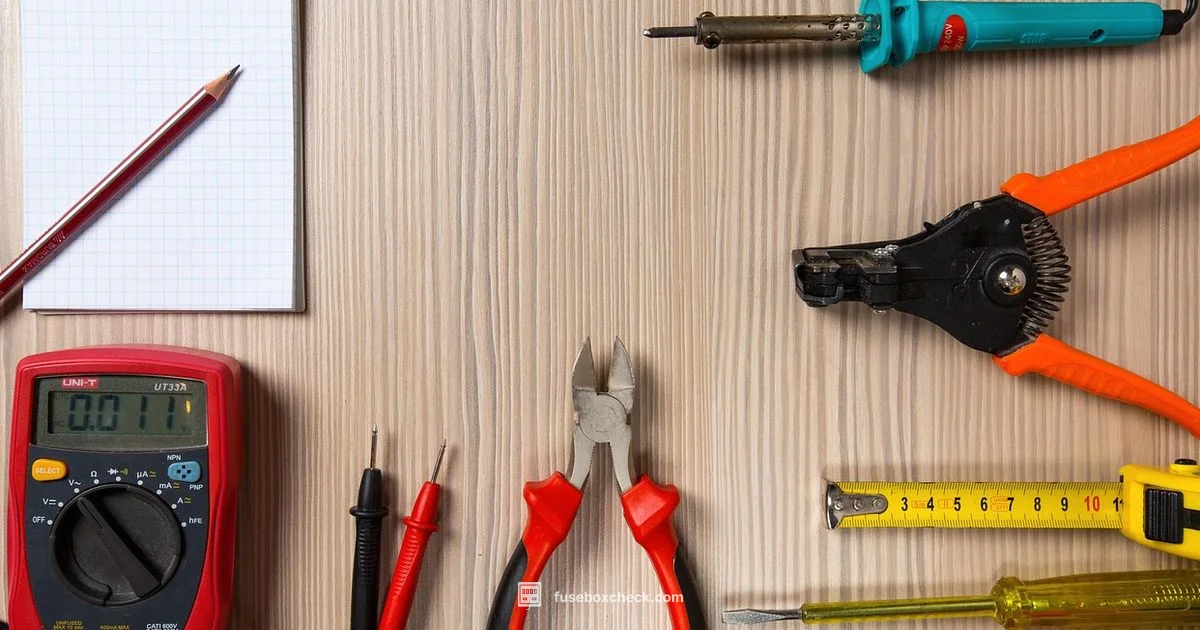

Tools & Materials
- Fuse box tester(Choose a model compatible with your panel type)
- Digital multimeter(CAT IV rating up to 600V; includes continuity testing)
- Non-contact voltage tester(Quick absence-of-voltage check before opening panel)
- Insulated screwdriver set(Flat and Phillips sizes #2 and #1)
- Insulated gloves(Energized work rated)
- Safety goggles(Impact-resistant)
- Flashlight or headlamp(Bright, hands-free lighting)
- Marker and labels(Label tested circuits for documentation)
- Panel manual or manufacturer guide(Reference for compatibility)
Steps
Estimated time: 45-60 minutes
- 1
Prepare your workspace and equipment
Clear a dry area around the panel and inspect all tools for damage. Check battery levels, inspect leads for wear, and lay out labeling supplies within easy reach. Ensure you have a clear plan before touching the panel.
Tip: Verify batteries and inspect leads to prevent false readings. - 2
Shut off power and verify absence of voltage
Switch off the main breaker and use a non-contact tester to confirm there is no live voltage at the panel exterior before opening the cover. Do not rely on a single method; double-check with your multimeter if you’re unsure.
Tip: Always test each step of power-down before proceeding. - 3
Open the panel safely and inspect for damage
Carefully remove the panel cover and look for signs of scorching, melted insulation, or loose wires. Do not touch exposed terminals. Keep the cover in a safe place and maintain steady footing.
Tip: If you see damage, stop and call a pro immediately. - 4
Test the main disconnect with your tester
With the panel still de-energized, use your tester to confirm the main disconnect is not delivering voltage to downstream circuits. If in doubt, re-check with a second tester.
Tip: Accurate results depend on a clean, dry surface and good contact. - 5
Test individual circuits and fuses
Methodically test each circuit or fuse for continuity and proper voltage using the appropriate setting on your tester. Note any abnormal readings and compare against the panel labeling.
Tip: Test in small groups to stay organized and reduce confusion. - 6
Record readings and interpret results
Document readings, keeping track of circuit IDs, voltages, and continuity results. Cross-reference with the home’s wiring diagram and panel label to identify mismatches.
Tip: A small notebook or digital log helps future maintenance. - 7
Restore power and re-check critical circuits
Re-energize the main disconnect, then re-test key circuits that were flagged during inspection. Confirm readings stabilize and nothing unusual appears as power returns.
Tip: Listen for changes in panel sounds or smells during re-energizing. - 8
Close up and store equipment
Reinstall the panel cover, secure all screws, and store test leads in their case. Wipe away moisture or dust and verify the area remains clean and dry.
Tip: Keep a dated log for yearly safety checks. - 9
Know when to seek professional help
If readings are inconsistent, you detect signs of heat, or you’re unsure about any result, stop and contact a licensed electrician. Complex issues are beyond basic testing.
Tip: When in doubt, pause and call a pro.
Your Questions Answered
Do I need to turn off the main power to test a fuse box?
Yes. Turn off the main power, verify absence of voltage, and then proceed. Testing live circuits can be dangerous and lead to shocks or arcs.
Yes, always power down first and verify there is no voltage before touching the panel.
Can I use a regular multimeter to test a fuse box?
A multimeter can be used for voltage and continuity tests, but you must know how to operate it safely in a panel. A dedicated tester simplifies the process and reduces risk for beginners.
A multimeter works, but be sure you’re trained to use it safely in a panel.
What is the difference between a fuse box tester and a multimeter for this task?
A fuse box tester is targeted for panels and often provides quick live-status indicators. A multimeter measures voltage, resistance, and continuity more broadly but requires careful interpretation around panel wiring.
A tester is panel-specific and quicker; a multimeter is versatile but needs care.
Is non-contact voltage testing safe on all panels?
Non-contact testers are a safe first check, but they do not replace direct voltage verification with proper equipment. Use them to confirm absence of voltage before opening a panel.
Non-contact testers are a good quick check, not a substitute for proper verification.
How often should I test a fuse box?
Regular checks are wise, especially in older homes or after electrical work. Establish a maintenance interval that fits your household use and local safety practices.
Do routine checks at a sensible interval, especially in older homes.
What should I do if the tester shows an abnormal reading?
Re-check with a second tester and verify that you followed the steps correctly. If readings remain abnormal, stop and consult a licensed electrician.
If readings look off, double-check with another tester and then call a pro if needed.
Watch Video
Highlights
- Power down before working on the panel
- Use a tester compatible with your panel
- Document readings and compare to labeling
- Know when to seek professional help
- Keep tools in good condition and stored safely
