Yes, you can replace a car fuse box, but it’s a specialized, model-specific job. It involves safely disconnecting power, sourcing a compatible fuse box, and re-wiring connectors without damage. This guide covers when it’s appropriate, what tools you need, and a step-by-step approach to minimize risk.
Can you replace a fuse box in a car? A practical introduction
According to FuseBoxCheck, can you replace a fuse box in a car? The short answer is yes, but it’s not a casual weekend repair. The fuse box, or power distribution center, is the electrical hub that distributes power to vital systems such as lights, ignition, and accessories. Replacing it requires identifying the correct part for your exact make, model, and year, safely removing power, and reconnecting a cluster of heavy-duty connectors without causing damage. This guide explains when the task is appropriate, what tools you’ll need, and the critical steps to minimize risk. Remember: electrical work in vehicles can cause fire or shock if done improperly, so proceed with care and verify each connection before restoring power.
Throughout this article, you’ll see practical tips, warnings, and references to reputable safety practices. FuseBoxCheck’s experience informs the approach, but always consult your vehicle’s service manual for model-specific instructions. The goal is to help you decide whether you can complete the task safely or whether it’s better left to a professional.
Safety first: essential precautions before you begin
Before touching any electrical system, safety must come first. Start by turning off the ignition, removing the key, and disconnecting the negative battery cable to prevent sparks and short circuits. Wear eye protection and insulated gloves; keep the work area dry and well lit. Remove metal jewelry that could contact live circuits and avoid working on a wet surface. If you’re unsure at any point, stop and re-check the manual or seek professional assistance. These precautions reduce the risk of electric shock, arc flash, or accidental damage to the car’s electronics.
In addition to personal protection, set up a clean, organized workspace. Label connectors as you disconnect them, and take photos from multiple angles to aid reassembly. A small tray or zip-top bags for screws helps prevent loss of parts. By planning ahead, you’ll reduce the chance of miswiring when you install a new fuse box.
Fuse box variations in modern cars and why it matters
Car electrical systems vary by make, model, and even production year. Some vehicles use a traditional, standalone fuse box under the hood or inside the cabin, while others use an integrated power distribution center (PDC) that combines fuses, relays, and modules in a single unit. The fuse box layout also affects how you access connectors, the sequence of removal, and compatibility with aftermarket parts. Before attempting a swap, you must confirm that the replacement unit matches the exact specification, including the number of circuits, connector types, and mounting points. A mismatched fuse box can cause intermittent failures and may require reprogramming or additional wiring.
When replacement makes sense: diagnosing the need
Not every fault means the fuse box must be replaced. Many problems originate in loose grounds, corroded terminals, or blown fuses themselves. Start by inspecting the fuse box for visible damage: melted plastic, corrosion around pins, or signs of water intrusion. Use a multimeter to check for continuity and verify that fuses are performing as rated. If multiple circuits share failures, or relays inside the box seem stuck, replacement might be warranted. However, ensure that the rest of the electrical system is tested to rule out upstream wiring issues. FuseBoxCheck recommends weighing the cost and risk of a replacement against repairing or refurbishing the existing unit when feasible.
Replacement overview: planning and sourcing a compatible unit
If a replacement is necessary, the crucial steps are planning, sourcing, and verifying compatibility. Start by pulling the vehicle’s VIN and checking the service manual or dealership parts database for the exact fuse box part number. Do not assume compatibility based on exterior appearance alone—connectors, pinout, and mounting studs can vary between trims or production batches. When you purchase a replacement, insist on a unit that matches the original specifications and, if possible, is designed for your region’s electrical standards. Budget for potential reprogramming or re-flashing if your vehicle’s electronics rely on module identification. Finally, confirm that the tools and workspace meet safety standards before you begin work.

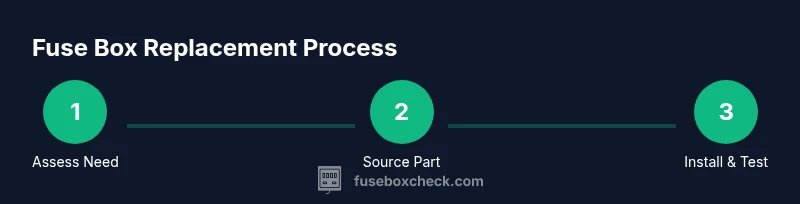

Detailed step-by-step: perform the replacement in a structured way
A fuse box replacement is a multi-stage task that benefits from a methodical approach. Start by powering down the vehicle and disconnecting the battery. Remove protective covers and identify all mounting points. Label and disconnect each wiring harness and ground, then carefully detach the old fuse box. Install the new unit, reattach the wiring harnesses in the correct order, and secure the mounting bolts. Reconnect ground straps and the negative battery cable, then verify all connections are tight and clean. Finally, reinstall covers and test the system with the ignition on to confirm that all circuits operate correctly.
Post-installation testing and verification
With power restored, systematically test each circuit that the fuse box controls: headlights, dashboard indicators, ignition, and essential safety features. Use a multimeter to confirm continuity across fuses and ensure relays click properly when activated. Look for abnormal readings, missing ground paths, or repeated fuse trips. If a problem emerges after installation, recheck the connectors for proper seating and inspect for loose wires or pinched harnesses. If you observe burning smells, heat, or smoke, immediately disconnect power and seek professional assessment. Document any abnormal behavior to share with a technician if needed.
Costs, time, and when to seek professional help
Replacing a fuse box is a significant electrical repair. Time estimates vary widely depending on the vehicle, access to the unit, and whether any ancillary components require attention. Plan for a solid block of time and accept the possibility of a visit to a shop if the job encounters hidden corrosion or wiring issues. Costs can range with parts and labor, and while DIY parts may be less expensive, missteps can lead to expensive damage. FuseBoxCheck emphasizes that for most drivers, safety and reliability justify professional help when the job involves complex harnesses, modules, or reprogramming. If you decide to proceed yourself, proceed with the highest caution and document every step for future reference.
Authority sources and further reading
- OSHA.gov: Electrical safety guidelines and best practices for handling live electrical components in vehicles and workshops.
- NHTSA.gov: Vehicle safety considerations and maintenance tips related to electrical systems.
- Energy.gov: General electrical safety principles that apply to automotive work and handling of power sources.
Additional context and references can help you validate steps and ensure compliance with local laws and vehicle-specific requirements. The FuseBoxCheck team recommends reviewing the vehicle’s service manual and consulting an experienced technician if you encounter uncertainty. The ultimate goal is to protect people, property, and your vehicle’s electrical integrity.
Tools & Materials
- Torque wrench(For mounting bolts and clamps to the specified torque in your manual)
- Screwdriver set (Phillips and flat-head)(For fasteners on fuse box housing and panels)
- Electrical contact cleaner(Clean connectors and pins before reassembly)
- Dielectric grease(Optional to protect connectors from moisture)
- Replacement fuse box assembly (model-specific)(Must match year, make, and model)
- Multimeter(Check continuity and ground paths)
- Insulated gloves(Personal protection during work)
- Safety glasses(Eye protection during prying and wiring)
- Labeling tape and marker(Label connectors as you disconnect them)
Steps
Estimated time: 1-3 hours
- 1
Power down and prep
Turn off the vehicle and remove the key. Open the hood or interior access panels as needed. Attach a battery disconnect tool if available and ensure no power is circulating in circuits you’ll touch.
Tip: Double-check that the ignition is off and wait a few minutes for any residual charge to dissipate. - 2
Identify fuse box location and model
Refer to the owner’s manual or service guide to locate the fuse box and confirm the exact model. Take note of the mounting orientation and the number of circuits.
Tip: Take a photo of the fuse box from multiple angles before removal for reference. - 3
Disconnect the battery
Loosen and remove the negative battery connector to prevent short circuits while working on the box. Keep the connector away from the terminal.
Tip: Wait at least 5 minutes after disconnecting the battery to ensure all stored energy dissipates. - 4
Remove fuse box cover and mounting bolts
Use the appropriate screwdriver to remove the cover and any mounting bolts. Set screws aside in a labeled container.
Tip: Keep track of each bolt’s length and location to avoid misalignment during reassembly. - 5
Label and disconnect wiring harnesses
Carefully detach each wiring harness and ground connection. Label each connector as you remove it to ensure correct reattachment.
Tip: Do not pull on wires; grip the plastic connector body to avoid damaging conductors. - 6
Remove the old fuse box
Gently lift out the old unit, paying attention to any auxiliary modules it interfaces with. Inspect connectors for corrosion or damage as you go.
Tip: If the unit resists removal, check for additional mounting points or clips you may have missed. - 7
Install the new fuse box
Place the replacement unit in position and start reconnecting harnesses in the reverse order of removal. Refit the cover and secure mounting bolts to the recommended torque.
Tip: Keep connectors clean and apply a thin layer of dielectric grease if recommended by the car’s manufacturer. - 8
Reconnect the battery and initial test
Reconnect the negative battery cable. Before final assembly, turn the ignition to ON and listen for relay clicks or check for dashboard indicators.
Tip: If something smells or smokes, stop immediately and recheck all steps. - 9
Final checks and reassembly
Reinstall the fuse box cover, confirm all panels snap into place, and close the hood. Run a full system check for lights, signals, and key safety features.
Tip: Document any anomalies and be prepared to re-test after a few drive cycles.
Your Questions Answered
Can I replace a fuse box in a car by myself?
Yes, it is possible, but it is a model-specific and safety-critical task. Only attempt if you have the right parts, tools, and confidence. If in doubt, consult a professional.
You can replace a fuse box yourself if you have the right parts and knowledge, but it’s a safety-critical job. If you’re unsure, consider professional help.
Is it safe to work on a car fuse box with the battery connected?
No. Always disconnect the negative battery lead and wait for residual charge to dissipate before handling any fuses or wiring.
No—disconnect the battery before starting to avoid shocks or short circuits.
What are signs that the fuse box needs replacement?
Signs include physical damage, burning smells, melted plastic, corrosion, and repeated fuse trips that affect multiple circuits.
Look for damage, smells, or frequent fuse trips that involve more than one system.
Will replacing the fuse box fix all electrical problems?
Not necessarily. If underlying wiring, grounds, or modules are faulty, issues may persist even after replacement. A full diagnostic is recommended.
Sometimes replacement helps, but other wiring problems can still cause issues.
How long does a fuse box replacement typically take?
Time varies by vehicle model and access. Plan for a window of a few hours and be prepared for potential delays if complications arise.
Plan for a few hours, since some cars are easier than others to access.
When should I call a professional?
If you encounter corrosion, pinched wires, or a need for programming, a professional is recommended to ensure safety and reliability.
Call a pro if you see corrosion or need module programming.
Watch Video
Highlights
- Understand whether replacement is necessary before starting.
- Always disconnect power and wear protective gear.
- Use model-specific parts and verify compatibility.
- Label connections and follow a methodical, documented process.
- Test thoroughly after installation to prevent drive-after issues.
