How to Check the Car Fuse Box: A Practical DIY Guide for Safe Electricals
Learn how to check the fuse box in a car safely, locate fuses, test circuits, and replace blown fuses with the correct rating. A clear, step-by-step guide for homeowners and DIY enthusiasts seeking reliable car electrical care.
To troubleshoot a car electrical issue, you’ll learn how to check the fuse box in a car and identify blown fuses safely. This quick guide covers fuse box locations, the essential tools, safety steps, and how to test circuits without risking shock or damage to sensitive components. It also highlights when to seek professional help.
How to check the fuse box in a car: locating, safety, and basics
Knowing how to check the fuse box in a car begins with locating the panels (engine bay and interior cabin), consulting your owner's manual, and gathering the right tools. According to FuseBoxCheck, most car electrical faults stem from blown fuses or loose connections rather than expensive component failures. Start with a visual inspection of obvious signs: melted plastic, scorch marks, or a discolored fuse. Then verify the fuse diagram to identify the circuit associated with the symptom. Safety first: disconnect the battery if you need to handle live metal, and wear eye protection. This foundation prepares you to inspect safely and avoid accidental short circuits.

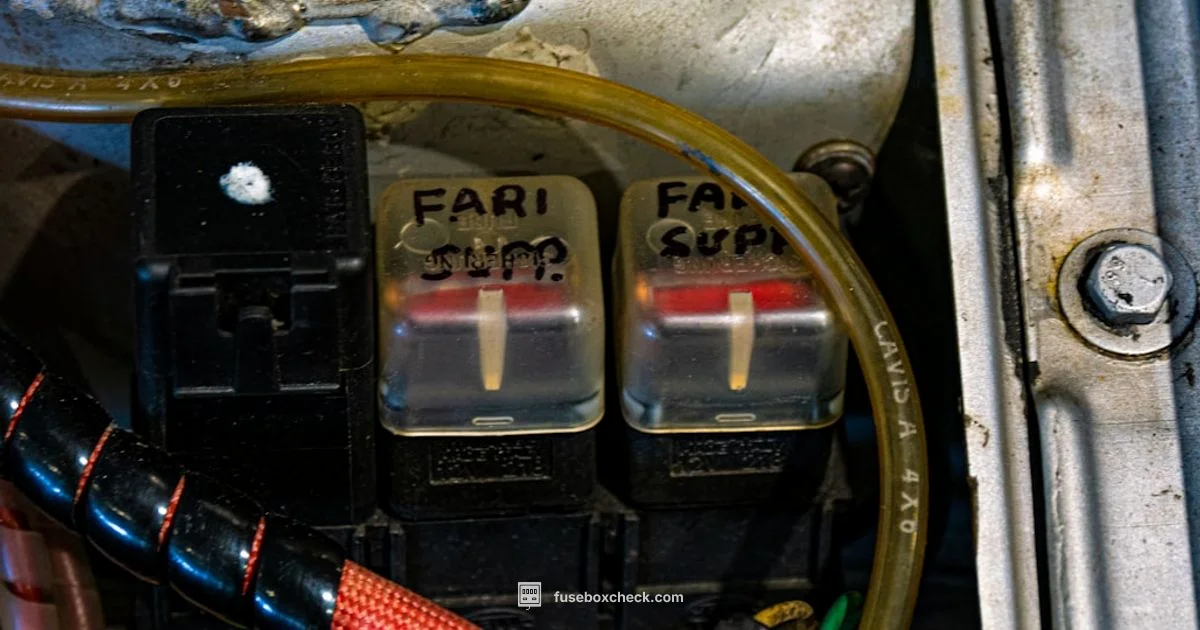

Locating fuse boxes in cars: engine bay and interior compartments
Most cars house two fuse boxes: one under the hood in the engine bay and another inside the cabin, often in the glove box or side panel. The engine bay box typically contains high-amperage fuses and relays, while the interior box covers circuits like lighting, infotainment, and HVAC. Always refer to the lid diagram and your owner's manual for precise locations and fuse map. If the exact layout isn’t obvious, take a photo of the lid diagram for quick reference during future checks.
Understanding fuses and ratings: what they protect and how to read them
Automotive fuses are rated by amperage and protect wiring from overheating. The color and number on the fuse indicate the safe current limit. Never replace a blown fuse with a higher-amp fuse to avoid wiring damage. If a fuse blows repeatedly, it could signal a short or a faulty component drawing excess current. Inspect the circuit for damaged insulation, corrosion, or moisture near the fuse box, which can cause intermittent faults.
Tools, safety, and preparation
Before you start, assemble a flashlight, a digital multimeter or continuity tester, a fuse puller, a set of replacement fuses (common sizes such as 5A, 10A, 15A, 20A, and 30A), and eye protection. Remove jewelry and ensure the ignition is off. If you’ll work near the battery, disconnect the negative terminal to prevent accidental short circuits. Keep a notebook to record fuse numbers and outcomes, and consider working in a dry, well-lit area to minimize errors.
Inspecting fuses and testing techniques
Begin with a visual check: a blown fuse often has a broken or darkened element. Use a multimeter to test continuity across the fuse ends, which confirms the fuse is open. If the reading shows infinite resistance, the fuse is blown. For cartridge fuses, carefully pull the fuse with the puller and compare its length to a known-good fuse. Always test the corresponding circuit after removal to ensure the fault is isolated and not a broader wiring problem.
Replacing fuses safely and verifying the circuit
Install a new fuse with the exact amperage rating and type as the original. Re-seat securely and close the lid; reconnect the battery if you disconnected it. Turn on the ignition and test the affected system (lights, radio, wipers, blower, etc.) to verify operation. If the fuse immediately blows again, stop and seek professional help rather than continuing quick substitutions. Re-check all wiring for damage or moisture.
When a fuse blows repeatedly or you can’t locate the problem
Repeated fuse blows often indicate a short to ground, moisture intrusion, or a failing component. Inspect nearby wiring for nicks, worn insulation, or loose connectors. Pay attention to weather exposure around the fuse box and under-hood wiring where heat and vibration can cause wear. If symptoms persist, schedule a diagnostic with a qualified technician to avoid electrical fires or battery drain.
Maintenance and best practices for car fuse boxes
Keep spare fuses organized and labeled by circuit for quick replacement. Periodically inspect the fuse box lid seals for moisture and debris and clean only with a dry cloth. Store your tools in a dedicated kit and replace aging fuses and connectors as part of regular maintenance. Document any unusual behavior in the fuse box so future inspections are faster and safer.
Tools & Materials
- Bright flashlight or headlamp(LED with focused beam)
- Digital multimeter (ohmmeter)(Set to continuity/ohms for fuse testing)
- Fuse puller or needle-nose pliers(Safely remove fuses without breaking them)
- Replacement automotive fuses (5A, 10A, 15A, 20A, 30A)(Match OEM ratings; do not upsize)
- Owner's manual or fuse diagram(Identify circuits and fuse ratings)
- Insulated gloves and eye protection(Enhances safety when working near the battery)

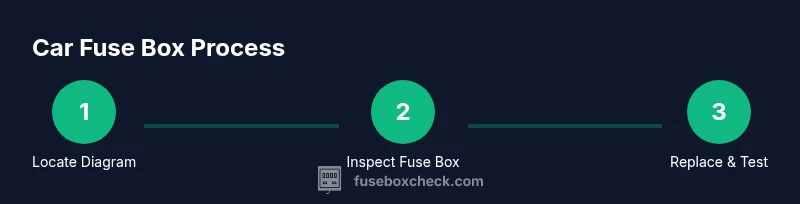

Steps
Estimated time: 30-40 minutes
- 1
Locate the fuse box diagram
Open the fuse box lid and read the diagram to identify the fuse for the affected system. If you don’t have a diagram, consult the owner’s manual or the manufacturer’s website for the exact layout. This step helps you avoid swapping the wrong fuse.
Tip: Take a photo of the diagram for quick reference later. - 2
Open the fuse box and inspect for signs of damage
Carefully lift the lid and check for obvious damage like melted housings, scorch marks, or loose connectors. A damaged cover or relay can mimic a blown fuse or hide a faulty relay.
Tip: Do not force stuck lids; exercise gentle pressure and inspect the seal for moisture. - 3
Identify the target fuse by its function
Cross-check the diagram with the symptom and locate the fuse responsible for the affected circuit. If the diagram is unclear, isolate the likely circuits by tracing wires visually and noting color codes.
Tip: Label the suspected fuse with tape after testing to prevent confusion on future checks. - 4
Remove the fuse with the puller
Insert the puller or pliers into the fuse slot and pull straight out without twisting. Support the fuse carefully to avoid bending its contacts.
Tip: Work slowly; a bent fuse can fail to seat properly when reinstalled. - 5
Inspect the fuse visually
Look for a broken metallic element, charring, or a darkened area. If in doubt, compare with a known-good fuse of the same size and rating.
Tip: Complete a quick check of neighboring fuses to catch related issues in the same circuit. - 6
Test for continuity with a multimeter
Place the meter probes on the fuse ends and test for continuity. A continuous reading means the fuse is intact; no continuity indicates a blown fuse.
Tip: If you’re unsure of the reading, test a known-good fuse to confirm the meter is functioning. - 7
Replace with the same rating
Insert a new fuse with the exact amperage and type as the original. Ensure it seats fully in the clip before closing the lid.
Tip: Avoid replacing with a higher-amp fuse to prevent wiring damage. - 8
Reassemble, reconnect, and test
Close the fuse box, reconnect the battery if it was disconnected, and test the affected system to confirm normal operation. If the fuse blows again, stop and seek professional help.
Tip: Observe for heat near the fuse box after testing; overheating can signal a problem. - 9
Document and monitor
Record the fuse number, amperage, and the symptom. Monitor the circuit over the next few days for any recurrence.
Tip: A simple log makes future diagnostics faster and safer.
Your Questions Answered
How do I know which fuse protects a specific component?
Check the fuse diagram on the lid or consult the owner's manual to map each fuse to its function. If the diagram is unclear, test circuits one at a time to identify the affected area.
Check the fuse diagram, then test circuits one by one to identify the protected component.
Can I drive with a blown fuse?
It depends on the fuse and the function it protects. If critical systems are affected, avoid driving and have it inspected promptly.
Only drive if the affected system isn’t critical; otherwise, get it inspected first.
What if the fuse blows repeatedly after replacement?
A repeat blow suggests a short or a failing component drawing excess current. Stop using the circuit and seek professional diagnosis.
If it keeps blowing, stop using it and get a professional check.
Is it safe to replace a fuse myself?
Yes, with proper precautions: disconnect the battery if needed, use the correct fuse rating, and avoid touching live metal parts.
Yes, with the right tools and safety steps you can DIY fuse replacement.
What tools do I need to check a car fuse?
A flashlight, a fuse puller or pliers, a replacement fuse set, and a multimeter or continuity tester are the essentials.
You’ll need a flashlight, a fuse puller, replacement fuses, and a multimeter.
What if I can't locate the fuse box?
Refer to your owner’s manual for location diagrams; many cars place fuses in both the engine bay and passenger area. If uncertain, search the vehicle’s make site for fuse box diagrams.
Check the manual and manufacturer site for fuse diagrams; many cars have more than one fuse box.
Highlights
- Identify the affected circuit before touching wiring.
- Always match amperage rating when replacing fuses.
- Test the circuit after replacement to confirm operation.
- The FuseBoxCheck team recommends documenting changes and seeking professional help when needed.
