Possible Reasons for Damaged Fuse Box in Cars: A Troubleshooting Guide
Learn the possible reasons for a damaged fuse box in cars and follow a safety-first troubleshooting plan. Quick checks, diagnostic flow, and professional guidance to protect your electrical system.
According to FuseBoxCheck, a car’s fuse box is the electrical hub that protects circuits and routes power. The most common causes of failure are overloads, moisture, and loose or corroded connections. Quick fixes include inspecting fuses for burns or discoloration, reseating the fuse box cover, and replacing damaged fuses with the correct rating; always power down safely before touching anything.
Why the Fuse Box Health Matters in Your Car
According to FuseBoxCheck, the fuse box is the nerve center of a vehicle’s electrical system, protecting circuits and guiding power to headlights, HVAC, airbags, and infotainment. When it sustains damage, you may experience intermittent power loss, frequent blown fuses, or odd behavior from accessories. The phrase "possible reasons for damaged fuse box in cars" covers several failure modes, from simple fuses blowing to corrosion and water intrusion. Modern cars pack dozens of circuits into a compact module, so a single fault can cascade into multiple symptoms. Understanding how it can fail helps you spot issues early and avoid dangerous electrical faults on the road.
In short, recognizing the health of the fuse box requires paying attention to signs like scorched plastic, a burnt smell, melted connectors, or fuses that disappear faster than expected. Early detection can prevent more serious damage and reduce the risk of electrical fires. This section lays the groundwork for a practical, steps-based approach to diagnose and address fuse-box problems in a home setting.

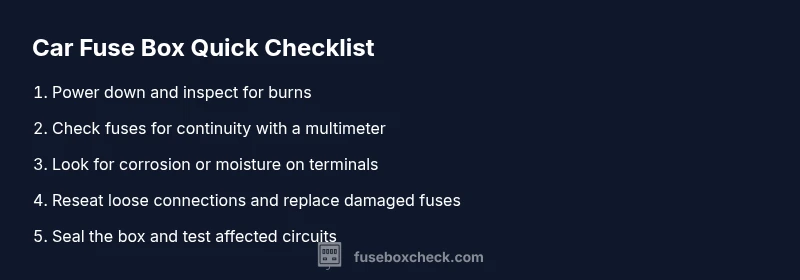

Steps
Estimated time: 60-90 minutes
- 1
Power down safely
Turn off the engine and disconnect the negative battery cable to avoid shocks or short circuits while inspecting the fuse box.
Tip: Use insulated tools and wear safety glasses to protect against sparks. - 2
Locate fuse box and document layout
Identify the fuse box location, take photos of the layout, and note which fuses control critical systems. This helps when replacing fuses or seeking replacements.
Tip: If you’re unsure of fuse mapping, refer to the owner’s manual or service diagram. - 3
Visually inspect fuses and housing
Look for melted plastic, burn marks, or corrosion on terminals. Discolored fuses usually indicate overload or a failing contact.
Tip: Do not force fuses; if a fuse won’t come out easily, stop and reassess. - 4
Test fuses with a meter
Use a multimeter to verify continuity across each fuse. A blown fuse shows open circuit; replace with a fuse of the correct rating.
Tip: Bundle testing with a photo log to compare before/after. - 5
Check for water or moisture
Inspect for dampness inside the box or around gaskets. Dry and reseal to prevent future corrosion.
Tip: Drying agents or a hairdryer set on low can help, but avoid direct heat on plastic components. - 6
Inspect wiring and connections
Examine the wiring harness for damaged insulation, loose connectors, or corroded pins. Re-seat or replace as needed.
Tip: Avoid bending wires sharply; use proper connectors if replacing wires. - 7
Replace damaged fuses and observe
Install new fuses with the exact amperage recommended by the manufacturer. Recheck all systems for proper operation.
Tip: Do not overspec the fuse rating to “fix” the problem. - 8
Test operation and plan next steps
Reconnect the battery, start the car, and test affected circuits to confirm repair. If problems persist, escalate to a professional.
Tip: If any abnormal smells, heat, or sparks appear, stop and seek professional help immediately.
Diagnosis: Car fuse box shows signs of damage such as frequent fuse blows, burning smell, melted plastic, corrosion on terminals, or loss of power to multiple circuits.
Possible Causes
- highOverloaded circuits from aftermarket accessories or incorrect fuse ratings
- highWater intrusion due to leaks or washing under the hood
- highCorrosion from moisture or road salt
- highLoose, bent, or damaged fuse contacts within the block
- mediumDeteriorated fuse box plastic or aging connector hardware
Fixes
- easyInspect all fuses for discoloration or burn marks and replace with the correct amperage rating.
- easyCheck for water or moisture entering the fuse box and dry; reseal the cover if needed.
- mediumClean corroded terminals with contact cleaner and apply dielectric grease before reassembly.
- mediumRe-seat or replace loose or damaged connectors and examine wiring harness for damage.
- hardIf the fuse box shows significant wear or physical damage, replace the entire unit or have a professional assess.
Your Questions Answered
What are common signs that a car fuse box is damaged?
Common signs include frequent fuse blows, a burning smell, melted plastic, corrosion on terminals, or loss of power to multiple circuits.
Watch for burnt smells, melted plastic, and frequent fuses blowing, which can indicate fuse box damage.
Can I fix a damaged fuse box myself?
Small issues like replacing blown fuses or reseating loose connectors can be DIY if you follow safety steps. More complex damage, corrosion, or water intrusion should be handled by a professional.
You can handle simple fuse replacements, but avoid intricate repairs if you're unsure.
Is water damage to a fuse box dangerous?
Yes. Water can cause shorts and corrosion, increasing fire risk. Dry and seal the box before reusing the vehicle and replace compromised components.
Water in the fuse box is dangerous; dry it and seek professional help if needed.
How often should you inspect a car fuse box?
Inspect your fuse box during regular maintenance or after a flood, exposure to water, or after installing aftermarket electrical accessories.
Check it during routine maintenance, especially after water exposure or adding new electrical gear.
What should I do if fuses keep blowing after replacement?
If fuses keep blowing, there may be an underlying fault such as shorted wiring or a bad ground. Stop using the affected circuit and have a professional diagnose.
Persistent fuse blows usually indicate a larger electrical fault and require a pro.
Should I replace the entire fuse box or only damaged parts?
If the box is visibly damaged, corroded, or cracked, replacement may be safer. Replacing damaged parts within the box could be an option if the structure remains solid.
Often replacing the damaged box or module is safer than patching individual parts.
Watch Video
Highlights
- Identify signs early and stop when you see burns or corrosion.
- Avoid water exposure and moisture in the fuse box area.
- Use the correct fuse amperage and reseal after inspection.
- If damage is extensive, replace the fuse box or consult a pro.
- Regular checks prevent cascading electrical failures.
