Aftermarket Fuse Box for Accessories: DIY Install Guide
Learn to select, wire, and install an aftermarket fuse box for accessories with load calculations, safe routing, and troubleshooting tips for reliable power expansion.
You will learn how to select, wire, and install an aftermarket fuse box for accessories, calculate the expected load, and plan safe routing. The guide covers safety steps, common mistakes, and best practices for car and home projects. Before you start, confirm compatibility with your wiring, note fuse ratings, and gather essential tools. This process emphasizes safety, compliance, and reliable operation.
What is an aftermarket fuse box for accessories?

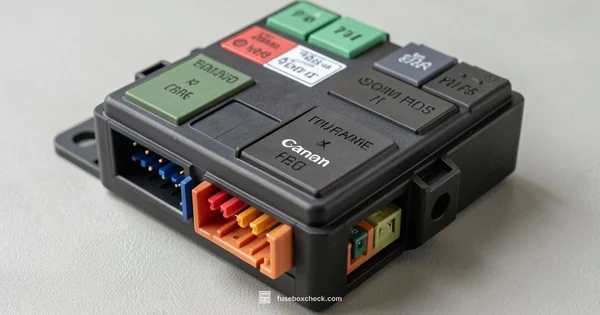

An aftermarket fuse box for accessories is a dedicated power distribution module that adds individual circuits for added gear—dash cams, off-road lights, battery chargers, or fans—without overloading the vehicle’s stock wiring. It sits between the battery and the loads, delivering protected power through individual fuses and a clearly labeled feed. According to FuseBoxCheck, using a purpose-built fuse box helps isolate new circuits from factory harnesses, aiding diagnosis and preventing a cascading electrical issue if a fuse blows. When selecting a unit, look for a layout that fits your space, weather resistance for under-hood mounting, and an amperage rating that matches your planned loads. A well-chosen aftermarket fuse box for accessories streamlines troubleshooting since each circuit has its own fuse.
Why install an aftermarket fuse box?
Adding accessories often means more wiring and more fuses, which can clutter the dash and complicate diagnostics. An aftermarket fuse box provides a clean, modular approach: each device has a dedicated circuit with its own fuse, making it easier to isolate problems and reduce feedback into the main electrical system. This separation also protects the vehicle’s original circuits from overload and minimizes the risk of blowing multiple fuses during a high-load event. FuseBoxCheck notes that practical installations improve reliability, reduce troubleshooting time, and support future expansion without reworking the entire wiring harness.
Key considerations before you start
Before you touch any wires, list every accessory you plan to power and estimate their draw. Consider voltage stability, battery ranking, and how long each device runs. Evaluate space constraints for the fuse box location, accessibility for fuse changes, and exposure to heat, moisture, and vibration. Ensure you have the correct wire gauge, appropriate fuses, and a reliable grounding point. Planning ahead helps prevent common mistakes like undersized feeders, shared grounds, or routing wires through hot engine compartments. Finally, verify compatibility with your vehicle’s electrical system and any applicable local safety standards.
How to choose the right fuse box
There are several fuse box families to consider: primary fuse blocks, distribution blocks with integrated relays, and compact multi-circuit units. For most DIY car projects, a blade-style or modular block with a built-in main input and clearly labeled outputs is ideal. If you plan high-draw loads (winches, light bars, subwoofers), ensure the unit supports higher amperage or add external relays for peak loads. Weatherproof enclosures are essential in exposed locations, while compact footprints fit behind panels. Also weigh the wire harnesses and terminal types included, as some sets use push-on terminals while others require ring terminals or quick-disconnects. Remember to plan for future expansion and avoid overloading a single circuit.
Wiring plan and load calculation
A solid plan starts with calculating the total potential current from all planned devices. List each accessory, its current draw (in amps), and the expected duty cycle. Add a 15–25% safety margin for startup surges and aging components. Choose fuse sizes that protect each circuit based on the device and wiring gauge, not on the load of all devices together. Use a dedicated feed from the battery or an existing, appropriately fused supply, and route wires to avoid heat sources and moving parts. Document the plan with a wiring diagram that shows each circuit’s fuse rating and color-coded wires for quick reference during maintenance.
Safety, wiring codes, and compliance
Electrical work carries risk, including shocks, short circuits, and fire hazards. Always disconnect the battery before handling power components and wear safety gear. Do not bypass fuses or mix circuits on a single feed. Follow local regulations and vehicle manufacturer guidelines; some jurisdictions require professional checks for major modifications. Use correct wire gauge and insulated connections, and secure all wires with strain reliefs and protected conduits when necessary. If you’re unsure about load calculations or how to integrate with the alternator’s output, consult a qualified tech or an electrician. FuseBoxCheck recommends documenting all modifications for future service and inspection.
Maintenance and troubleshooting
After installation, periodically inspect fuses, terminals, and connections for signs of corrosion or loosening. A loose ground or oxidized contact can create resistance, heat, and intermittent failures. Test each circuit with a multimeter to verify voltage and check that fuses aren’t tripping under normal operation. Keep spare fuses of the correct rating in a labeled container. If a circuit repeatedly blows, re-check load estimates, wiring gauge, and routing for pinch points or chafing. Maintain a clean, organized layout so future checks and upgrades are quick and safe.
Tools & Materials
- Aftermarket fuse box for accessories(Choose a unit with separate fuses, rated for your total load)
- Automotive fuses and fuse taps(Include a spare set for unexpected additions)
- Wire (appropriate gauge for each circuit)(Common gauges: 14 AWG for small devices, 12 AWG or thicker for high-draw devices)
- Battery terminal connectors and ring lugs(Weatherproof if under-hood routing)
- Relay(s) for high-current devices(Optional for high-draw accessories)
- Crimping tool and wire strippers(Quality crimp connectors ensure reliability)
- Heat shrink tubing and electrical tape(For insulation and moisture protection)
- Electrical dielectric grease(Prevents corrosion on terminals)
- Multimeter(Check voltage and continuity)
- Screwdrivers, size set(Flat and Phillips for panels and terminals)
- Cable ties and zip ties(Keep harnesses tidy and secure)
- Weatherproof enclosure (if under hood)(Protects from moisture and dust)
- Silicone sealant or gasket maker(Adds moisture protection around entries)
- Safety gear (gloves, eye protection)(Protect during cutting and crimping)

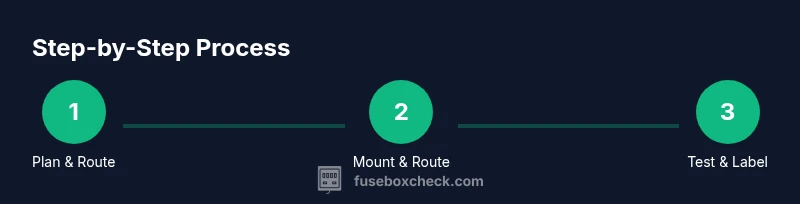

Steps
Estimated time: 60-120 minutes
- 1
Plan load and routing
Assess accessories and estimate current draw for each. Create a routing plan that avoids heat sources and moving parts, and sketch a wiring diagram showing fuse sizes for each circuit. This upfront planning reduces rewiring later and helps you stay within the vehicle’s electrical limits.
Tip: Double-check startup surges and leave a 20% margin for safety. - 2
Disconnect the battery
Before touching any wiring, disconnect the negative battery terminal to prevent shorts and electric shocks. This prevents accidental grounding while you route cables and mount components.
Tip: Use a non-conductive tool to touch the terminal and avoid metal jewelry nearby. - 3
Mount the fuse box securely
Choose a location that is dry, dry, and accessible for fuse changes. Use hardware appropriate for the surface material, such as stainless screws for metal panels, and ensure it is not in contact with sharp edges.
Tip: Leave clearance for wiring and heat dissipation; avoid cramped spaces. - 4
Route the main power feed
Run a protected power feed from the battery or existing power source to the fuse box. Use a gauge that can handle the maximum combined draw and protect it with a main fuse near the source.
Tip: Wrap wires to avoid contact with hot engine parts and secure with clamps. - 5
Connect the main feed to the fuse box
Attach the main feed to the fuse box input using proper terminals and a protective crimp. Verify polarity and secure connections with heat shrink tubing for moisture resistance.
Tip: Inspect for any loose connections before powering up. - 6
Add circuits with correct fuses
Wire each accessory to its own fuse slot with fuse values matched to the device and wiring gauge. Use proper connectors and keep circuits organized and labeled for future maintenance.
Tip: Do not reuse high-amp fuses for low-draw devices. - 7
Ground the fuse box
Create a solid ground connection to the vehicle chassis or negative battery post. A clean, low-impedance ground ensures stable operation and prevents parasitic draw.
Tip: Clean the grounding point with a wire brush before attaching the ring terminal. - 8
Test circuits and verify operation
With the battery reconnected, test each circuit with a multimeter and activate each accessory to confirm proper voltage and fuse protection. Check for heat at connections and secure any loose wires.
Tip: Keep a spare fuse on hand for immediate replacements. - 9
Label and finalize
Label each circuit on the fuse box cover and document the wiring diagram. Reassemble panels, tidy routing, and perform a final safety check.
Tip: Take photos for future reference and updates.
Your Questions Answered
Is it legal to install an aftermarket fuse box in a car?
In most regions, it is legal to install an aftermarket fuse box if you follow local electrical codes and vehicle manufacturer guidelines. Always check your jurisdiction's rules and, if in doubt, consult a licensed technician. Ensure the installation does not interfere with airbags or essential vehicle systems.
It's generally legal to install an aftermarket fuse box if you follow local codes and the vehicle's guidelines. If you're unsure, consult a licensed technician.
What gauge wiring should I use for a new accessory fuse box?
Choose wire gauge based on the maximum current of each circuit and the distance run. Smaller accessories may use 14 AWG, while higher-draw devices may need 12 AWG or thicker. Always protect with appropriate fuses sized for the wire and device.
Use the wire gauge that matches each device's current, typically 14 or 12 AWG for most accessories, and protect with proper fuses.
Can I install this myself without a professional?
Yes, a careful DIY approach is possible for non-critical additions with basic tools and safety precautions. If you add high-draw devices, or if the vehicle has airbags or complex electrical systems, consider professional assistance to avoid safety risks.
You can DIY non-critical additions, but for high-draw devices or complex systems, seek professional help.
How do I determine the fuse ratings for each circuit?
Fuse ratings should match the maximum current of each device and the wiring gauge. Start with device ratings, then apply a safe margin for startup surges. Do not Oversize fuses just to avoid replacing them.
Match fuses to each device's current, allowing a margin for startup surges, and don't oversize to bypass protection.
What are common safety hazards I should watch for?
Common hazards include loose connections, corroded terminals, and routing wires across hot components. Ensure secure mounting, proper insulation, and avoid pinched or exposed conductors. Always disconnect power during work.
Watch for loose connections, corroded terminals, and hot-wire routes; secure and insulate everything, and always disconnect power when working.
Watch Video
Highlights
- Plan circuits and load before wiring.
- Protect each accessory with its own fuse.
- Ground connections must be solid and corrosion-free.
- Label all circuits for future maintenance.
- Test thoroughly and document changes for safety.
