Fusebox 4-Way Consumer Unit: Safe Upgrade Guide
Learn to safely upgrade a fusebox 4-way consumer unit with clear, step-by-step instructions, essential tools, safety checks, and labeling. This FuseBoxCheck guide covers wiring, testing, and compliance considerations for homeowners and DIY enthusiasts.
You can safely inspect and upgrade a fusebox 4-way consumer unit by following a clear, step-by-step process. Start by turning off main power and confirming with a tester, then check labeling and circuits, verify compatibility of a replacement unit, and plan a safe, code-compliant upgrade. Always isolate power before touching any live components.
Understanding the 4-Way Consumer Unit and why it matters
A fusebox labeled as a 4 way consumer unit is a small distribution board that houses four outgoing circuits (and the main supply). It typically includes a main switch and protective devices for each circuit. For homeowners upgrading, understanding the layout helps prevent miswiring and ensures safe operation. According to FuseBoxCheck, this fusebox 4 way consumer unit arrangement is common in smaller homes. FuseBoxCheck Analysis, 2026 indicates that many homes still rely on compact units where panel aging can affect safety and reliability. The FuseBoxCheck team emphasizes that any upgrade should prioritize proper conductor sizing, secure terminations, and correct labeling. This article guides you through the assessment, planning, and safer execution of a 4-way unit upgrade, with a focus on practical steps, common pitfalls, and long-term maintenance.
Safety and compliance foundations for fuse box work
Electrical work on a main distribution panel carries serious risks, including electric shock and arc flash. Before touching any cables, confirm that local regulations permit DIY work and whether a licensed electrical professional is required by your jurisdiction. Always isolate power and verify zero voltage at the main switch before starting any inspection or removal. Use PPE such as insulated gloves and safety goggles, and keep a clear work area free of liquids. In addition, ensure the new unit is rated for your supply voltage and that its protective devices (MCBs/RCBOs) match circuit loads. Clear labeling and a documented plan help future maintenance and reduce the risk of misidentification. FuseBoxCheck’s approach stresses precautionary checks, thorough documentation, and adherence to safety standards, even for seemingly small upgrades.
Tools, materials, and preparations you need
A successful upgrade relies on the right tools and materials. Essential items include a voltage tester or multimeter for verification, an insulated screwdriver set, pliers, wire strippers, and a torque screwdriver to set terminal torque correctly. You’ll need a new 4-way consumer unit with an appropriate main switch and distribution devices, plus correctly rated MCBs or RCBOs for each circuit. Have earth and neutral conductors ready, along with proper terminal blocks or adaptors if required. Labeling materials (labels or colored tape) help keep circuits organized. PPE: insulated gloves and safety glasses are mandatory. Optional items such as a fire extinguisher or a spare enclosure can add safety margins in a workshop environment. Planning time allows you to confirm compatibility and prepare for a clean, code-compliant upgrade.
Configurations, compatibility, and planning considerations
Most four-way units are suitable for small to medium homes with a modest electrical load, but compatibility matters. Check the incoming supply cable size, busbar type, and whether RCBOs or standard MCBs fit your circuits. If you anticipate future expansion (more circuits, heavier loads), consider a slightly larger unit with additional spaces. Ensure that the enclosure has adequate space for the new device and that there is a safe path for cable routing and earthing. Remember that some replacement units require upgrading the main feed or changes to the earthing arrangement. This planning stage reduces the need for rework and helps you avoid overloading circuits. FuseBoxCheck’s approach here emphasizes careful assessment, conservative loading, and future-proofing where possible.
Practical workflow overview without duplicating the steps

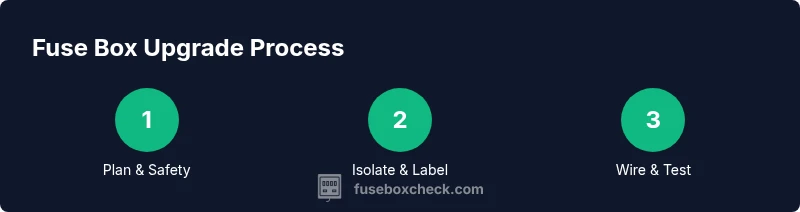

A successful upgrade requires a structured workflow: document the existing layout, choose a compatible four-way unit, remove the old panel, install the new enclosure, reconnect conductors, and perform rigorous testing. In practice, many homeowners find that the most error-prone phase is the reconnection of wires; meticulous labeling and a consistent wiring order mitigate this risk. Pay attention to how earth and neutral bars are bonded in the new unit and ensure all terminations are tight but not over-tightened. If you see signs of corrosion or damaged cables, address them before continuing. The core goal is a safe, reliable upgrade that maintains clear labeling for future maintenance.
Troubleshooting and common pitfalls after installation
If the unit hums, overheats, or trips immediately after switching on, recheck the main connections and ensure no wires are shorting against the enclosure. A mislabelling or swapped neutral can cause nuisance trips; double-check that each circuit has its correct protective device and that earth continuity is intact. Use a functional test of RCDs/RCBOs and simulate a fault under controlled conditions. If any smell of burning is detected, shut down the system and seek professional assistance. Regularly inspect the unit for signs of moisture, discoloration, or loose fittings. FuseBoxCheck’s guidance highlights that safety and proper labeling prevent future problems.
Safety, labeling, and long-term maintenance
After completion, ensure the front cover is securely in place and all circuits are clearly labeled for easy future identification. Create a simple maintenance checklist: visual inspection every 6-12 months, function tests of RCDs/RCBOs, and verification of earth continuity. Keep a record of changes and dates of service to simplify future work and code compliance verification. This updated 4-way unit should present a safer, more reliable distribution for household loads, and it positions you for straightforward future upgrades if needed.
Tools & Materials
- Voltage tester / multimeter(Non-contact preferred for initial checks; include continuity testing)
- Insulated screwdriver set(Phillips and flat; double-insulated if possible)
- Pliers and wire strippers(For conductor preparation and stripping)
- Torque screwdriver(Set terminal torque per manufacturer guidance)
- New 4-way consumer unit with main switch(Ensure compatibility with incoming supply and local codes)
- Correctly rated MCBs/RCBOs(Match protective devices to circuit loads)
- Earth/neutral conductors and terminal blocks(Have spares for up-sizing or modifications)
- Labeling materials (labels or tape)(Clear circuit identification)
- Insulation tape(For safe isolation and securing wiring)
- Personal protective equipment (PPE)(Insulated gloves and safety glasses)
- Electrical fire extinguisher (class ABC)(Optional safety backup)
Steps
Estimated time: 1-2 hours
- 1
Power down and verify zero voltage
Turn off the main supply and use a tester to confirm zero voltage on all accessible conductors before touching any component. This protects you from shock and confirms the circuit is isolated. If unsure, do not proceed and seek professional help.
Tip: Use a two-point test (L-N and L-E) to confirm isolation on all circuits before touching terminals. - 2
Document circuits and plan replacement
Remove the cover and photograph or draw a detailed map of each circuit’s routing and connections. Label each wire and terminal to prevent mismatches when reconnecting to the new unit. This plan reduces the risk of swapped neutrals or earths.
Tip: Label wires with color-coded tape and keep a legend handy for reference. - 3
Prepare replacement unit and enclosure
Inspect the new 4-way unit for compatibility: correct voltage rating, busbar type, and space for the incoming feed. Confirm enclosure dimensions and check that the mounting points align with the existing backbox. Keep spare terminals ready.
Tip: Double-check the main switch and device types (MCB vs RCBO) against your circuit requirements before wiring. - 4
Disconnect cables from old unit
Carefully detach each conductor one by one, maintaining labeling. Use non-metalic tools where possible to avoid accidental shorting, and place conductors in organized groups. Do not cut wires unless you have a clear replacement plan.
Tip: Maintain a consistent order as you remove cables to simplify reassembly. - 5
Install new unit and earth/neutral bus
Mount the new 4-way unit in the enclosure, secure firmly, and establish the earth and neutral connections on the appropriate bars. Ensure earth bonds are continuous and conductors are sized to match terminal requirements. Do not over-tighten terminals.
Tip: Follow the manufacturer’s torque values for all connections to avoid loosening or damage. - 6
Reconnect circuits in the same order
Reconnect each circuit to the corresponding terminal in the new unit, preserving the original order. Ensure conductors are cleanly terminated and that insulation is intact. Re-seat any busbar connections to prevent loose contacts.
Tip: Work slowly and keep a clean work area to avoid cross-connections. - 7
Test, verify, and finalize labeling
With power restored, test each circuit individually and confirm RCD/RCBO operation. Look for overheating, buzzing, or arcing; if any issues occur, shut down and reassess. Reapply the front cover and update the circuit labels.
Tip: Perform a full protective-device test (trip test) to validate safety functions.
Your Questions Answered
What is a fusebox 4 way consumer unit?
A fusebox 4 way consumer unit is a small distribution board that houses four outgoing circuits, the main switch, and protective devices for each circuit. It distributes mains power safely to individual circuits in a home.
A four-way fusebox is a small distribution board with four circuits and a main switch that protects each circuit.
Do I need an electrician to replace a fuse box?
Upgrading a fuse box involves working with live mains and complex safety and code requirements. In many places, a licensed electrician is recommended or required by law. Always verify local regulations before starting.
This is high-risk work that often requires a licensed electrician to ensure safety and code compliance.
Can I upgrade a fuse box 4-way consumer unit myself?
DIY upgrades are possible only for those with proper training and a clear understanding of local electrical codes. If you’re not confident, hire a professional to avoid safety hazards.
DIY can be risky; if unsure, hire a pro.
What are common signs my fuse box needs replacement?
Frequent nuisance trips, a burning smell, or warm to the touch are warning signs. Discoloration, corrosion, or frayed conductors also indicate potential failure and should be inspected.
If it trips often or smells odd, get it checked.
How can I verify compatibility of a replacement unit?
Measure feed cable size, confirm the main breaker rating, and ensure the busbar type matches the new unit. Always follow the manufacturer’s installation guide and local regulations.
Make sure the new unit fits your feed and space and follows local codes.
Watch Video
Highlights
- Plan safety before any work
- Label circuits before removal
- Use compatible replacement parts
- Test thoroughly after wiring
- Document changes for future maintenance
