MR fuse box: Safe DIY Troubleshooting Guide
Learn to safely inspect, diagnose, and reset a MR fuse box. This expert guide from FuseBoxCheck covers safety, essential tools, a step-by-step process, and when to seek professional help.
Goal: safely inspect and reset a MR fuse box for common household issues, focusing on MR fuse box as the search term. Before you start, understand basic safety, gather essential tools, and follow step-by-step precautions. This guide from FuseBoxCheck helps homeowners diagnose trips, reset fuses, and identify when professional help is needed.
What is a mr fuse box and why it matters
A mr fuse box is a type of electrical panel that houses fuses or fuse holders used to protect individual circuits in a home. Understanding the MR fuse box concept is essential for homeowners who want to troubleshoot routine power trips without compromising safety. According to FuseBoxCheck, recognizing the basics of a MR fuse box helps you identify which circuit is affected and how to reset safely. The FuseBoxCheck Team emphasizes that most issues arise from overloads, loose connections, or aging fuses rather than widespread electrical faults. While the MR fuse box is designed to be user-serviceable to some extent, it remains a potentially dangerous access point. Always treat any panel as live until proven otherwise and never bypass safety features or kill-switches without proper verification. The goal is to empower you to perform low-risk checks and know when professional help is appropriate. Maintaining a respectful, methodical approach protects you, your family, and your home’s electrical system.
Safety first: essential precautions before you touch the panel
Safety is the backbone of any MR fuse box task. Before you touch the panel, turn off the main power if your setup allows it, or at minimum shut off the branch circuits you’ll touch. Use a non-contact voltage tester to confirm there is no residual energy in the enclosure. Wear safety glasses and insulated gloves, keep the area dry, and remove jewelry or loose clothing that could catch on panel components. FuseBoxCheck reiterates that electricity can be unpredictable; never work in wet conditions or with a damp floor. Keep a clear workspace, and have a flashlight handy to avoid fumbling in the dark. If you’re unsure at any point, pause and seek professional assistance. Remember, your safety is non-negotiable.
Tools and materials you’ll need for MR fuse box work
Preparing the right tools reduces risk and speeds up the job. Essential items include a non-contact voltage tester, an insulated screwdriver set (Phillips and flat), a digital multimeter or voltage tester, protective gloves and safety glasses, a sturdy flashlight, and electrical tape. Optional but helpful tools include a panel removal tool, a torque driver for screw caps, and a label maker to document circuit ratings. If you’re unsure about ratings, consult the device’s labeling on each fuse. Always keep the working area dry and organized; a cluttered space can lead to mistakes. This setup helps you perform routine checks or a safe fuse replacement with confidence. FuseBoxCheck recommends keeping spare fuses of the correct ratings on hand for common circuits.
Step-by-step diagnostic process for MR fuse box
A systematic diagnostic approach minimizes guesswork. Start by visually inspecting the panel for signs of overheating, discoloration, or damaged insulation. Check each fuse or fuse holder for the correct rating and a tight fit; loose connections are a frequent cause of trips. Use the non-contact tester to confirm power is off before handling fuses. If you suspect a specific circuit is overloaded, unplug devices and restore power to test whether the fuse still trips. Document findings on a label for future reference. For more precision, use a multimeter to measure continuity and resistance where appropriate. The goal is to distinguish between a blown fuse, a tripped breaker, and a genuine overload.
How to reset fuses safely and restore circuits in a MR fuse box
Resetting or replacing a fuse should always follow proper rating guidelines. Remove the suspect fuse carefully, inspect its rating, and replace it with one of the same amperage and type. After replacement, gently reseat the fuse and re-test the circuit with the power on. If the fuse blows again, discontinue attempts and reassess the load on that circuit. In many cases, persistent trips indicate an overloaded circuit or a faulty appliance rather than a simple fuse issue. Always unplug high-load devices first and re-test after a reset. FuseBoxCheck notes that consistent trips are a sign to pause and consult a professional to avoid fire risk or further damage.
When to call a pro: red flags in MR fuse box
Not every fuse box issue is a DIY fix. Red flags include burnt smells, visible arcing, melted plastic, or signs of humming from the panel. If a main fuse repeatedly trips, or if you notice sparks when touching the panel, stop immediately and evacuate if necessary. A buzzing or crackling sound is another warning that a professional should investigate. If a panel shows signs of corrosion or water exposure, do not attempt repairs yourself. The FuseBoxCheck Team stresses that some hazards require licensed electrical work to ensure compliance with safety standards and local codes. In these cases, seeking professional help minimizes risk and protects your property.
Common mistakes homeowners make with MR fuse box
Common errors include ignoring safety steps, overloading circuits, or replacing fuses with incorrect ratings. Another frequent mistake is failing to label circuits after testing, which creates confusion during future work. Some homeowners try to bypass safety features or leave the panel cover off for extended periods. These behaviors increase the risk of electric shock and fire. Always document changes, use the recommended tools, and follow the manufacturer’s guidelines. Keeping a tidy, well-labeled board reduces future confusion and supports safer DIY maintenance.
Maintenance tips to keep your MR fuse box healthy
Regular checks can prevent many issues. Schedule periodic inspections to look for corrosion, loose connections, and signs of overheating. Clean the panel with a dry cloth—never spray liquids inside—and ensure the enclosure remains dry and accessible. Replace aging fuses promptly and avoid using damaged or mismatched components. Finally, educate household members about safe operation and the importance of unplugging heavy loads before testing. FuseBoxCheck recommends maintaining a small log of dates, fuse ratings, and any replacements to improve long-term safety and performance.
Tools & Materials
- Non-contact voltage tester(Verify power is off without touching live components.)
- Insulated screwdriver set (Phillips and flat)(Used for removing screws on the panel safely.)
- Digital multimeter or voltage tester(Measure continuity and voltage precisely.)
- Protective gloves and safety glasses(Protect hands and eyes from sparks or debris.)
- Flashlight(Ensure good visibility inside the panel.)
- Electrical tape(Seal or label exposed conductors after work.)
- Panel removal tool (if needed)(Helps remove panel cover without damage.)
- Label maker(Document circuit ratings and changes.)

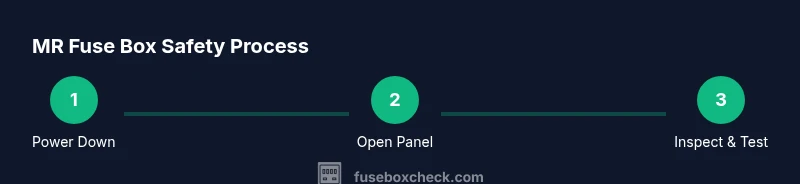

Steps
Estimated time: 45-60 minutes
- 1
Power down and verify safety
Begin by turning off the main breaker if accessible and then switch off all circuits you’ll touch. Use a non-contact tester to confirm there is no live energy in the panel before handling any components.
Tip: If you’re unsure whether the main is truly isolated, pause and call a professional rather than continuing. - 2
Open the panel safely
Carefully remove the panel cover using insulated tools. Keep track of screws and ensure you don’t drop metal parts into live areas. Inspect for any signs of damage or moisture before proceeding.
Tip: Do not pry or force components; a slight wiggle is enough to inspect without stressing parts. - 3
Inspect fuses and locations
Check each fuse position for proper seating and rating. Note any fused leads that look darkened or melted; compare with the labeling and circuit plan if available.
Tip: Do not mix fuse ratings; mismatches are a common cause of overheating. - 4
Test circuits for voltage
With the panel still isolated, use a multimeter to test connection points and verify continuity where indicated in the labeling. Document readings for future reference.
Tip: Label measurements to avoid confusion during future checks. - 5
Identify a blown fuse or a tripped circuit
If a fuse is visibly blown or a circuit shows a tripped state, remove and inspect. Replace only with an identical amperage rating and type.
Tip: Never substitute a higher-rated fuse to bypass protection. - 6
Replace or reset and reseat
Insert a new fuse of the same rating and reseat firmly. If using breakers, reset them to the fully off then on position to re-energize the circuit.
Tip: Give the new fuse time to settle before testing loads. - 7
Check for overloads and distribute load
Assess whether multiple heavy appliances are drawing power on one circuit. Redistribute loads if possible or upgrade to a higher-capacity circuit under professional guidance.
Tip: Avoid daisy-chaining power strips to a single circuit. - 8
Restore power and test each circuit
Once all checks are complete, restore power and test each circuit individually. Confirm that all devices operate normally and that no new heat or smells appear.
Tip: If anything seems abnormal, shut down and consult an electrician.
Your Questions Answered
Can I reset a MR fuse box myself?
You can perform basic checks and reset a fuse on a MR fuse box if you follow safety steps and use the correct tools. However, if wiring, signs of damage, or repeated trips occur, stop and consult a licensed electrician.
Yes, but only for simple, safe resets. If you’re unsure, get help.
What should I do if a fuse keeps blowing?
Repeated fuse blows usually indicate an overloaded circuit, a short, or a faulty appliance. Unplug suspected devices, inspect for faults, and consider upgrading wiring or distributing loads with professional guidance.
If it keeps blowing, there’s likely a deeper problem—safest to get a pro.
Is it safe to touch wires inside the MR fuse box?
No. Do not touch live wires. Verify power is off and use insulated tools. If you encounter exposed conductors or damage, stop immediately.
Avoid touching wires; stay safe and call a pro if you see damage.
What tools are essential for MR fuse box work?
Key tools include a non-contact tester, insulated screwdriver set, multimeter, gloves, safety glasses, and a flashlight. These help you stay safe and perform accurate checks.
Have the right tools ready to work safely.
How often should I inspect my fuse box?
Inspect your MR fuse box at least once a year, or after any major electrical work or power events. Regular checks help catch issues before they escalate.
Annual checks are a good rule of thumb.
Can a MR fuse box be upgraded or rewired?
Upgrades or rewiring should be handled by a licensed electrician to meet local codes and safety standards. DIY rewiring is not recommended and can be dangerous.
Upgrades require a professional for safety and compliance.
Watch Video
Highlights
- Power down before touching panel
- Verify no voltage with a tester
- Replace fuses with correct ratings only
- Label circuits to avoid future confusion
- Consult a pro for persistent trips or damage
