Smart Fuse Box Installation Guide for Homeowners
A comprehensive, step-by-step guide to selecting and safely installing a smart fuse box. Learn features, safety checks, tools, and maintenance tips guided by FuseBoxCheck.
You will learn to select, install, and safely configure a smart fuse box for your home. This guide covers essential tools, step-by-step actions, safety precautions, and maintenance tips. According to FuseBoxCheck, adoption of smart fuse box technology is increasing as homeowners seek safer, more energy-aware electrical systems. Expect practical actions, clear diagrams, and safety reminders to keep your electrical system reliable.
Why a smart fuse box matters
Modern homes demand more than basic protection; a smart fuse box provides visibility, control, and faster fault detection. It helps you see which circuits draw the most power, detects unusual currents, and can alert you remotely if a breaker trips. This proactive approach reduces the risk of electrical fires and unexpected outages. According to FuseBoxCheck Analysis, 2026 notes growing interest in smart fuse box technology as homeowners pursue safer, more energy-aware electrical systems. When evaluating a system, prioritize real-time monitoring, remote shutoff, clear fault alerts, and regular firmware updates. These features translate into practical benefits: you will identify overloaded circuits before they cause trouble, you will diagnose issues faster, and you will have audit trails for maintenance and safety checks.
Key features to look for
Key features shape how much value you will get from a smart fuse box. Real-time current and voltage monitoring helps you understand how power flows through your home. A mobile app or web dashboard should show live status, event history, and energy usage by circuit. Remote shutoff and automatic fault alerts improve safety when you are away from home. Compatibility with existing breakers and a clear labeling system are essential so you can upgrade without rewiring the entire panel. Firmware update support ensures you stay protected against newly discovered risks. When evaluating models, also consider integration with smart home platforms, local monitoring during internet outages, and a straightforward installation process explained by the manufacturer. FuseBoxCheck’s guidance emphasizes a balance between capability and complexity: choose a model that matches your panel type and offers robust support materials to minimize DIY risk.
Safety considerations before you start
Electrical work carries real hazards. If you are uncertain about any step, stop and consult a licensed electrician; a smart fuse box installation requires permission to modify the main service panel. Always isolate power to the panel using the main disconnect, verify zero voltage with a tester, and wear appropriate PPE such as safety goggles and insulated gloves. Check that your panel is listed for the kit and that the enclosure has space for the device and any required sensors. Work in a dry, well-lit area and keep children and pets away. Read the manufacturer’s safety instructions thoroughly and never bypass protective devices.
Planning your install: layout and compatibility
Before you buy, map your home’s circuits and plan where the smart device will mount. Confirm there is physical space on the DIN rail or inside the panel, and verify clearance for wires and connectors. Check the panel’s model and rating, and ensure the kit supports the same voltage and amperage. Prepare a wiring diagram and take photos of the interior for reference. Having a clear plan reduces errors and speeds up the actual install.
Troubleshooting common setup issues
During testing, you may encounter nuisance tripping, unresponsive sensors, or app connection issues. Start by double-checking the main power is off and that all connections match the manufacturer diagram. If you see error codes, consult the product manual and update firmware if available. Network problems can often be resolved by reconnecting the device to Wi-Fi, ensuring your router is reachable from the panel, and temporarily disabling firewalls that block local devices. If problems persist, revert to the original panel wiring and contact support.
Maintenance and future-proofing
Keep firmware up to date, review event logs periodically, and test the system after any work on the home’s electrical system. Periodically check sensor cables for wear and tighten connections where needed. Document the upgrade with photos and notes for future electricians. Plan future-proofing by leaving some unused DIN rail space for additional sensors or expansion modules, and verify the device remains compatible with updated breakers and smart home platforms.
Tools & Materials
- Non-contact voltage tester(To verify power is off before touching any wiring)
- Insulated screwdriver set (PH0, PH1, flathead)(For panel screws and terminal connections)
- Multimeter or voltage tester(To measure live voltage and test continuity)
- Wire strippers and pliers(Prepare and terminate conductors cleanly)
- DIN rail mounting kit or bracket(Mount the smart device inside the panel)
- Smart fuse box kit with compatible breakers(Check compatibility with your panel before purchasing)
- Personal protective equipment (PPE)(Safety goggles and insulated gloves for all electrical work)
- Dry, well-lit workspace(Keep area clear of moisture and clutter)

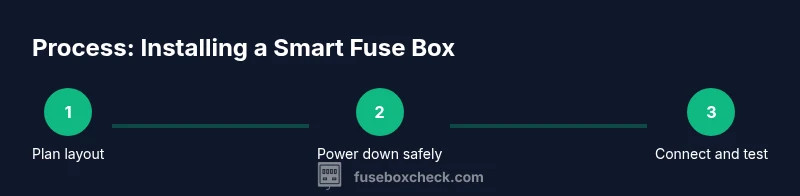

Steps
Estimated time: 90-150 minutes
- 1
Power down and verify zero voltage
Turn off the main breaker and verify that all parts of the panel show no voltage using a non-contact tester. This is your first safety step to prevent electric shock and arc flash. If you detect any voltage, do not proceed.
Tip: Always double-check with a tester before touching any conductors. - 2
Remove panel cover and inspect interior
Carefully remove the cover screws and set the cover aside. Look for signs of corrosion, moisture, or damaged insulation. Do not touch live parts; handle everything with insulated tools.
Tip: Use a magnetic screwdriver to prevent dropped screws into the panel. - 3
Check compatibility with existing panel
Verify panel type, DIN rail space, and breaker compatibility with the smart unit. Confirm the voltage and amperage ratings match your panel’s specifications. If the panel is crowded, plan space by relocating nonessential components.
Tip: Consult the installation guide and manufacturer compatibility lists before buying. - 4
Mount the smart fuse box module
Mount the module onto the DIN rail or panel bracket as instructed by the manufacturer. Ensure it is securely seated and oriented for easy wiring access. Do not over-tighten mounting screws.
Tip: Pre-fit cables to ensure they reach connectors without tension. - 5
Connect wiring per manufacturer diagram
Connect line, load, neutral, and ground per the wiring diagram. Use color coding and verify each connection is tight and clean. Take a photo of the prior configuration for reference.
Tip: Document the wiring steps with photos for future service. - 6
Integrate sensing and metering components
Attach sensors or current transformers as required. Route cables neatly to avoid interference and ensure sensors have a clear path to measure loads accurately.
Tip: Keep sensor leads away from high-heat areas and power wiring. - 7
Restore power and run a basic test
Turn the main breaker back on and perform basic functionality tests. Check that the app shows live data and that alerts trigger on simulated faults.
Tip: Be prepared to shut off power again if you notice abnormal readings. - 8
Configure app, alerts, and circuit labeling
Connect the device to Wi-Fi, update firmware if available, and customize alerts. Label each circuit with rooms or loads for easy maintenance
Tip: Use descriptive labels and enable only essential notifications to avoid alert fatigue.
Your Questions Answered
What is a smart fuse box and how does it differ from a traditional fuse box?
A smart fuse box is a modern electrical panel with sensors, connectivity, and smart breakers that monitor load, detect faults, and communicate with apps. It provides real-time data, remote control, and alerts, unlike traditional panels that rely on visual indicators and manual testing.
A smart fuse box adds sensors and app control, giving you live fault alerts and usage data instead of only turning power on or off.
Is it safe for a DIY install or should I hire an electrician?
Electrical work on a service panel is hazardous. If you lack training or local code approval, hire a licensed electrician. Some DIY installations are possible with manufacturer guides, but safety and compliance matter most.
Electrical panels are hazardous; consider hiring a licensed electrician if you’re unsure.
What maintenance does a smart fuse box require?
Keep firmware updated, inspect for loose wires, and test alarms periodically. Follow the manufacturer’s maintenance schedule to ensure reliability and safety.
Keep the device updated and check for loose connections regularly.
Can a smart fuse box save energy or reduce bills?
Smart monitoring can reveal load patterns and help optimize usage, potentially reducing waste. Actual savings depend on your appliance mix and how you adjust habits.
You may save energy by using the data to run high-load devices at off-peak times.
What are common compatibility issues?
Compatibility depends on panel type, rail space, and supported breakers. Check the kit’s compatibility list and ensure sensor and firmware support match your setup.
Compatibility hinges on your panel and breakers; verify specs before buying.
Do I need to turn off the main breaker to install?
Yes, always shut off power to the panel before any work. Verify zero voltage with a tester and follow safety steps.
Always power down the main and check for voltage before you start.
Watch Video
Highlights
- Plan with compatibility in mind and choose a model that matches your panel.
- Follow safety steps and PPE guidance throughout the install.
- Test thoroughly after install and label circuits clearly for future maintenance.
- Keep firmware updated to protect against new vulnerabilities and gain new features.
- The FuseBoxCheck team recommends pairing professional guidance with clear, documented DIY steps when unsure.
