Where Are the Fuses in a Fuse Box: A Practical Guide
Learn where to find fuses in a fuse box, distinguish fuse types, and safely inspect or replace a blown fuse with clear, homeowner-friendly steps.
To find the fuses, start at the main electrical panel located in often a basement, garage, or utility area. Open the door and read the labeling to identify fuse or breaker sections. If you have a fuse, replace blown cartridges with one of the same amperage; if you have breakers, flip the switch to OFF and then back to ON. Always shut off power before handling the panel.

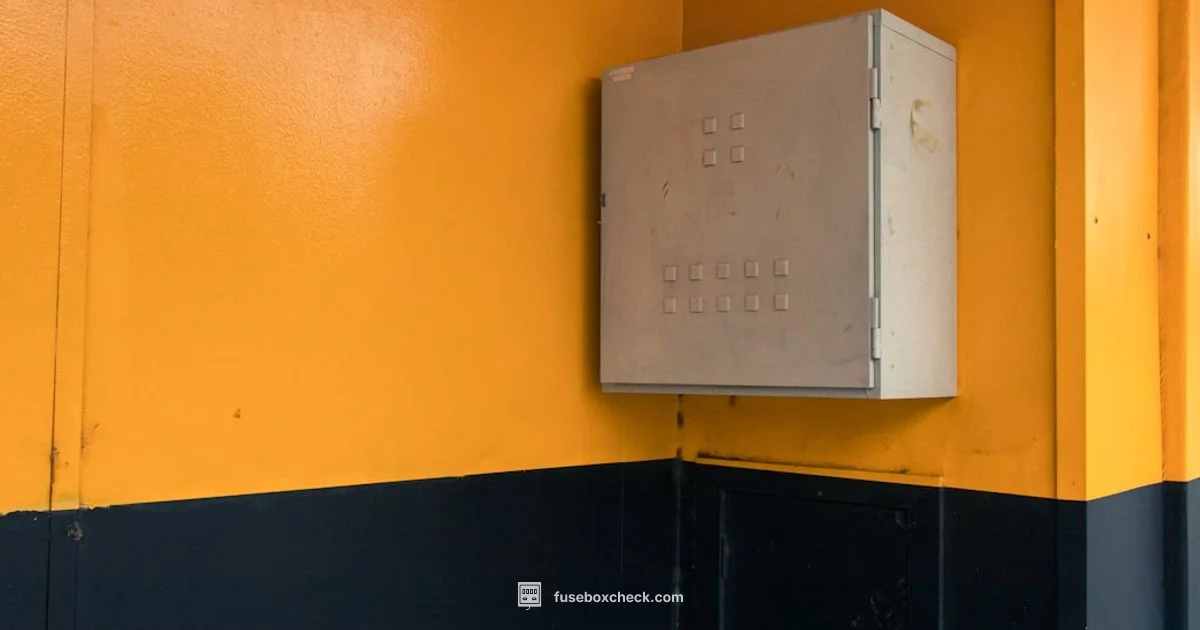

Understanding the fuse box layout and common locations
The question where are the fuses in a fuse box often starts with recognizing the basic layout of a home electrical panel. In older homes you may still find traditional cartridge fuses, while newer installations use circuit breakers. The fuse box is usually a metal cabinet with a hinged door that conceals the protective devices. Inside you will see a bank of fuses or a matrix of circuit breakers, each tied to a specific circuit in your home. Reading the labeling on the panel cover helps you map which device controls which room or appliance. For practical purposes, locating the fuse box is an early step in any troubleshooting, and knowing whether your system uses fuses or breakers affects your approach to maintenance and safety.
Traditional fuse boxes vs modern circuit breakers
Many homes built before the 1980s relied on cartridge or blade fuses, which protect wiring by containing a metal element that melts when overloaded. Modern homes typically use circuit breakers that trip and can be reset. Understanding this difference is key when assessing a fault. If you notice a blown fuse or a tripped breaker, you should identify which circuit was affected and avoid loading it beyond its rated capacity. Fuse boxes may require replacement fuses of the correct amperage, while breaker panels may need a reset or professional service if trips persist.
Typical locations in residential buildings
Fuse boxes are commonly tucked away in less conspicuous spaces such as basements, utility rooms, garages, or storage closets. In some homes, the main panel could be outside or in a rear hallway. If you own an older house, look for a smaller metal box with a removable cover near the main service entrance. If you have trouble locating it, check the building’s wiring diagram or consult the previous homeowner’s notes. The goal is to access the panel safely and confirm the type of protective device you are dealing with.
Safety foundations before you look inside
Safety is the top priority when dealing with a fuse box. Before you touch anything, switch off the main power at the service disconnect if possible. Stand on a dry surface and avoid working in wet areas. Use a non-contact voltage tester to verify there is no live voltage at the panel before removing any fuses or toggling breakers. Keep a flashlight handy in dim spaces and wear insulated gloves if available. If you smell burning plastic or notice melted components, evacuate the area and call a licensed electrician immediately.
Identifying fuse type and labeling inside the panel
Once the panel is open, inspect the labeling to determine which device corresponds to critical circuits. Cartridge fuses will look like small glass or ceramic cylinders with metal end caps, while blade fuses may appear as flat discs. Circuit breakers are toggles that move between ON and OFF or have a labeled status. If a fuse box uses a mix of devices, rely on the labeling and the color codes used by the manufacturer. Taking photos of the panel labeling can be a smart habit for future reference when diagnosing issues.
How to locate and inspect a fuse safely
To locate a fuse within the box, first ensure power is off. Remove the fuse cartridge carefully with a fuse puller or insulated tools if needed. Inspect the fuse element for a blown filament or a broken link. If you see a clear sign of damage, replace with a cartridge fuse of the same amperage rating, as indicated on the label or on the fuse holder. Do not replace with a higher rating to avoid overheating and potential fire hazards. After replacement, reassemble the panel and test the affected circuit.
Replacing a blown fuse safely and correctly
After powering down and confirming no voltage, remove the failed fuse and insert a replacement with the same amperage rating and type. Some cartridges have a screw-type cap; others pull straight out. Ensure the replacement sits firmly and that there are no loose parts. Close the panel door, restore power at the main disconnect, and test the affected outlets or lights. If the fuse keeps blowing, there may be an underlying fault, such as a short circuit or overloaded circuit, requiring professional inspection.
Common issues that mimic fuse problems
Not every fault is a blown fuse. Sometimes a tripped breaker or a faulty outlet causes symptoms that look like a fuse issue. Loose connections, corroded contacts, or damp conditions can also produce intermittent failures. If you see charred components, a warm panel, or a persistent burning odor, stop and call a licensed electrician. Regular visual inspections and keeping a maintenance log can help you catch problems before they escalate.
Tools & Materials
- Non-contact voltage tester(Verify power is off before touching any components)
- Flathead screwdriver(For cartridge fuse caps and cover screws)
- Phillips screwdriver(If panel uses screws to access fuses)
- Insulated gloves(Extra protection when handling live components)
- Flashlight(Bright light helps inspect inside panel)
- Replacement fuses of correct amperage(Check label for amp rating and type)
- Owner's manual or panel labeling(Helpful for exact fuse type and ratings)

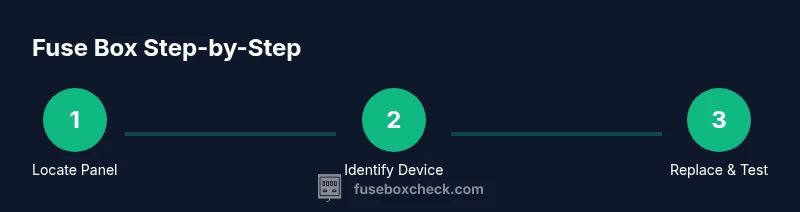

Steps
Estimated time: 30-45 minutes
- 1
Power down and locate the main disconnect
Begin by turning off the main power at the service disconnect to minimize risk while you inspect the panel.
Tip: Always verify there is no voltage with a tester before touching components - 2
Open the panel and review labeling
Carefully open the panel door and read the printed labels to identify which device controls which part of the house.
Tip: If labels are faded, take a photo for reference - 3
Identify fuse type
Look for cylindrical cartridge fuses or blade style; breakers will be clearly labeled ON or OFF.
Tip: Visual inspection alone is not enough to determine health - 4
Test for absence of voltage
Use a non-contact tester to confirm that circuits inside are de-energized before removal.
Tip: Keep one hand in pocket to reduce shock risk - 5
Remove blown fuse or switch off the breaker
For a fuse, gently unscrew or pull the cartridge; for a breaker, flip the switch to OFF.
Tip: Do not touch copper terminals with bare hands - 6
Replace with correct amperage
Install a new fuse or reset the breaker with the same rating as the label indicates.
Tip: Never substitute higher amperage to compensate - 7
Close the panel and restore power
Replace the panel cover and switch the main disconnect back ON; test critical circuits individually.
Tip: Test one circuit at a time to avoid overload - 8
Monitor for recurring trips or blows
If a fuse blows again soon, there is likely an underlying fault requiring professional evaluation.
Tip: Document when and what started the issue
Your Questions Answered
Do all homes use fuses or circuit breakers?
Most modern homes use circuit breakers; older properties may still rely on fuses. Always check the panel labeling to confirm the type and rating.
Most homes today use circuit breakers, older ones may have fuses.
Where are fuse boxes usually located?
Common spots include basements, garages, utility rooms, or closets near the main entry. If you cannot locate it, consult the home's wiring diagram or plan.
Typically in the basement or garage, check near the main entry.
What should I do if a fuse blows?
Turn off the main, replace with a fuse of the correct amperage, and test the circuit. If it blows again, there may be a fault requiring a professional.
Turn off power, replace with right fuse, call a pro if it repeats.
Can I replace a fuse myself?
Yes, if you have the right type and know safety steps. If you are unsure, hire a licensed electrician.
Only if you are confident about the rating and safety steps.
What is the difference between a fuse and a circuit breaker?
A fuse contains a metal element that melts on overload; a breaker trips to interrupt the circuit and can be reset.
Fuses melt, breakers trip and can be reset.
When should I call a professional?
If the panel is warm, if fuses blow repeatedly, or if you smell burning insulation; rewiring or major fixes require a pro.
Call a professional if you notice warmth or repeated trips.
Watch Video
Highlights
- Identify fuse box location and device type before starting
- Always power down and verify de-energized state
- Use exact amperage ratings when replacing fuses
- If trips recurs, call a professional promptly
