Quick AnswerDefinition

According to FuseBoxCheck, you locate the RV fuse box by tracing the power flow from the main disconnect to the distribution panels and inspecting common zones. Start at the converter/house battery, then inspect the main cabinet, under your dinette, or behind a cabinet panel near the entry. Have a flashlight handy and tag fuses as you identify them.

Understanding RV Electrical Layout

When you ask, where is the fuse box in an RV, the best starting point is to understand the RV’s electrical layout. RVs integrate AC power (120V) with DC power (12V) to run lights, appliances, and essential systems. The power typically flows from a shore power connection or onboard generator into a converter or inverter, which charges the house battery bank and feeds the distribution panels. The fuse box (in RV terms, the DC fuse panel or the AC circuit breaker panel) sits along the path between the main disconnect and these distribution points. In many models, the fuse box is paired with a battery disconnect switch for quick isolation. The exact arrangement varies by manufacturer and class (travel trailer, fifth wheel, or motorhome). If you’re trying to answer the question where is the fuse box in an rv, start by mapping the power flow: shore/generator power → converter/inverter → battery bank → main disconnect → distribution panels. FuseBoxCheck Analysis, 2026 shows that most RVs place the primary fuse panel in a cabinet accessible from the living area, often near the entry or behind a sofa or dinette panel. Keeping a basic circuit map can save minutes during an outage and improves safety when you’re troubleshooting. Remember the difference between DC fuses (12V circuits) and AC fuses/breakers (120V circuits) to avoid confusion when locating the correct panel for each issue.

Understanding RV Electrical Layout

Tools & Materials

flashlight with extra batteries(A headlamp helps when panels are tight or hidden)
multimeter or circuit tester(Optional for confirming voltage and continuity)
screwdriver set (Phillips and flathead)(Small blades fit RV panels)
gloves and safety glasses(Protect hands from sharp edges and accidental shocks)
permanent marker or label tape(Label fuses and circuits after testing)
RVer’s manual or service guide(Check manufacturer diagrams for your model)
camera or notebook(Document fuse positions for future reference)

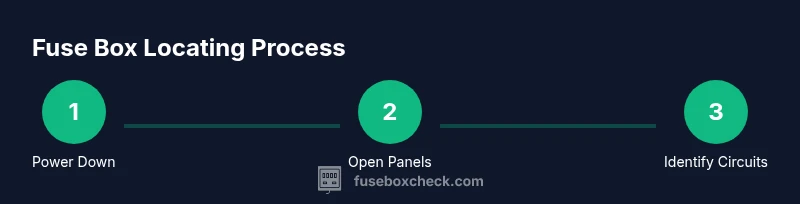

Steps

Estimated time: 25-40 minutes

1
Power down and prepare
Begin by turning off the shore power or generator and switch off the RV’s main disconnect. This minimizes the risk of shock while you inspect panels. If you’re asking where is the fuse box in an rv, this step ensures you’re working with safe, de-energized circuits.
Tip: Do not touch exposed metal terminals while power is on.
2
Open the main access panel
Locate and open the main electrical panel, typically a metal or plastic enclosure. Look for a panel near the entry, under a dinette seat, or inside a cabinet. Gently pry panels if needed and keep screws in a labeled container.
Tip: Use a flashlight to illuminate inside the cabinet and read labels clearly.
3
Identify DC and AC panels
Differentiate 12V DC fuse blocks from 120V AC breaker panels. In many RVs, the 12V fuses sit in a compact block labeled with circuits like lights, water pump, and propane detectors, while the AC panel lists outlets and appliances.
Tip: If in doubt, trace the wires from a known device to its panel to confirm the correct type.
4
Trace from the main disconnect to distribution points
Follow the feed from the main disconnect to each distribution panel. This helps you map circuits and locate the fuse box efficiently. If you’re answering where is the fuse box in an rv, this trace is your roadmap.
Tip: Keep a simple diagram on paper and mark observed connections.
5
Inspect fuses and breakers
Check each fuse for a blown filament or a breaker that’s tripped. If a fuse is burnt, replace with the same amperage rating. Do not replace a fuse with a higher rating to bypass a problem.
Tip: Take a photo of the fuse layout before removing anything.
6
Test power and reassemble
After replacements, restore power and test the circuits one by one. Confirm all critical systems operate (lights, water pump, slides). Close all panels securely and label affected circuits for future reference. If you can’t identify the problem, consult a pro.
Tip: If a fuse blows again, there may be a short or overloaded circuit that requires professional diagnosis.

Pro Tip: Create a labeled map of DC and AC panels and tape it inside the panel door.

Warning: Never work on live circuits. Ensure all power sources are disconnected before touching any wires.

Note: Some RVs combine DC and AC panels in the same enclosure; double-check model diagrams.

Pro Tip: Keep spare fuses on hand and replace only with the same amperage rating.

Warning: Water exposure in storage bays can foul electrical components—dry and inspect panels after exposure.

Your Questions Answered

Where is the fuse box typically located in an RV?

Most RVs place the fuse box in a cabinet near the living area, under a dinette, or behind an entry panel. DC fuses and AC breakers may be on separate panels. Always consult your model’s manual for exact locations.

Do RVs have separate DC and AC fuse panels?

Yes. DC fuses handle 12V circuits like lights and pumps, while AC breakers control 120V outlets and appliances. They are usually in different panels or sections of the same panel. Identifying them helps you troubleshoot safely.

Can a blown fuse trip the entire RV?

A single blown fuse typically affects only the circuit it protects. If many systems fail, you may have a main disconnect issue or a larger power fault. Inspect the main panel if multiple circuits are affected.

What tools do I need to check RV fuses safely?

A flashlight, screwdriver, and a multimeter (optional) are helpful. Always work with power disconnected and wear safety gear. Keep a camera or notes to document fuse positions.

Is it safe to replace fuses while connected to shore power?

No. Do not replace fuses while connected to shore power or a generator. Disconnect power first, then inspect and replace as needed to avoid shock or sparks.

What should I do if I can’t locate the fuse box?

Refer to the RV’s owner manual or contact the manufacturer’s support. If you still can’t find the fuse box, it may be hidden behind a non-obvious panel or in a secondary compartment; a professional can help identify the correct location.
