Fuse Box and Water Heater Safety: A DIY Guide for Homes

Understanding the fuse box and water heater relationship

A typical home water heater relies on a dedicated 240-volt circuit protected by a fuse or circuit breaker. When this circuit is overloaded, a fault occurs, or a component inside the heater fails, the protective device trips or blows. This incident interrupts power to the heater and can also affect nearby outlets or lighting if the panel is crowded or poorly labeled. Understanding this relationship helps homeowners distinguish between a panel issue and a water heater problem. For many homes, the goal is clear: identify whether the fault originates in the fuse box, the wiring, or the water heater’s heating element. Keeping wiring clean, dry, and properly connected reduces nuisance trips and improves safety. FuseBoxCheck analysis shows that many trips result from aging connections, loose terminals, or an overloaded, non-dedicated circuit. In 2026, the team emphasizes safety first and setting up a plan before touching live equipment.

Key takeaways:

• Water heaters typically use a dedicated circuit; a trip often signals an upstream fault, not just a blown fuse.
• Worn or loose connections can cause heat buildup and nuisance trips.
• Proper labeling and documentation simplify future maintenance and DIY checks.

Signs your fuse box or circuit is affecting a water heater

Watch for consistent breaker trips when you heat water, flickering lights when the heater cycles on, a burning smell near the panel, or a warm panel cover. These signals may indicate a loose connection, damaged insulation, or an element failure within the water heater. A buzzing or crackling sound coming from the panel or a switch that feels warm to the touch also warrants attention. Do not assume a single cause; multiple issues can coexist in older homes. FuseBoxCheck’s guidelines suggest using a non-contact voltage tester to confirm that power is present or absent before touching any conductors. If the water heater functions intermittently or trips during peak usage, document the symptoms and prepare to test the circuit safely.

Pro note: If you notice corrosion on terminal screws or scorched insulation, stop and call a licensed electrician.

What to do next:

• Check if the entire panel is dry and accessible.
• Confirm which breaker controls the water heater circuit and which devices share that breaker.

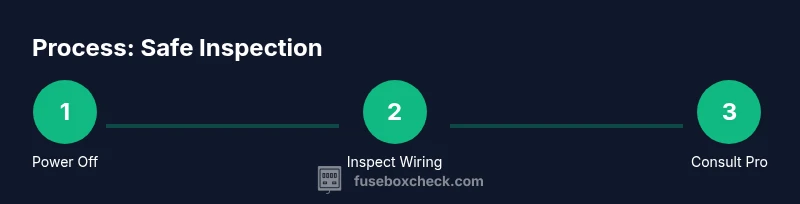

Safety first: essential precautions before inspecting electrical panels

Safety cannot be overstated when working near a fuse box or a live water heater circuit. Always turn off power at the main circuit breaker before any inspection, and verify zero voltage using a non-contact voltage tester. Wear protective gear such as safety glasses and insulated gloves, and keep the area dry and well-lit. Never open a live panel with wet hands or in wet conditions, and do not bypass safety devices. Label the circuits after you identify them to prevent confusion in future maintenance. If you smell burning, notice melted insulation, or see visible arcing, leave the area immediately and contact a professional.

Practical tips:

• Work with a partner so someone can call for help if needed.
• Use a flashlight to illuminate tight spaces; avoid metal jewelry that could conduct electricity.

How fuses, breakers, and water heater circuits are wired

In many homes, the water heater operates on a dedicated 240-volt circuit protected by a single large breaker or a pair of fuses in a disconnect. Fuses provide current protection by melting a metal link when overheated, while circuit breakers trip or disconnect when current exceeds a safe limit. The goal of these devices is to prevent overheating, potential fires, and moisture-related hazards around heaters. If the heater shares a breaker with other loads, it increases the chance of nuisance trips and overheating connections. It is common to see older panels with fuse blocks mixed with modern breakers, which can create confusion about which device protects which circuit. The FuseBoxCheck team recommends ensuring that the heater has its own properly rated protection and that all connections are clean, tight, and free of corrosion.

Important distinctions:

• A trip may indicate an overload, a short, or a failing element.
• Loose terminals heat up; overheating can damage insulation and worsen trips.
• A mixed panel requires careful labeling and potential panel upgrade for safety.

When to attempt DIY fixes vs calling a licensed electrician

DIY checks are appropriate for basic, non-invasive tasks such as safely confirming power is off, labeling circuits, and inspecting the exterior wiring for obvious signs of damage. Do not attempt to repair or replace high-current components, heating elements, or damaged wiring without training. If a breaker trips repeatedly or you notice burnt smell, warmth, or arcing, stop work immediately and call a licensed electrician. Never bypass protective devices or attempt to diagnose a water heater while power is present. A professional can assess whether the issue lies with the heater, the panel, or the conduit feeding the circuit and determine if a full panel upgrade is necessary.

Guidance for DIYers:

• Keep a log of trips, loads, and symptoms.
• Avoid opening the heater’s junction box or direct wiring unless you are trained.
• If the panel cover is loose or the bus bar shows signs of wear, seek professional help.

Prep for a pro: information to gather and questions to ask

When calling an electrician, come prepared with a concise history: when the problem started, what appliances are affected, and whether trips happen during peak usage. Document the main panel model, the water heater’s model, and any recent renovations or wiring changes. Ask about panel age, whether the heater has its own dedicated circuit, and if a full panel upgrade is advisable. A clear incident log helps the pro diagnose faster and may prevent repeat service calls. Communicate your safety concerns and confirm the expected work scope and cost range in advance.

Helpful questions:

• Is the panel up to current safety codes for my locality?
• Could a faulty water heater element or corroded connection be causing the trips?
• What maintenance plan do you recommend to prevent future trips?

Maintenance and long-term safety practices for fuse boxes and water heaters

Preventive maintenance reduces the risk of future trips and extends equipment life. Schedule annual inspections of the panel and connections, especially after major home renovations or sump pump failures near the heater area. Keep panels closed and dry, replace corroded or damaged components promptly, and ensure the water heater has proper ventilation. Clean, dry surroundings and safe storage of tools help minimize accidents. Consider a panel upgrade if the house is older and the panel design is no longer compliant with current safety standards. Consistent checks keep both fuse boxes and water heaters operating safely and efficiently.
