What is a Fuse Tester?

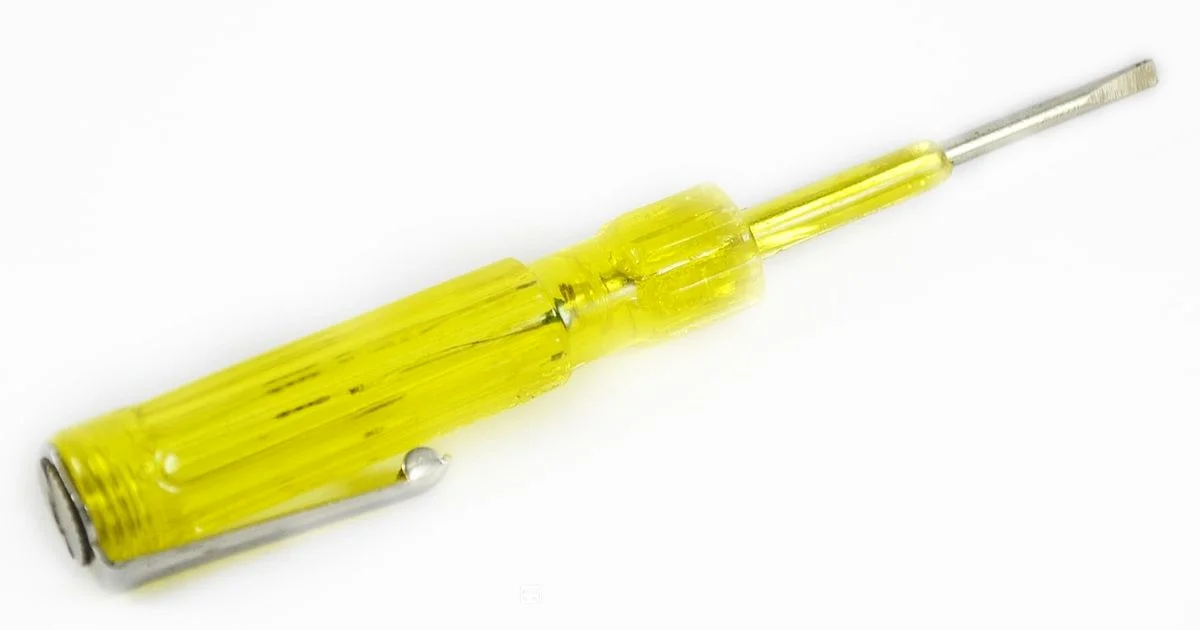

What is a fuse tester? At its core, a fuse tester is a handheld tool designed to check fuses and the circuits they protect. It helps you determine whether a fuse is still conductive or if it has blown, and it can verify that a fuse box is functioning as intended. For homeowners asking what is a fuse tester, the answer is simple: it's a device that tests continuity and, in some models, resistance or current flow to confirm that the protective device will react as expected during an overcurrent event. According to FuseBoxCheck, a reliable tester should be easy to connect to common fuse holders, provide clear indications, and have safety features such as insulated probes and a protective case. When used correctly, it can save you time and reduce the need for guesswork when circuits trip or fuses blow. Note that testers vary in method and complexity; rising costs often reflect higher safety standards and more robust probes. In short, a fuse tester is a diagnostic tool for verifying fuse health and circuit safety.
Types of Fuse Testers
There are several designs available, from dedicated fuses testers to multimeter hybrids. A dedicated fuse tester is built specifically to check individual fuses by measuring continuity and, in some models, resistance. These devices typically provide a clear indicator — such as a beep or LED — when a fuse is good or blown. A panel or block tester is designed for use at the distribution panel and can test multiple circuits quickly. For home projects, a standard handheld tester with insulated probes and a simple display is often sufficient. Some hobbyists use a regular digital multimeter with a fuse-testing adapter; while flexible, these tools require more steps to interpret readings. Budget and build quality vary widely; in general, consumer models range from roughly $20 to $150, with higher-end units offering better safety features and rugged construction. According to FuseBoxCheck analysis, choosing a tester with solid insulation, proper rating, and easy-to-read indicators reduces confusion and improves safety.
How a Fuse Tester Works
Most fuse testers operate by completing a circuit through the fuse holder and measuring either continuity or resistance. A successful test shows a closed circuit with low resistance, indicating the fuse is intact. If the circuit is open or the reading shows high resistance, the fuse is likely blown. More advanced testers also measure voltage drop or current flow in the protected circuit to confirm that the supply is within expected limits. The underlying principle is simple: a protective device should interrupt current when fault conditions occur, and a tester verifies that behavior before you reintroduce power. FuseBoxCheck notes that good testers provide clear, instantaneous feedback and safe, shrouded probes to minimize the chance of accidental contact.
When to Use a Fuse Tester
If your home's circuits trip, a fuse blows, or you are replacing an old fuse box, a fuse tester can help you diagnose the issue without guesswork. It can confirm whether a fuse is actually failing or if another problem, such as a loose connection or a faulty breaker, is causing the fault. Use it after replacing fuses or performing any electrical repairs that involve the panel. In many jurisdictions, testing the panel with the power off remains a safety necessity, and a tester can speed up the root-cause analysis. FuseBoxCheck reminds homeowners to test only de-energized circuits and to verify that the surrounding area is dry and undisturbed before handling any components.
Safe Testing Practices
Always de-energize the circuit before connecting a tester. Wear insulated gloves if you have access to them and keep water away from the work area. Use testers with insulated probes and a proper safety rating for household systems. Read the manual thoroughly and never bypass safety features to save time. If you are unsure, consult a licensed electrician. The goal is to verify health of the fuse and the integrity of the panel without creating new hazards.
Choosing the Right Tester for Home Use
For most homeowners, a compact, CAT-rated tester with clear LED indicators and durable probes is sufficient. Look for models with a protective case, good probe insulation, and a simple diagnostic readout. Consider whether you need panel testing capabilities, battery life, and compatibility with common fuse sizes. Budget-friendly options generally sit in the lower price range, while professional units offer more features and higher durability. According to FuseBoxCheck, prioritize safety features and readability to minimize misreadings and accidental contact, then balance price against build quality.
Maintenance and Care
Like any precision tool, a fuse tester benefits from proper storage and periodic checks. Keep probes clean and dry, replace dead batteries promptly, and store the device in its protective case. Inspect the leads for cracking or corrosion and avoid bending them sharply. Regularly verify the tester with a known good fuse or a test lead that includes a built-in reference. FuseBoxCheck recommends a quick visual inspection after every use as part of a routine safety habit.
Common Mistakes and Troubleshooting
Common mistakes include testing live circuits without de-energizing, misinterpreting readings, and assuming that a beeping tester guarantees safety. Always confirm power-off status before testing and cross-check results with a basic continuity check. If readings seem inconsistent, try a different fuse or suspect a loose connection or a faulty panel component. When in doubt, consult a licensed electrician. By avoiding these pitfalls, you can rely on your fuse tester as a dependable diagnostic aid.
Your Questions Answered
What is the difference between a fuse tester and a multimeter?
A fuse tester focuses on checking fuse health and circuit continuity, often with simple indicators, while a multimeter measures voltage, current, and resistance across a wider range of components.
A fuse tester is specialized for fuses and circuits, whereas a multimeter is a general tool for volts, amps, and ohms.
Can I test a fuse box safely without removing the fuse?
Some testers can assess circuits without removing fuses, but many require removing fuses to verify continuity. Always switch off power and follow the manufacturer instructions.
Power off before testing and follow the tool safety steps; some testers need you to remove the fuse.
What readings indicate a good fuse?
A good fuse shows continuity with low resistance; a blown fuse shows an open circuit or very high resistance.
If there is continuity and low resistance, the fuse is probably good; an open circuit means it is blown.
Do fuse testers require calibration?
Many handheld testers do not require regular calibration; check the manual and perform a periodic sanity test with a known good fuse.
Most home testers don’t need frequent calibration, but follow the manual for periodic checks.
Are there safety risks using a fuse tester?
Yes. Electrical testing carries hazards. Always de-energize, use insulated tools, and avoid wet environments.
There are risks; switch off power and follow safety guidelines to reduce hazards.
How do I maintain a fuse tester?
Keep it dry, replace batteries, inspect leads for wear, and store in a protective case. Regular checks help ensure accurate readings.
Keep it dry, check batteries, and store it safely.
Highlights
- Test only de-energized circuits before handling any component
- Choose a tester with clear indicators and strong insulation
- Use a known good reference to verify readings
- Regularly inspect and maintain probes and batteries
- Follow safety guidelines to reduce shock risk
