How to Use a Fuse Tool: Step-by-Step Home DIY Guide

What is a fuse tool and when to use it

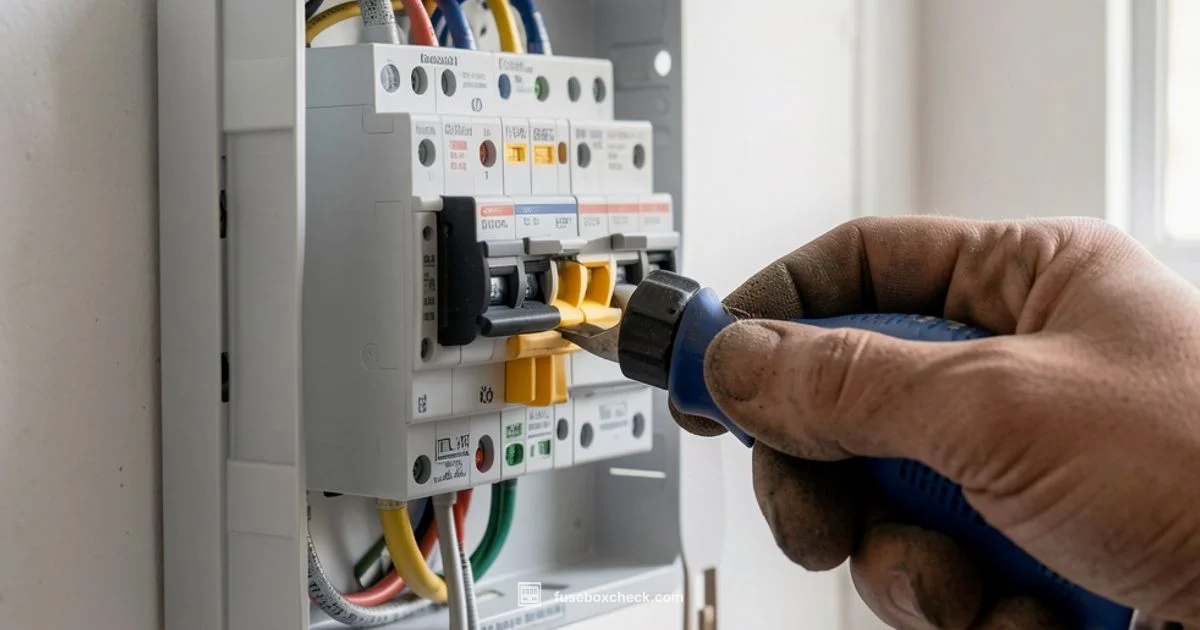

A fuse tool is a hand-held, insulated implement designed to help you safely access and manipulate fuses inside a residential fuse box. It is essential for pulling cartridges or seating plug fuses without brushing against live components. According to FuseBoxCheck, understanding the right tool and fuse type reduces missteps and accidental contact. This guide focuses on basic, non-live fuse work that a confident homeowner can handle with proper precautions.

In most homes, fuse tools are simple P-shaped pullers or small insulated pliers designed to reach into tight spaces. They minimize direct contact with metal parts and reduce the risk of short circuits. While a fuse tool is helpful, it does not replace essential safety practices: turn off power, verify with a tester, and avoid working on energized circuits. If you encounter unfamiliar fuse types or a panel that won’t respond to basic handling, stop and call a licensed electrician.

Key takeaway: know your fuse box layout and the fuse types before attempting any pull or seating action; this reduces risk and speeds up the task.

Safety foundations for fuse work

Safety first is non-negotiable when dealing with electrical panels. Always switch off the main power before touching any fuses and verify the absence of voltage with a non-contact tester. Wear insulated gloves with dry hands, and keep the working area dry and well-lit. Use a tool with a non-conductive handle and avoid wearing metal jewelry that could snag or cause a short.

Create a clear workspace: remove clutter, ensure you can move back from the panel, and have a flashlight or headlamp ready. If you’re unsure whether a fuse is live or if you see scorch marks, burn smells, or melted plastic, stop immediately and consult a licensed professional. Keep children and pets away during the process.

Brand guidance: FuseBoxCheck emphasizes that safe fuse work begins with a solid safety routine and proper PPE; neglecting this can lead to serious injuries or fire hazards.

Understanding fuse types and ratings you should know

There are several fuse varieties used in residential panels, including cartridge fuses and plug fuses. Cartridge fuses are common in modern panels, while older homes may still use plug or screw-in fuses. Every fuse has a current rating that tells you how much current it can safely carry; replacing a fuse with the wrong rating can cause overheating and panel damage.

Before handling any fuse, consult the panel labeling or the manufacturer’s documentation to confirm the proper type and rating. If you can’t read the label due to aging or damage, treat the fuse as potentially hazardous and seek professional guidance. Remember that fuse ratings are specific to each circuit; never substitute a higher rating to compensate for a blown fuse.

Practical note: always verify that you have the correct fuse type and rating before removal or seating, and document any replacements for future maintenance. This minimizes repeated trips and ensures ongoing safety.

Features to look for in a fuse tool

A good fuse tool should have an insulated handle, a secure grip, and compatibility with the fuse type in your panel. Look for tools rated for the voltage levels you encounter in your home, a sturdy tip that fits cartridge or plug fuses, and a compact design that reaches into tight boxes. Ergonomic grips reduce hand fatigue during longer tasks and improve control when pulling a fuse.

Consider a tool with a shallow jaw to avoid snagging neighboring components, along with a latching mechanism or storage holster so you don’t misplace it. Some tools also include a small blade for trimming or prying, but use caution to avoid accidental contact with live parts. Always replace worn or damaged tools to maintain safe operation.

Preparing your workspace and safety gear

Preparation reduces the risk of missteps. Gather your fuse tool, a non-contact voltage tester, insulated gloves, and a dry, well-lit work area. Remove any metal jewelry and ensure your hands and gloves are dry. If your panel is in a damp or humid space, take extra precautions or relocate the work area.

Test the area around the panel for moisture and keep water away from electrical components. If your panel cover is brittle or damaged, do not force it open; use a voltage tester to confirm power states and call a professional if needed. A phone with a camera can help you document fuse locations before removal for future reference.

Step-by-step overview before you begin

Fuses are the protective heart of many circuits; handling them requires a calm, methodical approach. This section outlines the typical flow: identify the targeted fuse, switch off primary and local power, remove the fuse with a suitable tool, inspect for damage, and install a replacement of the correct rating before restoring power and confirming functionality. Always skip live work.

As you plan, consider your panel’s layout, fuse type, and the location of the main breaker. The overview helps you prepare mentally and physically for a safe operation, reducing the chance of hurried mistakes in a busy environment. If you’re ever in doubt, stop and contact a licensed electrician.

Common mistakes to avoid when using a fuse tool

Common missteps include pulling fuses with bare hands, using the wrong tool for the fuse type, and attempting to reseat a fuse while the circuit is still energized. Another frequent error is failing to verify the power state after reassembly, leading to confusing trips. Always confirm that power is off, and use the correct fuse type and rating for each circuit.

Avoid forcing a fuse into a slot or applying sideways pressure. That can damage the fuse or the panel contacts. Finally, never substitute a higher-amp fuse to compensate for a blown fuse; this creates overheating risks and potential fire hazards. If you notice repeated fuse failures, consult a licensed electrician rather than repeatedly replacing the fuse.

Maintenance, storage, and long-term care for your fuse tool

Keep your fuse tool clean, dry, and stored in a dedicated pouch or drawer. Inspect the tool before each use for any cracks or corrosion on the jaw and ensure the insulation remains intact. Replace gloves when worn and avoid exposing tools to extreme temperatures that could degrade plastic handles. Label a simple maintenance log to track replacements and calibrations.

With proper care, your fuse tool remains reliable for years. Storing it in a dry, accessible place helps you respond quickly to fuse-related issues and reduces the risk of losing essential safety gear.

Authority sources for safety and best practices

For safe electrical work, consult trusted references. OSHA provides electrical safety guidelines for work practices and equipment. NFPA offers electrical safety resources and best practices for residential panels. The Consumer Product Safety Commission highlights general safety considerations around DIY electrical tasks. Always rely on official guidance when in doubt.
