Electric Fuse Box: Safe Troubleshooting and Maintenance
Practical, expert guidance for homeowners troubleshooting an electric fuse box, including safety steps, common issues, and maintenance tips to keep your electrical system in top shape.
You will confidently inspect and safely troubleshoot an electric fuse box, identify fuse types, and perform safe resets or replacements. Always start by turning off the main power, wear insulated gloves, and have a fire-safe area and a non-conductive tool kit ready.
What is an electric fuse box?
An electric fuse box is the central distribution point for your home’s electrical circuits. In older homes, it may use replaceable fuses that melt when a circuit draws too much power, protecting wires from overheating. Modern homes more commonly use a circuit breaker panel, but the fuse box concept still governs how electricity is divided and protected. The main role of the fuse box is to interrupt current flow when a fault occurs, preventing fires and electric shock. Understanding the basic components—a fuse carrier, a fuse element, the main disconnect, and individual circuit fuses or breakers—helps homeowners diagnose simple issues without unnecessary risk. Always treat any exposed wiring or the interior of the panel as live until you’ve verified it is de-energized.
Fuse box types and layouts
Fuse boxes come in different styles depending on age and region. Cartridge fuses are common in older homes, where each circuit is protected by a replaceable fuse that sits inside a cylindrical carrier. Plug fuses, sometimes called Edison fuses, are another older variation. Modern panels may replace fuses with circuit breakers that trip when a fault occurs. Layouts vary: some boxes are compact with a single row, others have a double column layout with a separate main disconnect. The key takeaway for homeowners is to identify the type you have, note the rated amperage on each fuse or breaker, and avoid using a higher-rated device to bypass protection. This keeps wiring from overheating and reduces fire risk.
Safety basics before you start
Electrical work carries real hazards. Before you touch anything, power must be off to the area you are working on. Use a non-contact voltage tester to confirm the panel is de-energized and wear insulated gloves and safety goggles. Never work on a live panel, never touch exposed conductors, and keep water away from the work area. If you smell burning, notice a crackling sound, or see melted insulation, stop immediately and turn off power at the main disconnect if safe to do so. Keep a fire extinguisher rated for electrical fires nearby, and never bypass protective devices by using makeshift solutions. If you have children or pets in the home, secure the area.
How to inspect for common issues
Begin with a visual scan for signs of trouble: burnt or discolored fuses, melted insulation, loose wires, or a panel that feels warm to the touch. Check each fuse or breaker position; a blown fuse will appear darkened or broken, while a tripped breaker sits in a mid-position. If you find a blown fuse, replace it with one of the same amperage rating and type. Loose connections can cause arcing and overheating, so gently tug on wires near the terminals to check for firmness (do not force). Document circuits that frequently trip and note any appliances that coincide with trips. If you identify corroded terminals or signs of water intrusion, stop and call a professional—safety first.
Replacing a fuse safely
When replacing a cartridge fuse, remove power, remove the faulty fuse, and insert a new fuse of the exact amperage rating indicated on the panel. Do not substitute a higher-amp fuse to compensate for a nuisance trip, as this defeats overcurrent protection. After replacement, restore power gradually and monitor the circuit for repeated trips. If a fuse fails again shortly after replacement, the issue likely lies in a short circuit or a faulty appliance downstream—a condition warranting professional assessment. Keep spare fuses in a labeled, fire-resistant container and always handle with insulated tools.
Maintenance tips to extend fuse box life
Periodically inspect the panel for dust buildup, moisture, and signs of corrosion. Keep the area around the fuse box dry and well-ventilated. Label circuits clearly to simplify future troubleshooting. Schedule a professional inspection every few years, especially in homes with older wiring or recent renovation work. If you’re unsure about any procedure, choose caution and seek professional help. Regular maintenance reduces the risk of unexpected outages and extends the life of your electrical system.
When to call a licensed electrician
Certain scenarios require a licensed electrician: persistent tripping, warm or buzzing panels, corrosion, burn smells, or evidence of water intrusion. If your panel is more than 25-30 years old, or you notice signs of wear, do not attempt extensive repairs yourself. An electrician can verify wire sizing, panel capacity, and compliance with current electrical codes. In some jurisdictions, updating the fuse box to a modern breaker panel may be recommended for safety and reliability. For emergencies, contact your local utility or emergency services if you suspect a dangerous fault.
AUTHORITY SOURCES
- Occupational Safety and Health Administration (OSHA): https://www.osha.gov
- U.S. Department of Energy - Safety and Electrical Standards: https://www.energy.gov
- National Fire Protection Association (NFPA) - Electrical Safety Standards: https://www.nfpa.org
Tools & Materials
- Insulated screwdriver set(Sizes #1–#3 for fuse blocks)
- Non-contact voltage tester(Verify no voltage without contact)
- Multimeter(Voltage measurement and continuity checks)
- Voltage tester / tester light(Optional for quick checks)
- Safety goggles(Protect eyes from sparks or debris)
- Insulated gloves(Class 0 or 00 for additional protection)
- Replacement fuses (same rating)(Match amperage and type)
- Flashlight(Bright illumination inside panel)
- Labeling supplies(Markers or tape to label circuits)
- Fire extinguisher (Class C/Electrical)(Nearby in case of emergency)

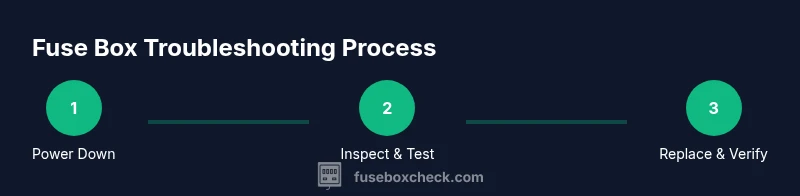

Steps
Estimated time: 30-60 minutes
- 1
Power down and prepare
Shut off the main power if safe to do so and verify with a non-contact tester. Clear the area and wear safety gear before touching components.
Tip: Always start at the main disconnect to minimize risk. - 2
Open the fuse box cover
Carefully remove the cover with an insulated screwdriver, keeping hands dry and away from metal parts.
Tip: Do not pry; use proper tool for leverage. - 3
Identify fuses vs breakers
Determine whether the panel uses cartridge fuses or breakers and locate the ratings printed on each device.
Tip: Note which circuits are in use and their corresponding labels. - 4
Test for voltage and inspect
With the panel de-energized, test conductors and inspect for signs of damage or burning.
Tip: If you see melted insulation, stop and call a pro. - 5
Replace or reset
If a fuse is blown, replace with the exact type and rating; if a breaker tripped, reset it fully to the on position.
Tip: Never bypass protective devices; replacement must match rating. - 6
Restore power and verify
Turn the main back on carefully and test affected circuits individually to confirm operation.
Tip: Watch for any signs of overheating as power returns. - 7
Document and assess
Label the circuits and note any recurring trips or issues for follow-up with a professional.
Tip: Keeping a log helps future maintenance and safety.
Your Questions Answered
What is the difference between a fuse box and a circuit breaker panel?
A fuse box uses replaceable fuses to interrupt current, while a breaker panel uses switch-like devices that trip automatically. Both serve to protect circuits, but breakers are more common in modern homes for easier reset and replacement.
A fuse box uses replaceable fuses to cut power when something goes wrong, while a breaker panel uses switches that trip automatically. Both aim to protect circuits, with breakers being more common today for easier reset.
Can I replace a fuse with a higher-rated fuse?
No. Using a fuse with a higher amperage defeats overcurrent protection and can cause wiring overheating or fires. Always replace with the exact rating printed on the panel or fuse.
No. Don’t use a higher-amp fuse; it defeats protection and could start a fire. Use the exact rating listed on the panel.
Is it safe to reset a tripped breaker or blown fuse?
Resetting a breaker or replacing a fuse can be safe if you’ve confirmed the issue and used proper protective equipment. If the problem recurs, there's likely a fault downstream or a larger electrical issue that needs a professional.
Resetting is safe only if you’ve checked for faults and used proper gear. If trips keep happening, call an electrician.
When should I call a licensed electrician?
Call a licensed electrician for persistent trips, signs of overheating, burning smells, corrosion, or if the panel is older and due for upgrade or rewiring. Electrical work can be hazardous and requires training.
Call a licensed electrician if trips persist, you smell burning, or the panel looks old or corroded.
What should I do if the fuse box feels warm?
A warm panel indicates excessive load or poor connections. Power down, avoid touching, and contact a professional promptly. Do not attempt competitive fixes yourself.
If the panel is warm, power down and call a professional—don’t touch or poke around.
Are there safety steps I can take after maintenance?
Label circuits, keep the panel area dry, and schedule a periodic check. Maintain clear access to the panel at all times for quick intervention if needed.
After maintenance, label circuits and keep the area dry and accessible for quick help if something goes wrong.
Watch Video
Highlights
- Turn off power before touching the fuse box.
- Use the correct fuse or breaker rating for each circuit.
- Inspect for signs of damage or overheating before replacing components.
- When in doubt, call a licensed electrician for complex issues.
