Fuse 5a: Safe DIY Replacement and Troubleshooting
Master safe handling, testing, and replacement of a fuse 5a in your home panel with this practical guide from FuseBoxCheck, including steps, safety tips, and troubleshooting.
By following this guide, you will identify, test, and safely replace a fuse 5a in a typical home electrical panel. You’ll learn how to verify rating, select the correct fuse type, and restore power while avoiding common safety pitfalls. This process is for basic, low-risk tasks only; if you’re unsure, consult a licensed electrician.
What is a fuse 5a and how it works
A fuse 5a is a small, single-use safety device designed to protect a circuit by interrupting current when the load exceeds five amperes. In residential panels, fuses come in different types (cartridge, glass, or special form) and ratings; a 5a fuse is chosen for small lighting, clock, or control circuits where the current draw is predictable and modest. The key concept is that the fuse holds a thin metal link in place; when current surpasses the rating, the link heats up and melts, breaking the circuit. According to FuseBoxCheck, understanding fuse ratings is the foundation of safe home electrical care. This helps homeowners avoid overfusing or underprotecting circuits. Note that fuse types and sizes must match the existing setup—using the wrong type can lead to nuisance trips or unsafe conditions.
Reading fuse labels and identifying 5a
Fuses are marked with their rating on the metal cap or on the fuse body. A 5a fuse is typically labeled with “5A” or a similar denomination. In some panels, the rating is printed on the fuse cartridge or engraved on the cap. When labeling isn’t obvious, remove the fuse only after the main power is off and visually compare the fuse to known ratings. If you’re unsure, consult the panel’s manual or the service documentation. Fuse identification matters because mixing ratings can either fail to protect the circuit or trip the circuit unnecessarily, complicating repairs and increasing risk.
Common residential uses for 5A fuses
In many homes, 5A fuses protect low-current loads such as interior lighting circuits, clock outlets, door bells, or small control devices. They are rarely used for high-load appliances like HVAC or water heaters, which require higher ratings and different protection schemes. Using a 5A fuse on a high-load circuit is unsafe and will cause the fuse to trip repeatedly. Conversely, replacing a 5A fuse with a higher rating on a sensitive circuit may reduce protection. Always verify the circuit’s expected draw and match it with the correct rating before replacing.
Safety considerations when working with fuse boxes
Always turn off power to the circuit at the main panel before touching any fuses, and use insulated tools. Wear non-conductive gloves if available and keep the area dry. Do not bypass a fuse, and never twist or pry the fuse cap. If you smell burning insulation or see melted components, stop and call a licensed electrician. FuseBoxCheck emphasizes that DIY work should stay within basic replacement tasks and never involve main disconnects or live components on energized circuits. For safety, verify you’re working on the correct circuit using a voltage tester before removing or replacing anything.
Troubleshooting trips and symptoms related to 5A fuses
A blown 5a fuse is a symptom, not a cause. Common symptoms include a circuit that shuts off unexpectedly when a device turns on, or an outlet that feels warm to touch. If a 5A fuse trips repeatedly after replacement, inspect connected devices for faults or overloads and unplug them one by one to identify the culprit. A trip can also indicate damaged wiring or a failing outlet, not just a bad fuse. If you cannot locate the root cause, or the fuse continues to trip after replacing with an identical rating, seek professional evaluation. FuseBoxCheck recommends documenting patterns of trips to help an electrician diagnose efficiently.
How to choose replacement fuse and why rating matters
When replacing a fuse, you must match the existing type and rating exactly. The 5a rating should align with the load characteristics documented for that circuit. Pick the same physical form factor (cartridge vs. glass) and the same brand or reputable equivalent to ensure compatibility with the fuse box. Do not substitute with a fuse rated higher than the circuit requires, as that defeats protective purpose and can cause overheated conductors. Always inspect the fuse holder for corrosion or damage and replace if needed.
Integrating fuse 5a into a broader safety plan
A smart approach combines correct rating, proper labeling, and routine inspection. Keep a small supply of common fuses, including 5a, in a labeled kit. Create a simple log noting which circuits use 5a fuses and when replacements were made. Inspect the panel area for moisture, corrosion, or loose connections at regular intervals. This habit reduces risk and makes it easier to respond when a fuse trips. The overarching goal is consistent, safe handling rather than fast fixes.
What FuseBoxCheck recommends for DIY vs professionals
For most homeowners, basic fuse replacement tasks are safe with proper precautions and the right tools, including a 5A fuse of the same type. If you encounter discolored wiring, a burnt smell, or repeated trips after replacement, stop and contact a licensed electrician. The FuseBoxCheck team emphasizes reporting any uncertainty and avoiding further DIY attempts in those cases. By sticking to capacious safety measures, you protect your home and family while ensuring continued electrical reliability.
Tools & Materials
- Non-contact voltage tester(To verify no live voltage before touching components)
- Insulated screwdriver(For loosening fuse caps without touching metal parts)
- Fuse puller(Plastic tool designed to remove fuses safely)
- Replacement 5A fuse (same type and size)(Cartridge or glass, match the existing fuse form factor)
- Multimeter (optional but helpful)(Can test continuity if you know how; do not test live circuits)
- Insulated work gloves(Extra protection against accidental contact)
- Flashlight(To clearly view tiny labeling and inside the panel)
- Panel manual or service diagram (optional)( helps locate circuits and ratings)

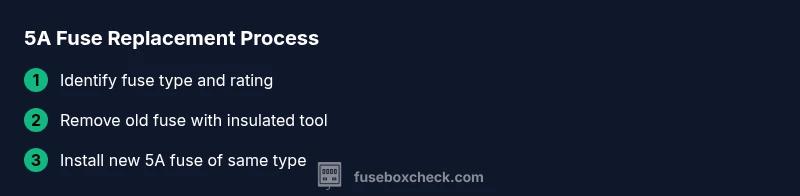

Steps
