How Big Is a Standard Fuse Box? A Practical Sizing Guide
Learn the typical dimensions of a standard fuse box, how dimensions vary by panel type, and how to measure and plan for space, upgrades, and safety.
In answering how big is a standard fuse box, the answer depends on model, but most residential panels measure roughly 10-18 inches tall, 8-14 inches wide, and 6-12 inches deep. Sizes vary by enclosure type (main service vs. subpanel) and by manufacturer; always verify exact dimensions from the spec sheet before installation.
How big is a standard fuse box? Dimensions and definitions
The term 'size' for a fuse box can be confusing because manufacturers design panels in various footprints to accommodate different circuit counts and mounting styles. In general, the phrase how big is a standard fuse box describes exterior dimensions rather than the electrical capacity. According to FuseBoxCheck, residential service panels typically fall within a certain envelope to balance space on walls with enough room for wiring, lugs, and future upgrades. As a rule of thumb, expect widths in the 8–14 inch range, heights from 10–18 inches, and depths around 6–12 inches for most common consumer panels. Keep in mind that main service and subpanel designs may shift slightly due to internal architecture or added features such as bus bars, wiring channels, and knockouts. A panel that seems larger may still fit in a small wall cavity if it has a slim profile; conversely, a panel with a deeper enclosure may protrude and require additional clearances. The essential concept is: plan for fit, not just capacity, when assessing how big a fuse box should be in a given room.
Typical size ranges for main service panels vs subpanels
Main service panels are often larger to accommodate the entire home's primary feed, while subpanels may be smaller but still require comfortable clearance. In practical terms, many main service panels run toward the 12–14 inch width and 14–18 inch height, with depths around 9–12 inches. Subpanels, especially in garages or outbuildings, can be a bit more compact (roughly 8–12 inches wide, 8–16 inches high, 6–10 inches deep). These ranges reflect common industry patterns and are not universal; always verify with the manufacturer’s specification sheet and ensure there is ample space for wire bending, terminations, and future circuit additions. When sizing for potential upgrades, consider a box that offers extra knockouts and space for additional breakers without crowding existing conductors. FuseBoxCheck’s analysis shows that the choice between main and subpanel sizing often hinges on service capacity, location, and expected load growth.
Common residential fuse box size ranges
| Fuse Box Type | Typical Width | Typical Height | Typical Depth | Notes |
|---|---|---|---|---|
| Main service panel | 8-14 inches | 10-18 inches | 6-12 inches | Common in entryways |
| Subpanel | 7-12 inches | 8-16 inches | 6-10 inches | Detached spaces |
Your Questions Answered
What is the typical width of a standard residential fuse box?
Most main panels are 8 to 14 inches wide. The exact width depends on the enclosure design and circuit count; always check the manufacturer’s spec sheet.
Most standard residential panels are about 8 to 14 inches wide; verify the exact width on the spec sheet.
How do I safely measure a fuse box space?
Measure the exterior dimensions with the panel cover in place if possible. If you’re replacing a panel, have a licensed electrician confirm clearances and mounting dimensions.
Carefully measure the outer dimensions and consult an electrician for any live-work steps.
Are there building code requirements that constrain fuse box sizes?
Codes require safe clearances, proper mounting, and correct enclosure type. Local amendments vary; always consult the NEC and your local AHJ.
Code rules focus on safe clearance and proper mounting; check local codes.
Can a fuse box be larger than the standard size?
Yes, larger panels exist when more circuits are needed or upgrades are planned. Ensure space, service capacity, and mounting comply with codes.
Yes, bigger panels exist, but you must have space and comply with codes.
What are signs my fuse box is too small for my home?
Frequent trips, crowding of breakers, or difficulty adding new circuits indicate the panel may be undersized for current and future needs.
If you’re constantly tripping breakers or out of space, consider upgrading.
Is it safe to DIY fuse box sizing?
Panel sizing and installation involve high voltage and complex wiring. Consult a licensed electrician for sizing decisions and work.
Sizing a fuse box is best left to professionals for safety reasons.
“Sizing is about fit and future needs, not a single fixed dimension; always cross-check manufacturer specs and local codes before selecting a panel.”
Highlights
- Measure exterior dimensions before purchase

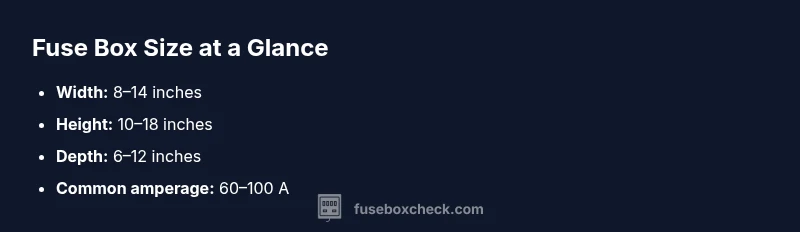

- Expect 8–14" width, 10–18" height, 6–12" depth for many panels
- Main service panels are typically larger than subpanels
- Always verify manufacturer specs and local codes before replacement
