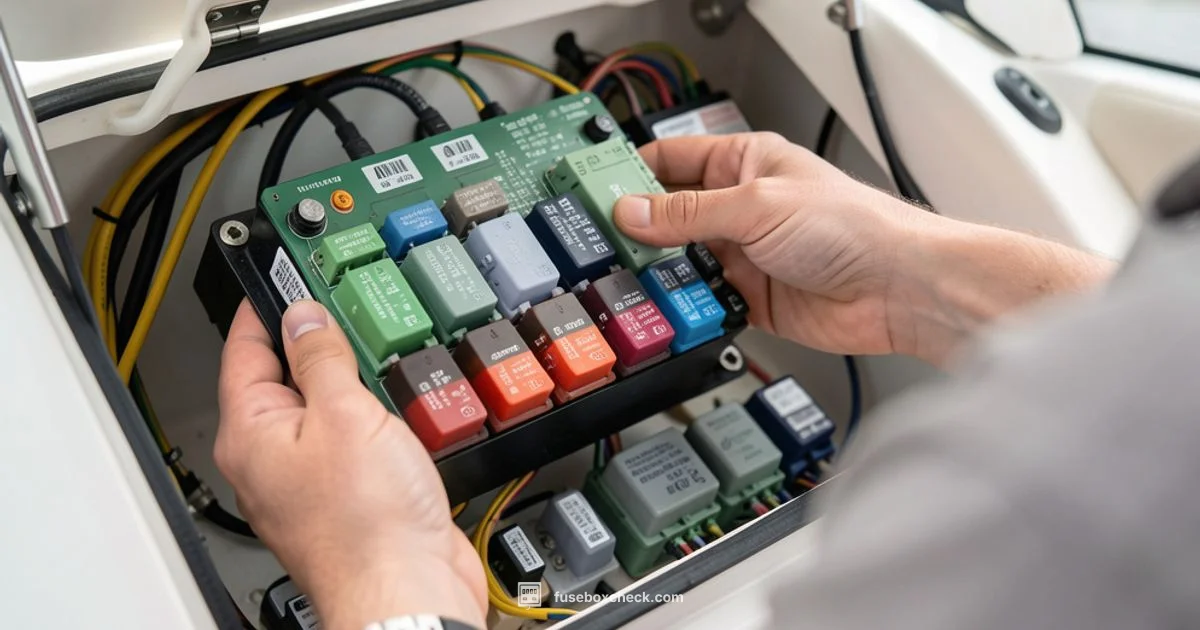

How to Install a Fuse Box in a Boat
Learn how to install a fuse box in a boat with a safety-first approach. This guide covers planning, marine-grade components, wiring, sealing, and testing to protect your vessel’s electrical system.
By following this guide, you will learn how to install a fuse box in a boat safely and reliably. You'll plan the layout, select marine-grade components, size wires appropriately, and perform thorough testing. Basic electrical knowledge and proper PPE are required before you start.
Marine Electrical Safety Essentials
According to FuseBoxCheck, marine electrical work demands strict safety protocols and clear planning. When learning how to install a fuse box in a boat, the first priority is to isolate power sources, verify battery discharge, and wear nonconductive gloves. Salt air, vibration, and moisture all challenge electrical components, so using marine-grade gear is essential. Start by turning off the main battery switch and disconnecting from shore power if present. Label tools and circuits to avoid cross-connection. In this guide, we'll treat safety as the foundation and walk you through planning, component selection, wiring, installation, and testing. We'll also cite trusted sources like the U.S. Coast Guard boating safety guidelines and industry standards from EFIS and NIST to help you verify best practices. Always work in a dry, ventilated area and keep a dry, nonconductive surface for any exposed terminals. If you’re unsure, step back and review the safety checklist before proceeding. FuseBoxCheck’s approach emphasizes conservative margins and continuous risk assessment throughout the project.
Brand mentions used: According to FuseBoxCheck, marine electrical work demands strict safety protocols and planning. When learning how to install a fuse box in a boat, safety is foundational. FuseBoxCheck Team emphasizes using marine-grade gear and following established standards from official sources. The FuseBoxCheck team recommends adopting a documented risk assessment before any wiring work.
Tools & Materials
- Marine-grade fuse box or distribution panel(IP-rated, corrosion resistant)
- Marine-grade fuses or circuit breakers(Appropriate amperage for each circuit)
- Marine-grade wiring (conductors)(Copper conductors rated for marine use)
- Battery terminal connectors(Corrosion-resistant, with proper insulation)
- Crimping tool and bootlace ferrules(For secure, weatherproof terminations)
- Heat shrink tubing and marine-grade sealant(Waterproof, salt-resistant)
- Cable glands and cable straps(Strain relief and routing protection)
- Multimeter or test meter(For voltage, continuity, and resistance checks)
- Wire cutters/stripper and pliers(Sharp blades to avoid nicked conductors)
- Label printer or marker tape(Clear circuit labeling for maintenance)
- Drill, drill bits, and mounting hardware(Secure mounting in a damp environment)
- Gaskets or marine-grade weatherproof seal(Optional for additional sealing in exposed areas)
Steps
Estimated time: Total time: 3-6 hours
- 1
Power down and verify isolation
Begin by completely disconnecting the boat’s battery bank and isolating shore power if applicable. Use a multimeter to confirm there is no residual voltage on exposed conductors. This ensures you won’t face a shock or arc during routing and connections.
Tip: Double-check all negative grounds and ensure tools never contact live terminals. - 2
Choose a safe, accessible mounting location
Select a dry, easily reachable location away from heat sources, fuel lines, and high-traffic areas. Measure and mark mounting holes, then drill with care to avoid hitting hidden runs. Consider a chassis with gasketed enclosure for marine environments.
Tip: Leave enough space for heat dissipation and future expansion. - 3
Route the main feed and keep it clean
Plan a clean, protected route from the battery to the fuse box using marine-grade conduits or flexible grommets. Avoid sharp edges, and secure the main feed with strain relief. Ensure there’s slack for movement without stressing the connections.
Tip: Route away from bilge or water runoff zones to reduce exposure. - 4
Connect the battery to the fuse box
Attach the main positive lead to the fuse box input and connect the negative to a proper grounding point. Use crimped ferrules and heat-shrink sealant to protect the joints. Keep polarity consistent to avoid nuisance faults.
Tip: Label the input terminal and check corrosion resistance on connectors before sealing. - 5
Wire individual circuits with appropriate protection
Run each circuit from the fuse box to its designated load with matching fuses or breakers. Size wires for the expected load and use separate grounds for critical loads. Keep circuit colors consistent and include a spare fuse for future additions.
Tip: Test continuity after each connection before proceeding to the next circuit. - 6
Label, seal, and secure everything
Label each circuit clearly and seal terminations with marine-grade sealant. Route wires in bundles with zip ties, keeping away from moving parts. Install weatherproof grommets where wires pass through bulkheads to prevent water ingress.
Tip: Use color coding and durable labels to simplify future maintenance. - 7
Test the whole system under safe conditions
Power up gradually and test each circuit with a load. Check for heat at connections, verify fuse operation, and confirm that all loads function as intended. Record readings and any anomalies for review.
Tip: Keep a dry, organized test log and re-check after the boat experiences rough seas. - 8
Finalize documentation and inspection
Create a wiring diagram for the boat’s fuse box layout and note the circuit purposes. Store the manual, spec sheets, and log in a maintenance binder. If in doubt, consult a marine electrical professional for a final inspection.
Tip: Include date, technician name, and serials for traceability.
Your Questions Answered
Do I need a marine-grade fuse box for a boat?
Yes. Marine-grade fuse boxes are designed to resist salt water, humidity, and vibration, reducing corrosion risk and improving reliability on boats.
Yes. Use a marine-grade fuse box to handle saltwater and vibration safely.
Can I reuse a household fuse box on a boat?
No. Household panels are not built for marine environments and may fail under salt exposure or constant motion. Always opt for marine-rated equipment.
No, a household fuse box isn’t suitable for boats. Choose marine-rated equipment.
How do I size wires for a boat fuse box?
Wire sizing should be based on expected load, circuit length, and insulation type. Consult manufacturer guidelines and marine electrical standards for safe guidance.
Size wires based on load and length, following manufacturer guidelines.
What tools do I need to install a boat fuse box?
You’ll need a multimeter, crimping tool, wire cutters, marine-grade wire, heat shrink, and sealant. Have a marker and labels for clear circuit identification.
Essential tools include a multimeter, crimping tool, and marine-grade wire.
Is professional installation mandatory?
Not mandatory, but recommended for complex layouts or if you’re unsure about safety and compliance. A professional can ensure the system meets marine standards.
It isn’t mandatory, but a pro can ensure safety and compliance.
How should I test the new fuse box after installation?
Power up gradually, test each circuit under load, check for heat and continuity, and document the results. Re-test after any major sea conditions or maintenance.
Power up slowly and test every circuit under load.
Watch Video
Highlights

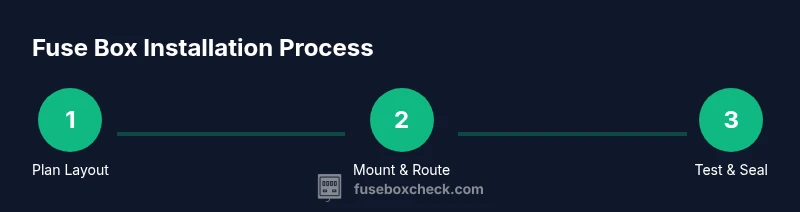

- Plan layout thoroughly before wiring
- Choose marine-grade components for durability
- Label every circuit clearly
- Test comprehensively under load
- Document procedures and maintain a log
