Metal Fuse Box Safety: Inspect, Upgrade, Maintain
This practical guide covers inspecting a metal fuse box, spotting wear, testing safely with a meter, and upgrading to modern breakers to improve home electrical safety. Learn proactive steps from FuseBoxCheck.
Step-by-step, you will learn to inspect, test, and safely service a metal fuse box. This guide covers turning off power safely, identifying signs of wear or corrosion, testing circuits with a multimeter, and choosing appropriate upgrades or replacements. By following the steps, you’ll reduce risks, improve reliability, and bring your home electrical system up to current safety standards.
What is a metal fuse box and how it differs from modern panels
A metal fuse box is the weathered, cabinet-like electrical panel that houses fuses to protect circuits. Unlike modern service panels with circuit breakers, older metal enclosures rely on fuses you replace when overloaded. The metal shell provides durable protection but requires careful inspection for corrosion, loose connections, and overheating. In many homes, these boxes sit in basements, garages, or utility rooms and are part of the original electrical system. When you handle one, prioritize safety and respect local codes; this article from FuseBoxCheck explains practical steps to inspect and, if needed, upgrade.
Key takeaway: Know whether you’re dealing with a traditional fuse box or a modern alternative, since the approach to maintenance and upgrade differs significantly.
Safety implications of metal enclosures
Metal fuse boxes are robust but can corrode, accumulate dust, or suffer from loose connections over time. A compromised enclosure increases the risk of arcing, overheating, and potential fire hazards. Prioritizing a safe environment means ensuring good ventilation, avoiding damp locations, and keeping the panel free of clutter. FuseBoxCheck emphasizes that aging metal devices require vigilance: rust, discoloration, or a buzzing sound are red flags that should not be ignored. If any warning signs appear, treat them as a prompt to pause work and assess with caution. Regular, proactive inspections help maintain electrical reliability and protect household occupants.
Signs your metal fuse box is overdue for inspection
Be alert for visible corrosion on the panel or fuses, a persistent burning odor, warmth around the enclosure, loose or burnt-looking terminals, or fuses that repeatedly blow. If circuits heat up during use or if the panel cover is warped, stop using the affected area and seek a professional evaluation. Early signs of wear may indicate a broader issue with wiring or the service entrance, which can necessitate a larger upgrade. FuseBoxCheck notes that catching these indicators early reduces risk and simplifies potential repairs.
Planning an upgrade: goals and constraints
Upgrading a metal fuse box typically means transitioning to a modern service panel with circuit breakers that are easier to reset and safer to operate. Before starting, assess the home’s electrical load, layout, and available space for a new panel. Check local codes and permit requirements, as upgrading may require inspections and documentation. A well-planned upgrade considers future expansion, compatibility with existing wiring, and the panel’s location for accessibility and safety.
Required safety gear and pre-checks
Always wear personal protective equipment (PPE) such as insulated gloves, safety glasses, and closed-toe shoes. Ensure you have a stable work area with clear lighting and no moisture. Verify the main power is de-energized before touching any components, and keep a current schematic or photos of the wiring for reference. If you find damaged insulation, melted conductors, or signs of arcing, avoid any handling and contact a licensed electrician immediately.

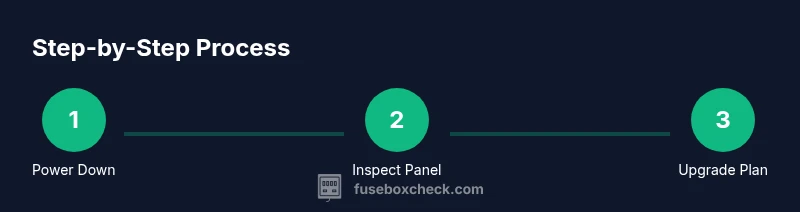

Step-by-step overview for a safe inspection
This overview gives you the high-level flow: (1) confirm the main disconnect is off and the area is dry, (2) remove the panel cover with insulated tools, (3) inspect for corrosion, bent terminals, or burnt areas, (4) document circuits and fuses, (5) test for residual voltage with non-contact testers, (6) decide on upgrade needs, (7) plan the new panel configuration, and (8) reassemble and test after completion. Each step reduces risk and informs the upgrade path. Remember to consult code requirements and avoid hazardous work if you’re unsure.
Basic testing with a multimeter (voltage, continuity, resistance)
Use a multimeter to verify voltage on accessible conductors only after ensuring the panel is safely de-energized. Check continuity on any suspected open circuits and confirm there are no stray currents when the cover is removed. If readings are abnormal or you’re unsure how to interpret them, pause and seek professional guidance. Safety note: never test live components with bare hands and always follow manufacturer instructions for your meter.
Upgrading to modern breakers and service panels
A proper upgrade typically involves replacing the metal fuse box with a new service panel and circuit breakers sized for the home’s load. The process should ensure correct bus bars, grounding, and bonding per code. Plan for a secure installation, sufficient spare spaces, and compatibility with existing wiring. Some homes require service feeder upgrades, which may necessitate utility coordination and permits. The goal is a safer, code-compliant panel that is easier to operate and maintain.
Maintenance, cleaning, and long-term care
After an upgrade or inspection, keep the panel clean and dry, periodically inspect for signs of moisture or corrosion, and ensure connections remain tight (without over-tightening). Schedule periodic checks, especially after major electrical work or environmental changes (like humidity). Document inspections and maintenance actions so future work is informed and efficient. Regular care helps prevent surprises and prolongs panel life.
Common mistakes to avoid and how to prevent them
Avoid underestimating risk by trying to bypass safety features or work on a live panel. Do not rush to replace components without proper identification of the panel type and compatibility. Never mix old fuses with new breakers, and avoid overloading circuits during testing. Finally, avoid DIY upgrades that require a permit or electrical code compliance—these tasks benefit from professional oversight.
When to call a professional and what to expect
If you encounter significant corrosion, damaged insulation, burnt terminals, or if upgrading requires a service entrance upgrade, contact a licensed electrician. A pro will perform a code-compliant upgrade, verify grounding, obtain necessary permits, and perform final tests to ensure safety. Expect a detailed assessment, a written scope of work, and a clear explanation of costs and timelines.
Next steps and resources
Review the findings from your inspection, decide on upgrade options, and schedule any necessary permits or utility coordination. Use official code references and reputable guides to inform your decisions, and keep a log of all changes for future maintenance. For ongoing safety, align your plan with local regulations and professional recommendations.
Tools & Materials
- Insulated screwdriver set(Phillips #2 and flat-head; insulated to at least 1000V)
- Non-contact voltage tester(To verify dead circuits without contact)
- Digital multimeter(Prefer auto-ranging with AC/DC voltage and continuity tests)
- Insulated needle-nose pliers(For careful manipulation of conductors without slip)
- Flashlight or headlamp(Bright, hands-free lighting for dim basements)
- Personal protective equipment (PPE)(Safety glasses, work gloves, long sleeves)
- Panel upgrade kit or new metal service panel(Only if you are actively upgrading; check compatibility)
Steps
Estimated time: 2-4 hours
- 1
Power down and verify dead
Locate the main disconnect and switch it to off. Use a non-contact tester to verify there is no live voltage on the panel before touching any components. This step reduces the risk of electric shock during inspection.
Tip: Lockout/tagout the main disconnect if multiple people may access the area. - 2
Remove the panel cover safely
With insulated tools, remove the panel cover to expose the interior. Keep the cover oriented so you know which wires belong to which circuit and avoid disturbing live connections more than necessary.
Tip: Take a photo from multiple angles before removing parts for reference. - 3
Inspect exterior and interior for damage
Look for rust, corrosion, melted insulation, loose screws, or burnt odors. Document any signs of wear and avoid touching corroded areas. Corrosion can indicate moisture ingress or aging components that require replacement.
Tip: If you see melted insulation or scorching, stop and consult a professional. - 4
Identify circuits and fuse terminals
Map each fuse or breaker to its corresponding circuit. Note ratings and any mismatches between fuse types and wires. This helps in planning a safe upgrade path and prevents miswiring.
Tip: Label each circuit clearly for future maintenance. - 5
Test for residual voltage and continuity
Use a multimeter to check for continuity on suspected open paths only after confirming no voltage. Respect safety practices and avoid bypassing protective devices.
Tip: Do not test live parts; never bypass a fuse or breaker as a shortcut. - 6
Decide on upgrade strategy
Based on findings, determine whether to repair, replace, or upgrade to a modern service panel. Consider load capacity, space, and future electrical needs.
Tip: Consult local codes and assess if a service entrance upgrade is required. - 7
Plan the upgrade and order parts
Choose a compatible panel, breakers, and grounding provisions. Ensure the panel has adequate spaces and correct rating for your service. Prepare permits if required by local authorities.
Tip: Prepare a clear bill of materials and timeline before starting work. - 8
Reassemble, re-energize, and test
Install the new panel or components, re-seat all connections, and re-energize safely. Test each circuit for proper operation and verify grounding.
Tip: Perform a final walk-through and document results for future maintenance.
Your Questions Answered
What is a metal fuse box?
A metal fuse box is an older electrical panel that uses fuses to protect circuits. It is enclosed in metal, and requires periodic inspection for corrosion and overheating. Modern homes often use service panels with circuit breakers.
A metal fuse box is an older panel with fuses protecting circuits. It’s metal and needs periodic inspection for rust and overheating.
Why upgrade to breakers?
Upgrading to circuit breakers provides easier reset, clearer indication of a fault, and generally improved safety. Breakers can be more reliable and safer to reset than fuses, and modern panels support future expansion.
Upgrading to breakers is safer and easier to reset, and helps with future expansion.
Can I replace fuses myself?
Replacing fuses involves exposed live components and risks. If you’re not trained, avoid handling and hire a licensed electrician for any fuse box work to ensure safety and code compliance.
Replacing a fuse box is dangerous; hire a licensed electrician for safety and code compliance.
Are permits required for upgrading?
Upgrading a fuse box typically requires permits and inspections by local authorities. Check with your city or county building department to understand requirements and scheduling.
Permits are usually required; contact your local building department to learn the steps.
How can I tell if corrosion is present?
Look for rust, staining, powdery residue, or overheating smells around the panel. If corrosion is present, stop work and consult a professional, as wiring safety may be compromised.
Rust or scorching is a red flag; get professional help if you see corrosion.
What tools are essential for inspection?
A basic safety kit includes an insulated screwdriver set, non-contact voltage tester, digital multimeter, and PPE. These tools help you assess safety without risking shock.
Insulated tools, a voltage tester, a multimeter, and PPE are essential.
Watch Video
Highlights
- Inspect safely before touching live components.
- Look for corrosion, overheating signs, and loose connections.
- Upgrade to breakers when signs appear or after code updates.
- Consult a licensed electrician for high-risk tasks.
- Document findings and plan next steps.
