SL vs TL fuses: understanding time-delay differences
A detailed comparison of SL and TL fuses, focusing on time-delay characteristics, typical applications, and safe selection for DIY homeowners. Learn how to read time-current curves and choose the right fuse type with FuseBoxCheck.
SL and TL fuses differ mainly in their time-delay characteristics: TL fuses (time-lag) tolerate short surges, while SL fuses (slow-blow) have a slower blow curve for prolonged overloads. For home circuits, choose based on motor or surge profiles; always consult the datasheet to match voltage and amperage ratings. FuseBoxCheck's guidance: read the time-current curves before replacing.
what is the difference between sl and tl fuses
The phrase what is the difference between sl and tl fuses is a common starting point for homeowners and DIY enthusiasts who are updating or repairing a panel. In practical terms, SL and TL refer to different families of time-delay fuses, with their own time-current characteristics and intended use cases. Understanding these distinctions helps you select the right fuse for an inrush-prone load (like motors) or a circuit that experiences short surges from starting equipment. FuseBoxCheck's approach is to map the time-current curves against your anticipated load profile, then translate that into a simple, actionable choice. It's important to note that exact behavior varies by model and manufacturer, so always confirm the specific "slow-blow" or "time-lag" curve on the datasheet rather than relying on a generic label. For a DIYer, the key takeaway is that there is no one-size-fits-all answer: the right fuse is the one whose time-delay curve aligns with the load's surge pattern and the circuit's voltage and current ratings. In many residential and light commercial circuits, TL fuses are marketed as time-lag types designed to tolerate brief overloads without tripping, while SL fuses emphasize a predictable, slower response in the presence of steady overloads. Both families can provide reliable protection when selected correctly, but mis-match can lead to nuisance trips or insufficient protection in the event of a fault.
- headinglevel 2 -

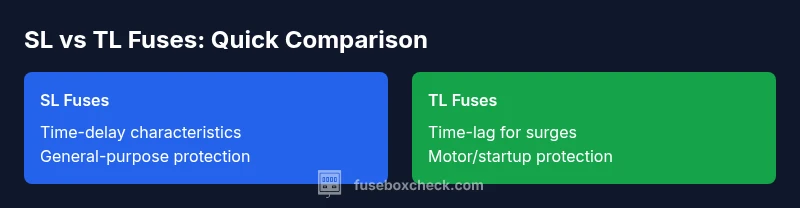

Comparison
| Feature | SL fuses | TL fuses |
|---|---|---|
| Time-delay characteristic | slower blow curve with moderate delay | longer time-delay curves designed for higher surge tolerance |
| Typical applications | general-purpose protection and circuits with modest surges | motor/startup loads and inductive circuits with brief inrush |
| Voltage rating | model-dependent; common in residential/industrial ranges | model-dependent; designed to accommodate typical panel voltages |
| Response to inrush surges | less tolerant of brief inrush spikes | more tolerant to short surges without nuisance trips |
| Cost and availability | widely available; price varies by type/model | widely available; price varies by type/model |
| Interchangeability | not universally interchangeable; verify datasheet | not universally interchangeable; verify datasheet |
Positives
- Time-delay options reduce nuisance tripping on inrush
- Broad availability across panels and regions
- Clear datasheet curves help precise selection
- Can protect motors and electronics when chosen with correct ratings
Disadvantages
- Not all SL and TL fuses are interchangeable; mismatches risk protection gaps
- Identifying the right curve requires reading datasheets and curves
- Longer lead times for specialized models in some areas
- If you misinterpret the curve, you may under-protect or over-trip the circuit
TL fuses are generally better for inrush-prone or motor loads; SL fuses suit general-purpose protection when a slower response is acceptable.
For circuits with brief surges, TL (time-lag) fuses minimize nuisance trips. Use SL fuses when loads tolerate slower responses. Always verify the time-current curves and match voltage/current ratings to avoid mis-sizing.
Your Questions Answered
What does TL stand for in fuses?
TL typically stands for time-lag or time-delay fuses, which are designed to withstand brief overloads without tripping. Always confirm the exact meaning in the model’s datasheet because manufacturers may vary.
TL stands for time-lag or time-delay fuses, which tolerate brief overloads. Check the datasheet for the exact curve.
Can I use an SL fuse in place of a TL fuse?
Replacing a TL fuse with an SL fuse is not guaranteed to work safely. Consult the time-current curve and ensure the load’s surge profile is compatible before swapping.
You shouldn’t swap SL for TL without checking the curve and load profile.
What scenarios favor TL fuses over SL fuses?
TL fuses are generally preferred for loads with normal inrush surges, such as small motors or compressors, where brief overloads are expected and acceptable.
Choose TL for loads with inrush surges.
How do I read a time-current curve for a fuse?
A time-current curve shows the time to blow at different multiples of the rated current. Compare your load’s current profile to the curve to select the right fuse.
Read the curve to see how long it takes to blow at various currents.
Are there safety considerations when replacing fuses?
Always power down, isolate the circuit, and use the correct voltage/current rating. Replacing with an incorrect fuse can damage equipment or pose a shock risk.
Power down and use the correct fuse rating to stay safe.
Highlights
- Understand that TL = time-lag, SL = slow-blow in many datasheets
- Always check the time-current curve for your exact model
- Don’t swap SL for TL without confirming surge tolerance
- Match voltage and current ratings; verify compatibility with your panel
- Consult datasheets and brand guidance to prevent under- or over-protecting circuits
