How to replace fuse box with circuit breaker safely
Comprehensive, practical guidance on upgrading a fuse box to a circuit breaker panel, including safety checks, planning, tools, step-by-step actions, and when to hire a pro. From FuseBoxCheck, your trusted source for home electrical care.
Upgrading from a fuse box to a circuit breaker panel is a common safety improvement that reduces nuisance fuse trips and improves protection. This how-to covers planning, safety prerequisites, and when to call a licensed electrician. Because service panel work involves high voltage, local code compliance and proper permits are essential—fail-safe installation hinges on using the correct panel and ratings.
Why replacing a fuse box with a circuit breaker is common practice
In modern homes, upgrading from fuses to a circuit breaker panel is widely recommended for reliability, safety, and future-proofing. Circuit breakers provide automatic fault interruption and easier circuit management, which reduces fire risk and simplifies troubleshooting. The switch from fuses to breakers also aligns with current electrical codes, which often require service panels rated for today loads. According to FuseBoxCheck, many homes built before the 1990s still rely on fuse boxes that lack clear labeling and modern trip curves. Replacing the panel with a circuit breaker increases inspectability and compatibility with AFCI/GFCI devices, improving overall home electrical safety. For homeowners and DIY enthusiasts, this upgrade is a meaningful step toward long-term reliability, but it remains a project with high safety stakes and local code implications.
Safety prerequisites and legal considerations
Before you begin any work on the service panel, verify whether your project needs permits or an inspection in your locality. In many regions, upgrading a service panel requires a licensed electrician, a formal plan, and a verification by the electrical inspector. Personal protective equipment such as gloves and safety glasses should be worn at all times, and lockout/tagout procedures help prevent accidental energization. If you are renting or residing in a property with shared electrical service, obtain written authorization from the building manager. FuseBoxCheck emphasizes that legal compliance and professional oversight are critical for this kind of upgrade, and attempting it without proper credentials can lead to code violations or safety hazards.
Understanding fuse boxes and circuit breakers
A fuse box uses replaceable fuses to interrupt current when overloads occur, which can be less reliable and require more frequent maintenance. A circuit breaker panel uses switches that trip automatically, offering faster fault isolation and easier reset after an outage. Modern panels support AFCI and GFCI devices that protect against arc faults and ground faults, improving overall branch circuit safety. The service rating of your home (in amperes) determines what panel size and breaker types you need. As FuseBoxCheck notes, many older installations do not provide adequate protection against modern loads, making a panel upgrade a prudent choice for safety and power management.
Planning the upgrade: scope, budget, and timing
Start with a realistic scope: will you replace only the panel, or also upgrade service entry conductors and the main disconnect? Assess the condition of the existing conduit, wiring, and grounding path. Budget for materials, labor, and potential permits or inspections, and factor in lead times for panel availability. Create a timeline that minimizes downtime for essential circuits, and communicate with all household members about temporary power loss during the upgrade. FuseBoxCheck highlights the importance of a well-planned project to avoid surprises and ensure compliance with current electrical codes.
Tools, materials, and workspace setup
Having the right tools and a clean workspace reduces risk. The tools list typically includes non-contact voltage testers, insulated screwdrivers, wire strippers, cable connectors, and appropriate PPE. Ensure the work area is dry, well-lit, and free of clutter. Verify that you have a circuit breaker panel kit that matches your service rating and is compatible with your main disconnect. This section lays the groundwork for a safer, smoother upgrade, and points you toward the formal tools and materials checklist in the dedicated Tools & Materials block.
Step-by-step overview before you start
A successful upgrade begins with a methodical plan: confirm the panel type, identify all circuits, and ensure a safe, de-energized environment. Double-check permit and code requirements, review the panel labeling, and decide whether you will relocate or reuse the existing space. If any part of the plan involves changing service size or rerouting conductors, professional involvement is advised. A clear, written plan reduces errors and helps you document the upgrade for future maintenance.
Common pitfalls and safety precautions
Common mistakes include attempting work while the panel is live, mislabeling breakers, or mixing conductors from different circuits in a single bus. Ignoring grounding requirements or not testing post-installation can leave the system unsafe. Always verify power has been removed at the main disconnect before touching any wiring, and never bypass safety devices. FuseBoxCheck advises engaging a licensed electrician for tasks that involve service entry conductors, main disconnects, or large-scale rewiring to ensure compliance and safety.
Post-upgrade checks and documentation
After installation, perform a thorough inspection of all connections, labeling, and the operation of each breaker. Restore power gradually and test critical circuits with a tester to confirm proper function. Document the changes, including panel model, amperage rating, and the wiring configuration for future reference. Keep permits and inspection records on file, and provide copies to household members or property managers if applicable.
Tools & Materials
- Non-contact voltage tester(Essential to verify power is off before touching conductors)
- Insulated screwdriver set (flat and Phillips)(For panel screws and terminations)
- Voltage tester/multimeter(Test circuits after installation)
- Wire strippers and needle-nose pliers(Prepare conductors and make clean terminations)
- Electrical gloves and safety glasses(Personal protection during work)
- Cable connectors, wire nuts, and electrical tape(Secure and label splices and terminations)
- New circuit breaker panel compatible with service rating(Match amperage and type to your service)
- Panel cover and knockout plugs(Finish and seal the panel after wiring)
- Lockout/tagout kit(Prevent accidental energizing during work)
- Permit application (if required)(Check local rules and involve inspector)

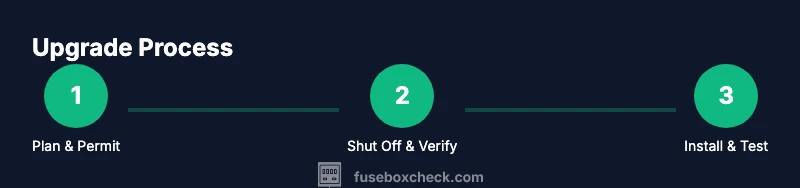

Steps
Estimated time: 2-6 hours
- 1
Assess and plan safety
Review the home’s service rating, panel type, and the scope of the upgrade. Confirm that you have the necessary permits or approvals and that wiring routes won’t require invasive rerouting. Begin with a written plan and a clear sequence of tasks.
Tip: Document every decision point to simplify future maintenance and inspections. - 2
Shut off power and verify absence of voltage
Locate the main service disconnect and switch it to the OFF position. Use a voltage tester to confirm there is no energization on any feeder or branch circuit in the panel. Do not proceed if voltage is detected.
Tip: Lockout/tagout the main shutoff to prevent accidental energization. - 3
Open panel and inspect labeling
Remove the panel cover carefully and examine the labeling for circuits and service rating. Take photos for documentation and ensure you can identify which breakers control which areas of the home.
Tip: If labeling is missing or unclear, create a clear map before continuing. - 4
Determine replacement strategy
Decide whether to upgrade within the same enclosure or replace the panel entirely. If the service rating or physical space is inadequate, plan for a full panel replacement with compatible bus bars and main disconnect.
Tip: Avoid mixing old conductors with new hardware; plan a clean, compatible configuration. - 5
Prepare the new panel and mounting location
Inspect the mounting surface for solid support and accessibility. Assemble the new panel on a clean, dry surface and prepare mounting hardware before moving components.
Tip: Label entry points and ensure clearance for future expansion. - 6
Mount the new panel
Secure the new panel to the wall or frame, ensuring it is plumb and level. Do not bend or force panels into place; align knockouts with raceways and conduits.
Tip: Check for proper clearance around the panel for future service work. - 7
Install main disconnect and branch breakers
Install the main disconnect and the required branch breakers according to the panel’s labeling and manufacturer instructions. Ensure all connections are tight and seated fully.
Tip: Follow the manufacturer’s torque specs for terminations. - 8
Reconnect circuits and label comprehensively
Move conductors to their new breakers, securing each connection. Label every breaker clearly to reflect its circuit purpose and location in the home.
Tip: Double-check that no two circuits share a single breaker unless intended. - 9
Install AFCI/GFCI where required
Install arc-fault and ground-fault devices per code requirements in appropriate circuits. Verify compatibility with your panel and ensure proper testing of protection features.
Tip: Use combination devices when possible to reduce panel crowding. - 10
Test, document, and seal the installation
Restore power and run functional tests on critical loads. Document the upgrade details, keep permits and inspection records, and reseal the panel cover. Verify that all circuits energize correctly and remain isolated when switched off.
Tip: Store documentation with home records for future resale or repairs.
Your Questions Answered
Is it legally permissible for a homeowner to replace a fuse box with a circuit breaker?
In many jurisdictions, replacing a service panel requires a licensed electrician and a permit. Always check local codes and obtain approvals before starting. Improper work can lead to fines or unsafe conditions.
Most places require a licensed electrician and a permit for panel upgrades. Always confirm local rules before you begin.
What signs indicate I should upgrade to a circuit breaker panel?
Frequent fuse trips, aging wiring, visible damage, or lack of space for modern breakers are strong indicators. Upgrading improves safety, reliability, and compatibility with AFCI/GFCI devices.
Frequent trips or an outdated panel usually means it’s time to upgrade for safety and reliability.
Can I install a circuit breaker panel myself if I have basic electrical knowledge?
Only if you are licensed or under direct supervision where permitted by local codes. This work involves service conductors and main disconnects that pose serious hazards.
If you’re not a licensed electrician, it’s safer to hire one for this task.
What is the typical cost range for upgrading a fuse box to a circuit breaker panel?
Costs vary by home, panel size, and labor. Expect variability based on local rates, permit needs, and potential service upgrades. Check quotes from licensed electricians for a clear estimate.
Costs vary; get multiple quotes from licensed electricians for a precise range.
Do I need to inform my utility company or obtain inspections after the upgrade?
Yes, many regions require inspection by the local building department and, in some cases, notification to the utility if service conductors are modified. This ensures safety and code compliance.
Expect a building inspection and possible utility notification after the upgrade.
What should I do if the panel location is cramped or the service is undersized?
Cramped spaces or undersized service may require relocating the panel or upgrading service entry conductors. Plan for professional assessment to avoid improper wiring and violations.
If space is tight or service is too small, get a professional evaluation before proceeding.
Watch Video
Highlights
- Plan first, then act with safety and permits in place
- Modern breakers offer better protection and diagnostics
- Labeling and documentation support future maintenance
- Professional involvement is advised for service entry work
- Test thoroughly and maintain compliance records
