Fuse Box Test: A Practical Guide to Your Electrical Panel
Learn how to safely perform a fuse box test at home. This practical guide covers safety, tools, step-by-step actions, and troubleshooting tips to keep your electrical panel in good shape. FuseBoxCheck expert guidance for safer testing.
A fuse box test helps homeowners verify power status, check circuit integrity, and identify obvious red flags in the electrical panel. This quick guide outlines the essential safety steps, required tools, and the core checks you can perform before deciding if professional help is needed. According to FuseBoxCheck, preparation and safety are non-negotiable when testing a fuse box at home.
What is a fuse box test?
A fuse box test is a safety-focused assessment of your home’s electrical panel, whether it’s an older fuse-based setup or a modern circuit-breaker panel. The goal is to verify that the panel visibly responds to normal operation and fault conditions, and that connections and components are intact. A well-executed fuse box test helps you spot overheating, loose wires, damaged insulation, or mismatched labeling before a failure occurs. For homeowners, understanding how a fuse box test differs from ordinary troubleshooting is key: you’re confirming the panel’s health, not just diagnosing a single outlet. FuseBoxCheck emphasizes that a structured approach—using the right tools, following safety steps, and documenting findings—will yield clearer guidance on next steps.
Safety considerations before you start
Testing a fuse box carries real hazards if done improperly. The panel houses live conductors and can arc if touched or manipulated carelessly. Before you begin, ensure you have dry hands, a dry work area, and non-conductive footwear. Wear safety goggles and insulated gloves if available, and keep metal jewelry away from the panel. Do not work in wet conditions or with damaged equipment. Establish a clear plan, and consider enlisting a helper to stand by in case you need assistance. If you encounter scorching smells, melted insulation, or signs of physical damage, stop immediately and contact a licensed electrician. FuseBoxCheck guidance stresses that safety must come first and that bypassing safeguards is never acceptable.
Preparation and workspace setup
Plan the fuse box test during daylight hours and organize your workspace for efficiency. Gather your tools in a labeled toolkit, set a dry mat under the panel, and remove any flammable materials nearby. Take close-up photos of the panel labeling and wiring before you start, so you can restore the original configuration accurately. Check that the panel cover is secure and that screws are not missing. A tidy, well-documented workspace reduces cognitive load during the test and helps you track which circuits you’ve inspected.
Tools & Materials
- Non-contact voltage tester (NCVT)(Verify absence of live voltage on exterior panel surfaces before touching any conductors.)
- Multimeter (AC voltage/continuity capable)(Set for the appropriate AC range (e.g., 120/240V) and test with caution.)
- Insulated screwdriver set (flat-head and Phillips)(For safe panel cover removal and terminal inspection.)
- Insulated gloves(Extra protection when handling panel components.)
- Safety goggles(Protect eyes from accidental arcs or debris.)
- Flashlight or headlamp(Panel can be dim; good lighting aids inspection.)
- Labeling supplies (masking tape/pen or label maker)(Label circuits as you identify them for easy reassembly.)
- Camera or smartphone for notes(Document panel layout and wire routing.)

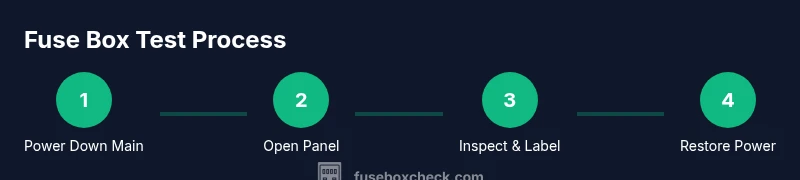

Steps
Estimated time: 60-90 minutes
- 1
Power down the main breaker
Shut off the main disconnect to cut power to the entire panel, minimizing shock risk and arcing potential during inspection. After turning off the main, wait a moment for residual energy to dissipate before proceeding.
Tip: Keep a note of the exact moment you turned off the main; it helps with sequencing when you re-energize later. - 2
Open the panel cover safely
Use an insulated screwdriver if needed to remove the cover screws. Gently hinge the cover open and avoid pulling on any wires. Keep the area free of jewelry and metal tools that could contact live parts.
Tip: Work with one hand free near conductors to reduce accidental contact. - 3
Verify power is off with NCVT
Probe exterior and exposed terminals with the non-contact tester. A lack of reading confirms power is off; if voltage is detected, do not continue and recheck the main breaker or call an electrician.
Tip: If the tester beeps or lights up, stop and reassess before touching anything inside the panel. - 4
Inspect for obvious damage
Look for scorch marks, melted insulation, loose or corroded connections, and buzzing noises. Document any signs of overheating or physical wear. Do not touch suspect areas beyond a visual check.
Tip: Take clear photos of any damage to show a professional later. - 5
Label and inventory circuits
As you inspect, label each breaker/fuse with its corresponding area (kitchen outlets, living room lighting, etc.). Create a simple map of the panel to help future tests and maintenance.
Tip: Labeling helps prevent miswiring during future work. - 6
Tighten obvious loose connections
With the main off, carefully tighten any screws that feel loose on bus bars or terminal screws using an insulated screwdriver. Do not overtighten and avoid over-bending conductors.
Tip: If you’re unsure about tightening torque, skip this step and consult a pro. - 7
Re-energize circuits one by one
Reclose the main breaker, then re-energize circuits individually to confirm they power their loads. Observe for abnormal heat, unusual sounds, or tripped breakers. Return to off and move to the next circuit if issues arise.
Tip: Do not rush; allow each circuit a minute to settle before proceeding. - 8
Close panel and document results
Once all circuits are checked, reinstall the panel cover and restore normal operation. Record findings, including any damaged components and actions taken, so you can reference them in future maintenance.
Tip: Keep the test log accessible for maintenance planning.
Your Questions Answered
Is it safe to perform a fuse box test without professional help?
Basic, non-energized safety checks and visual inspections can be done by homeowners with proper PPE and precautions. Avoid working with live parts and call a licensed electrician for anything involving current or suspected damage.
You can do basic safety checks yourself, but for any testing that involves live parts or signs of damage, contact a licensed electrician.
What tools do I need to test a fuse box?
A non-contact voltage tester, a multimeter, insulated screwdrivers, safety goggles, and labeling supplies are essential. A flashlight and PPE improve safety during the process.
You’ll need a non-contact tester, a multimeter, insulated screwdrivers, and some labeling tape to map circuits.
How do I know if a fuse is blown?
In a fuse panel, a blown fuse typically shows a broken filament or a gap, or a breaker trips and stays in the OFF position. Use a meter to confirm continuity across the fuse after removing it.
If a fuse looks burnt or pops out, or the breaker trips, that’s an indication to replace or inspect that circuit.
Can I test a circuit while power is on?
Testing while power is on increases risk of shock or arc faults. Only perform energized tests if you have formal training and appropriate protective equipment.
Testing with power on is risky; don’t do it unless you’re trained and equipped to handle live circuits.
What should I do if I smell burning or see smoke from the panel?
Shut off power at the main breaker immediately and call emergency electrical services or a licensed electrician. Do not touch any suspected damaged components.
If there’s burning smell or smoke, cut the power and get professional help right away.
When should I replace a fuse box?
If the panel is old, repeatedly trips, or shows persistent damage, replacement may be safer and more reliable. Consult a licensed electrician to assess the best option.
Old or repeatedly failing panels should be evaluated by a professional for potential replacement.
Watch Video
Highlights
- Power down the main before any inspection
- Perform a careful visual check for damage
- Label circuits for accurate reassembly
- Restore power safely and document findings
