Learn how to check fuse box for parasitic draw to protect your electrical system. This quick guide explains a safe, practical method using a clamp meter or multimeter, isolating circuits, and documenting readings. Follow the steps to identify culprit loads and decide if professional help is needed. This method reduces surprises at the panel and keeps you in control.

Understanding parasitic draw and why it matters

Parasitic draw, or standby load, is a small but persistent electrical current that keeps flowing even when devices are switched off. In homes with smart devices, always-on networks, and energy-management gear, these loads can quietly add up over a billing cycle. According to FuseBoxCheck, understanding where these draws come from is the first step toward safer and more efficient electrical care. The goal is to quantify the drain, identify likely culprits, and decide whether a DIY fix is feasible or a licensed electrician is needed. Recognizing and quantifying standby loads helps you manage energy costs and reduce wear on your electrical system.

Common sources of parasitic draw in modern homes

Most standby loads originate from devices designed to stay ready for quick use. Typical culprits include: smart home hubs and voice assistants left plugged in; network gear like routers and modems; smart TVs and game consoles with instant-on modes; security cameras and DVR/NVR systems; digital clocks and USB charging stations; and newer devices with continuous USB-powered adapters. FuseBoxCheck Analysis, 2026 suggests that the cumulative effect of these loads can be noticeable even when individual devices seem harmless. The takeaway: look for gear that remains energized even when you think nothing is in use. Identifying these sources is the first actionable step toward reducing unnecessary energy use.

Safety basics and prep before testing

Testing a fuse box requires respect for electrical safety. Wear insulated gloves and eye protection, keep your workspace dry, and never bypass safety features. If you ever smell burning or hear buzzing, stop and call a licensed electrician. Before you begin, identify the main service point and read the panel labeling so you know which circuits correspond to rooms and appliances in your home. Always have a plan to shut power quickly if something goes wrong. Remember, working near a live panel carries risk; if you’re unsure, err on the side of caution and seek professional help.

Tools and gadgets you’ll need

Clamp meter (preferred) or a high-quality digital multimeter with a current clamp option; ensure it can handle the service amperage.
Non-contact voltage tester for quick verification of live conductors.
Insulated screwdriver, flashlight, and a notepad for logging readings.
Optional: a circuit-labeling kit to keep track of which breakers control which loads.
Personal protective equipment: gloves rated for electrical work and safety glasses.

Having the right tools reduces guesswork and makes measurements reliable. If you lack a clamp meter, a high-quality multimeter with a clamp accessory is the next best option.

How meters help you measure the draw (conceptual overview)

A clamp meter measures current by sensing the magnetic field around a conductor. When you place it around a single main feeder, it tells you how much current is flowing into the panel. With all nonessential loads off, any measurable current indicates a parasitic draw somewhere in the branch circuits. A multimeter can verify voltage levels on individual circuits or confirm that a suspected device is powered down, but the clamp meter is the simplest first step. The goal is to establish a baseline reading and then drill down to the culprit.

Systematic circuit isolation to locate culprits

Start by turning off the main power and then turning it back on to reset the panel after safety checks. With the main energized and all nonessential loads off, observe the main feeder reading. If you see current, begin turning off branch circuits one by one, pausing between steps to re-check the feeder. When the feeder reading drops to near zero, you’ve narrowed the culprit to the last-off circuit. Inspect devices on that circuit and unplug or switch them off to test again. This method helps you isolate the exact source without risking the whole home.

Interpreting readings and next steps

Document readings carefully and compare against your baseline. If the draw disappears when you deactivate a particular device or circuit, that device or circuit likely contributes to the parasitic load. For devices known to be in standby by design, consider power-management strategies (smart outlets, scheduling, or replacing faulty adapters). If you still can’t locate a culprit or you notice a heavy ongoing draw, consult a licensed electrician. FuseBoxCheck's guidance is to escalate when readings are uncertain or dangerous. The aim is to minimize waste while maintaining safety and reliability.

Final thoughts on safety and action

Parasitic draw is common but solvable with a structured approach. By testing methodically, you gain insight into where energy is leaking and how to reduce it. Keep a detailed log of readings and changes, and always adhere to safe-handling practices around the panel. The FuseBoxCheck team recommends seeking professional help when in doubt, especially if you encounter signs of damage or overheating in the panel.

Tools & Materials

Clamp meter (with true RMS capability)(Capable of measuring AC current for the service entrance; choose a model that fits around a single conductor without spanning multiple cables)
Digital multimeter with current clamp option(Use if a dedicated clamp meter is not available; ensure it supports the expected voltage/current range)
Non-contact voltage tester(Quickly verify if a conductor is live without direct contact)
Insulated screwdriver(Use for panel work; insulated to minimize shock risk)
Insulating gloves and safety glasses(Personal protective equipment for electrical work)
Notepad or digital log(Record baseline readings and changes for analysis)

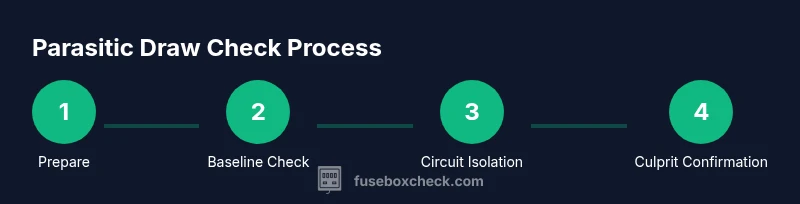

Steps

Estimated time: 60-90 minutes

1
Prepare workspace and safety gear
Gather all tools, put on protective gear, and ensure the area around the panel is dry and uncluttered. Confirm you know the location of the main shutoff and have a clear plan if you need to cut power. This preparation minimizes risk and keeps measurements accurate.
Tip: Label anything you disconnect to help reassemble later.
2
Identify the main service point and power status
Locate the main service disconnect and verify the panel labeling. If you’re not sure about the main switch, consult your panel documentation or contact a professional. Confirm power is accessible and safe to work with before opening the door.
Tip: Use a non-contact tester to confirm zero voltage before touching terminals.
3
Set up meters and verify calibration
Turn on your clamp meter and/or multimeter, select the correct AC current range, and confirm that the readings are stable. Calibrate or reset the device if your model requires it before measuring. Proper setup improves reliability of your results.
Tip: Do a quick dry run on a known live circuit to confirm the meter reads correctly.
4
Take a baseline main-feed measurement with loads off
With the panel door closed and access maintained, place the clamp around the main feed conductor and read the current. Ensure all nonessential loads are physically off or unplugged. Record this baseline reading as your reference point.
Tip: If you can’t get a clean reading, double-check that only one feeder is inside the clamp.
5
Isolate branch circuits one by one
Turn off branch circuits one at a time, pausing to re-check the main feeder reading after each switch. When the feeder current drops near zero, you’ve identified a likely culprit circuit. Move to inspect devices on that circuit next.
Tip: Keep a running map of which breakers you tested and the observed readings.
6
Inspect devices on the suspect circuit
Unplug or switch off devices on the identified circuit and re-measure. If the draw disappears, the culprit is likely one of those devices or a quick standby feature. Re-test with the device reconnected to confirm.
Tip: Start with devices known to have standby modes (routers, DVRs, smart hubs).
7
Document results and compare
Log the baseline, the measurements after isolations, and any device changes. Compare readings to see how much the parasitic draw was reduced. Use this record to guide further actions like replacing faulty adapters or adjusting power-management settings.
Tip: Take photos of readings and the panel labeling for future reference.
8
Restore power and plan next steps
Return all breakers to their original positions, re-power the system, and review your findings. If you can’t locate a culprit or if a device repeatedly draws power, plan a professional assessment. Document your results for the electrician.
Tip: If in doubt about any step, pause and seek professional guidance.

Pro Tip: Label circuits as you test to keep track of which breakers control which devices.

Warning: Never bypass safety features or work with the panel powered if you feel uncertain about steps.

Note: Log readings with timestamps and device names for accurate follow-up analysis.

Pro Tip: Prefer a true-RMS clamp meter to handle varying waveforms from smart devices.

Warning: If you detect unusual heat, smells, or burning from the panel, stop immediately and call a pro.

Your Questions Answered

What is parasitic draw and why should I care?

Parasitic draw is a small, continuous electrical load that remains even when devices are off. It can add to your electric bill and influence panel safety. Understanding and limiting it helps protect your wiring and devices.

What is a typical standby load I should expect?

Standby loads vary by device and system, but the goal is to identify any measurable current on the main feed when everything is supposed to be off. There isn’t a single universal number—focus on consistency and reduction.

Can I test parasitic draw without opening the main panel?

Some tests can be done on individual circuits from accessible outlets; however, measuring the main feed gives the clearest picture. For accuracy, use the proper meters and, if needed, consult a pro for the panel side.

Is it safe for a DIYer to check parasitic draw?

With the right tools, precautions, and a calm approach, DIY testing is possible. If you feel unsure at any point, stop and contact a licensed electrician. Safety should always come first.

What if I still can’t locate the culprit?

If isolating circuits doesn’t reveal a clear culprit, there may be a lingering standby device or a complex load arrangement. Document your attempts and seek professional help to avoid panel risks.
