Kancil Fuse Box Guide: Safe DIY Troubleshooting
Master safe, do-it-yourself repair for your Kancil fuse box with expert guidance from FuseBoxCheck. Locate, test, and replace fuses with proper tools and precautions.
By following this guide, you will locate the Kancil fuse box, inspect for blown fuses, safely replace with the correct amperage, and test key circuits. You’ll need basic safety gear and the right fuse types that match the vehicle’s ratings. This process reduces electrical faults while preserving dashboard and lighting functions.
What the Kancil fuse box does and why it matters
According to FuseBoxCheck, the Kancil fuse box is a compact power hub that protects circuits controlling headlights, wipers, horn, and interior electronics. When a fuse blows, it interrupts power to that circuit, preventing wiring damage but also causing the affected function to fail. Understanding its layout helps you troubleshoot without damaging other components. This guide focuses on practical, safe steps to identify, inspect, and replace fuses while preserving the vehicle's electrical system. Keep in mind that working around an automotive electrical system carries risk of shock or short circuits if you rush or skip safety steps.
Common fuse box layouts for Kancil models
Most Kancil models place the fuse box under the hood on the passenger side or behind a glovebox panel for interior routes. Some variants use a second, secondary fuse box for interior accessories. The exact arrangement varies by year and trim, so consult the owner's manual or a labeled lid diagram for your vehicle. Regardless of layout, the same core principles apply: fuses are color-coded by amperage, and each circuit is mapped to a specific function. By recognizing the typical fuse types (ATO/blade fuses in cars of this class), you can safely locate and identify the correct fuse to inspect.
Locating the fuse box: under-hood vs interior
Under-hood fuses protect high-current circuits like the alternator and main power. Interior fuses protect cabin lighting, HVAC, and infotainment. To locate them, turn off the ignition and remove the key, then gently pry open the cover with a non-conductive tool. Use the lid diagram or the owner's manual to match fuse numbers to circuits. If you can't read the diagram, a quick photo can help you map the circuits before you begin.
Understanding fuse ratings, types, and markings
Fuses are rated by amperes (A). A typical Kancil fuse might use 5A, 10A, 15A, 20A, or 30A fuses depending on the circuit. The blade color often indicates the rating, but never rely solely on color—check the printed rating on the fuse body or the manual. Replacing a fuse with a higher rating can let a fault overheat wiring. Always match the original rating exactly and replace any fuse with the same type (low-profile, glass, etc.) as specified by the manufacturer.
Diagnosing a blown fuse: signs, testing, and risk factors
Common signs include sudden loss of a single function (headlights, horn, power windows) or a panel warning. Visual inspection can reveal a melted or darkened metal strip. If you suspect a blown fuse, test with a multimeter set to continuity or resistance and confirm with a replacement fuse that is known good. Do not continue to operate the vehicle with a suspected short, because repeated blows can damage wiring or blow other fuses.
Replacing a fuse safely: best practices for Kancil
Select the correct amperage rating and replace only that fuse. Use a fuse puller or insulated pliers to extract the fuse, and avoid touching the metal contacts with bare skin. After insertion, gently reseat the fuse until it sits snug. If the fuse continues to blow, stop and reassess the circuit; repeated failures may indicate a short or load issue requiring professional diagnosis. Always work on a dry surface and away from moisture.
After replacement: testing, resetting, and preventing future failures
Reattach the battery if you disconnected it, reconnect the ground, and start the engine to test the circuit. Check the affected components for proper function, and listen for unusual noises or smells. If things operate normally for 10-15 minutes of driving, you can label the fuse and keep notes for the next use.
Common mistakes to avoid and maintenance tips
Do not bypass fuses with wire, do not use mismatched amperage, and do not ignore a fuse that repeatedly blows. Keep a small spare fuse kit in the glovebox; label circuits with tape and a marker. Periodically inspect fuses for signs of wear, corrosion, or loose connections, and replace aging fuse blocks per the owner's manual.
When to seek professional help and what to expect
Some electrical issues require diagnostic tools and expertise beyond a DIY repair. If a fuse keeps blowing after correct replacement, or if you smell burning plastic or see melted components, stop and arrange a professional inspection. A qualified technician can trace shorts, test wiring harnesses, and replace the fuse box if necessary. The FuseBoxCheck team recommends consulting a licensed automotive electrician for persistent problems to ensure safety and reliability.
Tools & Materials
- Replacement fuses (assorted amperages)(Match the fuse rating printed on the fuse and in the owner's manual)
- Fuse puller or insulated pliers(Safely extract fuses without touching blades)
- Multimeter (DC voltage or continuity tester)(Use to confirm circuit continuity or open fuse)
- Insulated gloves(Keep hands safe when handling under-hood components)
- Safety glasses(Protect eyes from sparks or debris)
- Owner's manual or fuse box diagram(Locate fuse layout and amperage)
- Flashlight or headlamp(Improve visibility in engine bay or glovebox)
- Labeling tape and marker(Label replaced fuses and circuits)
- Non-conductive mat or tray(Keeps components from rolling and cushions work area)

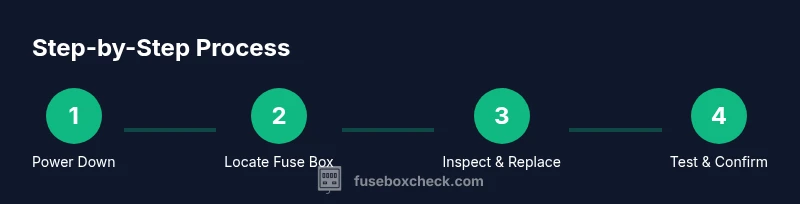

Steps
Estimated time: 30-45 minutes
- 1
Power down and prepare
Shut off the engine, remove the key, apply the parking brake, and if possible disconnect the negative battery terminal to reduce the risk of shock or short circuits. Clear your workspace and organize tools so you can work calmly.
Tip: Use insulated gloves when handling the battery or metal contacts. - 2
Open fuse box cover and locate the correct fuse
Remove the fuse box cover and consult the diagram or manual to identify the fuse associated with the affected circuit. Take a photo of the map for reference while you work and keep your fuse index organized.
Tip: Double-check the circuit name before pulling a fuse to avoid unnecessary changes. - 3
Inspect the fuse visually
Look for a blown fuse with a broken metallic strip or a white/opaque appearance. If you’re unsure, move to testing with a multimeter rather than guessing.
Tip: If the fuse looks intact but the circuit fails, test with a meter rather than swapping blindly. - 4
Test the fuse with a multimeter
Set the multimeter to continuity or resistance, and check across the fuse terminals. A non-spirited result or infinite resistance means the fuse is blown and needs replacement.
Tip: Ensure the battery is disconnected and the fuse is out of the circuit before testing. - 5
Choose and prepare the replacement fuse
Select a fuse with the exact amperage rating specified for the circuit. Do not substitute higher ratings to avoid risking wiring damage.
Tip: If you don’t have the exact rating, postpone the replacement and consult the manual. - 6
Install the new fuse
Insert the fuse firmly into its slot until it seats snugly. Avoid touching the metal contacts with bare skin and use the fuse puller if possible.
Tip: Gently reseat with a slight twist if needed to ensure full contact. - 7
Reconnect the battery and test the circuit
Reconnect the negative terminal if you disconnected it, then start the car and operate the affected function to verify normal operation.
Tip: Listen for any unusual sounds and check for abnormal lights or smells during the test. - 8
Document changes
Label the replaced fuse and note the date and circuit it protects for future reference. Maintain a simple log in your car manual or notes app.
Tip: A quick map update saves time on future checks and repairs.
Your Questions Answered
How can I identify the correct fuse for a specific system in the Kancil fuse box?
Consult the owner's manual diagram; fuse labels on the box lid show circuit names. If labels fade, compare the circuit’s power needs and amperage to the fuse rating. When in doubt, trace the circuit with a meter and replace with the matching fuse.
Check the fuse map in your manual; if labels are unclear, test with a meter and replace with the exact amperage specified.
What amperage should I use when replacing a blown fuse?
Use the exact amperage rating printed for that circuit in the manual. Do not substitute a higher rating, as it can allow overheating and wiring damage.
Always match the exact amperage rating; never upgrade the fuse to a higher value to 'fix' a short.
Is it safe to test fuses without disconnecting the battery?
It’s safer to disconnect the negative battery terminal before inspecting or testing, especially inside the engine bay, to avoid short circuits.
Disconnect the negative battery lead before handling fuses to reduce shock risk.
What should I do if a fuse keeps blowing after replacement?
Repeated fuse blows indicate an underlying fault such as a short or overload. Stop and have the circuit diagnosed by a professional to prevent wiring damage.
If a fuse keeps blowing, stop and get a professional diagnosis to avoid further damage.
Can I use a fuse diagram from another model for the Kancil?
Use only the Kancil fuse diagram. Other model diagrams may mislead you to the wrong fuse and create safety risks.
Stick to the Kancil fuse diagram to prevent wrong replacements.
What is a quick time estimate for checking a fuse box in a typical session?
With the right tools and a clear diagram, the process often takes about 15-30 minutes per circuit, but total time depends on complexity.
Most checks take about 15 to 30 minutes per circuit, depending on access and layout.
Watch Video
Highlights
- Identify the correct fuse rating before replacement.
- Power down and protect yourself before handling fuses.
- Replace only with the exact amperage rating.
- Test circuits after replacement to confirm restoration.
